Product Summary

351C, 351W, HEI / Male Cap Type, Magnetic Trigger Style

    Key Specs

    D-57-23
    MFG. Part #D7131710
    BrandPerTronix
    Cap TypeHEI / Male
    CARB EO#

    Need To Know

    This Product Will Ship Free

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

    PerTronix D7131710 Details

    Plug n play billet distributors are designed for maximum ignition performance and easy installation all at a price that you can afford. Replace your outdated points or electronic distributor with this performance proven distributor and which features the patented Ignitor III electronics and a CNC machined 6061 T-6 polished billet housing.

    Features
    • Integrated patented Ignitor III technology with adaptive dwell control.
    • Cobalt magnets and Hall Effect trigger for stable timing and precise spark distribution.
    • A powerful micro controller with adaptive dwell algorithms constantly adjust the dwell angle to maintain peak energy throughout the entire RPM range for increased high and low RPM performance.
    • Ignitor III compensates for inherent electronic delay by adjusting the spark timing throughout the entire RPM range.
    • Synchronized peak current and spark timing reduces heat build-up.
    • Precision CNC machined billet housings are polished to a high luster.
    • Tempered distributor shafts have low torsion displacement for accurate timing and longer life.
    • Upper ball bearing and extra long oil impregnated bronze lower bushing work together to reduce friction and high RPM vibration.
    • Precision stamped advance weights eliminate erratic timing.
    • Adjustable mechanical advance with proprietary limiting functions permits multiple settings. Distributors are factory set with a performance advance curve and are provided with additional springs for custom advance curves.
    • High dielectric strength cap with male or female brass terminals and premium rotor with brass contact.
    • Compatible with most Capacitive Discharge Systems.
    • Legal in all 50 states and Canada (C.A.R.B. E.O. #D-57-12). Note: Non vacuum advance distributors do not have an E.O. number and are not legal for sale or use on pollution controlled motor vehicles.
    • Warranty: 30 months electronics / Limited 1 year mechanical.

    Flame-Thrower billet distributors are frequently used in tight engine compartments due to their Plug n Play design and relatively small size.

    Although our distributors fit their intended engine application, each vehicle application must be evaluated independently to insure adequate space for distributor fitment as well as air cleaner and hood clearance.

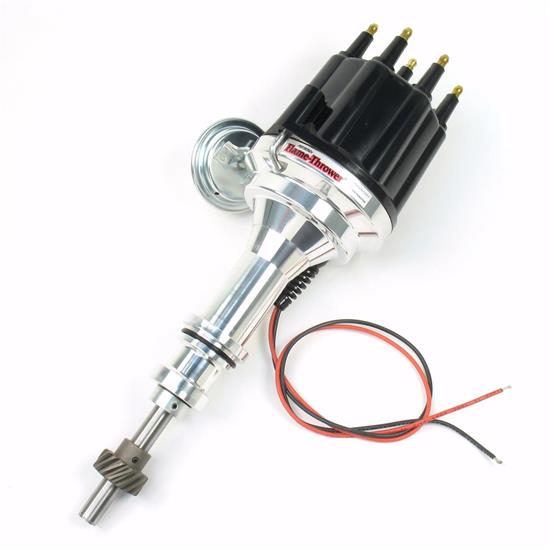

    • PerTronix D7131710 Flame-Thrower Electronic Distributor Billet Ford 351W with Ignitor III Vacuum Advance Black Male Cap
    • PerTronix D7131710 Flame-Thrower Electronic Distributor Billet Ford 351W with Ignitor III Vacuum Advance Black Male Cap

    Charts

    PerTronix D7131710 Specifications

    D-57-23
    KEY SPECS
    MFG. Part #D7131710
    BrandPerTronix
    Cap TypeHEI / Male
    CARB EO#
    GENERAL
    External Ignition Box RequiredNo
    Cap Terminal StyleHEI / Male
    Advance TypeMechanical and Vacuum
    Trigger StyleMagnetic
    Hall EffectYes
    Sync SignalNo
    Trigger SensorsDual
    Gear MaterialSteel
    Gear RotationStandard
    Distributor Cap ColorBlack
    Ignition Box RequiredNo
    Mechanical Tach DriveNo
    Slip CollarNo
    Housing MaterialBillet Aluminum
    Housing FinishPolished
    EmissionsCalifornia EO Approved
    Marine UseNo
    Sold in QuantityEach
    NotesMust use coil with .32 ohms. resistance. Distributor is not compatible with CD or Multi-Spark boxes
    GTIN Code694342522216
