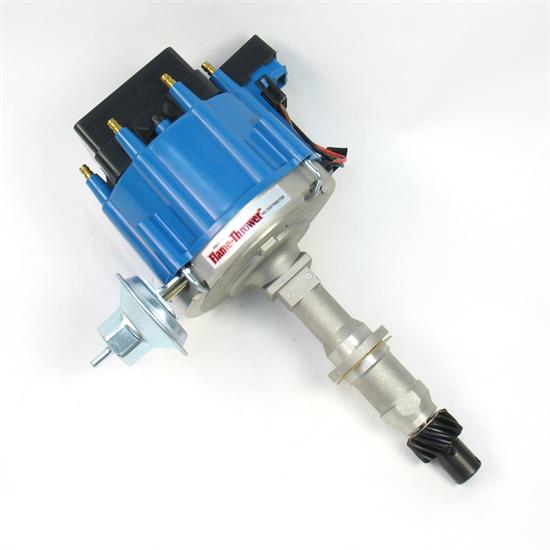

PerTronix D71202 Flame-Thrower HEI III Distributor, Pontiac 301-455

-18%

#447D71202

PerTronix D71202 Flame-Thrower HEI III Distributor, Pontiac 301-455

Name: PerTronix D71202 Flame-Thrower HEI III Distributor, Pontiac 301-455
Brand: PerTronix
SKU: 447D71202
Price: 356.77 USD
Availability: InStock

Write a Review

Ask a Question

Cap Color:

Blue

Black Red

$356.77

/each

Factory Shipped

$436.05

Save $79.28

Quantity

Need Help? Call to Order

Add to a list

Select an engine to verify Fitment

Select Engine

Product Summary

HEI / Male Cap Type, HEI / Male Cap Terminal Style

See more details

Key Specs

D-57-23

MFG. Part #	D71202
Brand	PerTronix
Cap Type	HEI / Male
Advance Type	Mechanical and Vacuum
CARB EO#

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

PerTronix D71202 Details

Street/Strip HEI III distributors are built from the ground up with all new components. We have engineered a special high energy module and coil combination that operates without misfires beyond 7500 RPM with multi-sparks and an adjustable digital rev limiter. That’s nearly 3000 RPM higher than most stock HEI distributors. Flame-Thrower HEI distributor produce 67% more energy with a 45% faster spark breakdown time when compared to the stock HEI. This means twice the energy to the spark plugs. Our tests show that with these improvements wider plug gaps can be used resulting in an increasing flame kernel growth for more efficient combustion. New lightweight aluminum alloy housing. Aligned and honed high quality bronze sintered bushings for reduced friction and extended life. Centerless ground corrosion resistant shaft reduces friction and provides concentric operation. Distributor gear is ground to exact tolerances for tighter mesh with camshaft. High dielectric strength cap with brass terminals and low resistance center coil brush. Balanced rotor with nylon screws prevent arcing and reduce vibration at high RPMs. Adjustable vacuum advance canister and high performance advance curve. Precision machined chromoly advance weights and center plate eliminate erratic timing. Meets stringent automobile susceptibility, vibration and shock requirements. Legal in all 50 states and Canada (C.A.R.B. E.O. #D-57-23)

Blue cap with multiple sparks and an adjustable digital rev limiter
HEI III module integrates multi-spark discharge thru red line plus an adjustable digital rev limiter with advanced micro processor dwell control keeping the module and coil cooler with dwell current at 7.2 amps
New lightweight aluminum alloy housing with aligned and honed high quality bronze sintered bushings for reduced friction and extended life.
Centerless ground corrosion resistant shaft reduces friction and provides concentric operation.
Distributor gear is ground to exact tolerances for tighter mesh with camshaft. (Bronze distributor gear available)
High dielectric strength cap with brass terminals and low resistance center coil brush.

Charts

Installation Instructions (PDF)

Pertronix Distributor Cross Reference (PDF)

Guides & Documents

Distributors Installation Instructions (447D71202)

Warranty (PerTronix)

Warranty Information

Click for details

Limited one year warranty Speedway Motors cannot facilitate the return of defective PerTronix products as they have requested to handle these directly with the consumer. Purchasers of a product who wish to make a warranty claim based upon an alleged product defect should email the

CA Prop 65

CARB warning

PerTronix D71202 Specifications

D-57-23

KEY SPECS
MFG. Part #	D71202
Brand	PerTronix
Cap Type	HEI / Male
Advance Type	Mechanical and Vacuum
CARB EO#

GENERAL
External Ignition Box Required	No
Cap Terminal Style	HEI / Male
Trigger Style	Magnetic
Hall Effect	Yes
Sync Signal	No
Trigger Sensors	Dual
Gear Material	Steel
Gear Rotation	Standard
Distributor Cap Color	Blue
Ignition Box Required	No
Mechanical Tach Drive	No
Slip Collar	No
Housing Material	Aluminum
Housing Finish	Natural
Emissions	California EO Approved
Marine Use	No
Sold in Quantity	Each
GTIN Code	694342546380

Ratings & Reviews

Be the first to write a review.

Questions & Answers

Be the first to ask a question.

Fitment

1963-1966 Pontiac Bonneville

421 Pontiac V8

1967-1969 Pontiac Bonneville

400 Pontiac V8
428 Pontiac V8

1970-1974 Pontiac Bonneville

350 Pontiac V8
400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1975-1976 Pontiac Bonneville

400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1977 Pontiac Bonneville

301 Pontiac V8
350 Pontiac V8
400 Pontiac V8

1978 Pontiac Bonneville

301 Pontiac V8
400 Pontiac V8

1979-1980 Pontiac Bonneville

301 Pontiac V8

1961-1966 Pontiac Catalina

421 Pontiac V8

1967-1969 Pontiac Catalina

400 Pontiac V8
428 Pontiac V8

1970-1974 Pontiac Catalina

350 Pontiac V8
400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1975 Pontiac Catalina

400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1976 Pontiac Catalina

350 Pontiac V8
400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1977 Pontiac Catalina

301 Pontiac V8
350 Pontiac V8
400 Pontiac V8

1978 Pontiac Catalina

301 Pontiac V8
400 Pontiac V8

1979-1980 Pontiac Catalina

301 Pontiac V8

1967 Pontiac Executive

400 Pontiac V8
428 Pontiac V8

1968 Pontiac Executive

350 Pontiac V8
400 Pontiac V8
428 Pontiac V8

1969 Pontiac Executive

400 Pontiac V8
428 Pontiac V8

1970 Pontiac Executive

350 Pontiac V8
400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1967 Pontiac Firebird

326 Pontiac V8
400 Pontiac V8

1968-1969 Pontiac Firebird

350 Pontiac V8
400 Pontiac V8

1970-1976 Pontiac Firebird

350 Pontiac V8
400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1977 Pontiac Firebird

301 Pontiac V8
350 Pontiac V8
400 Pontiac V8

1978 Pontiac Firebird

400 Pontiac V8

1979 Pontiac Firebird

301 Pontiac V8
400 Pontiac V8

1980-1981 Pontiac Firebird

301 Pontiac V8

1973-1975 Pontiac Grand Am

350 Pontiac V8
400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1978-1980 Pontiac Grand Am

301 Pontiac V8

1975-1976 Pontiac Grand LeMans

350 Pontiac V8
400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1977 Pontiac Grand LeMans

301 Pontiac V8
350 Pontiac V8
400 Pontiac V8

1979-1981 Pontiac Grand LeMans

301 Pontiac V8

1963-1966 Pontiac Grand Prix

421 Pontiac V8

1967-1969 Pontiac Grand Prix

400 Pontiac V8
428 Pontiac V8

1970 Pontiac Grand Prix

350 Pontiac V8
400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1971 Pontiac Grand Prix

400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1972-1974 Pontiac Grand Prix

350 Pontiac V8
400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1975 Pontiac Grand Prix

400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1976 Pontiac Grand Prix

350 Pontiac V8
400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1977 Pontiac Grand Prix

301 Pontiac V8
350 Pontiac V8
400 Pontiac V8

1978-1980 Pontiac Grand Prix

301 Pontiac V8

1971-1974 Pontiac Grand Safari

350 Pontiac V8
400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1975-1976 Pontiac Grand Safari

400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1977 Pontiac Grand Safari

301 Pontiac V8
350 Pontiac V8
400 Pontiac V8

1978 Pontiac Grand Safari

400 Pontiac V8

1971 Pontiac Grandville

Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1972-1975 Pontiac Grandville

400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1964-1965 Pontiac GTO

326 Pontiac V8
421 Pontiac V8

1967-1969 Pontiac GTO

400 Pontiac V8

1970-1971 Pontiac GTO

400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1972-1973 Pontiac GTO

350 Pontiac V8
400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1963-1966 Pontiac LeMans

326 Pontiac V8

1967 Pontiac LeMans

326 Pontiac V8
400 Pontiac V8
428 Pontiac V8

1968-1969 Pontiac LeMans

350 Pontiac V8
400 Pontiac V8
428 Pontiac V8

1970-1974 Pontiac LeMans

350 Pontiac V8
400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1975 Pontiac LeMans

350 Pontiac V8
400 Pontiac V8

1976 Pontiac LeMans

350 Pontiac V8
400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1977 Pontiac LeMans

301 Pontiac V8
350 Pontiac V8
400 Pontiac V8

1979-1981 Pontiac LeMans

301 Pontiac V8

1977 Pontiac Phoenix

350 Pontiac V8

1963-1966 Pontiac Star Chief

421 Pontiac V8

1963-1966 Pontiac Tempest

326 Pontiac V8

1967 Pontiac Tempest

326 Pontiac V8
400 Pontiac V8
428 Pontiac V8

1968-1969 Pontiac Tempest

350 Pontiac V8
400 Pontiac V8
428 Pontiac V8

1970 Pontiac Tempest

350 Pontiac V8
400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1961 Pontiac Ventura

421 Pontiac V8

1971-1976 Pontiac Ventura

350 Pontiac V8

1977 Pontiac Ventura

301 Pontiac V8
350 Pontiac V8
