Product Summary

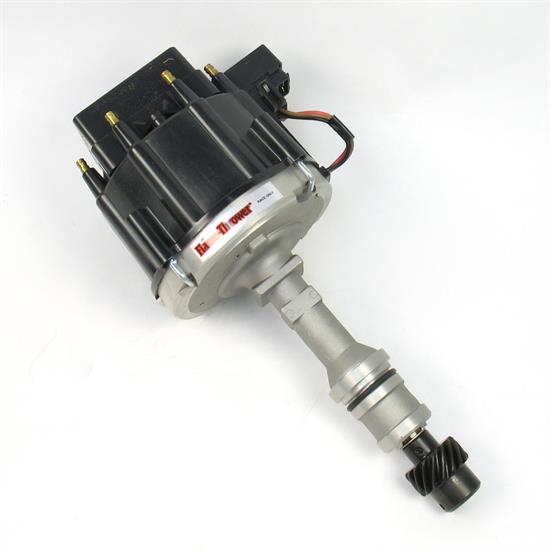

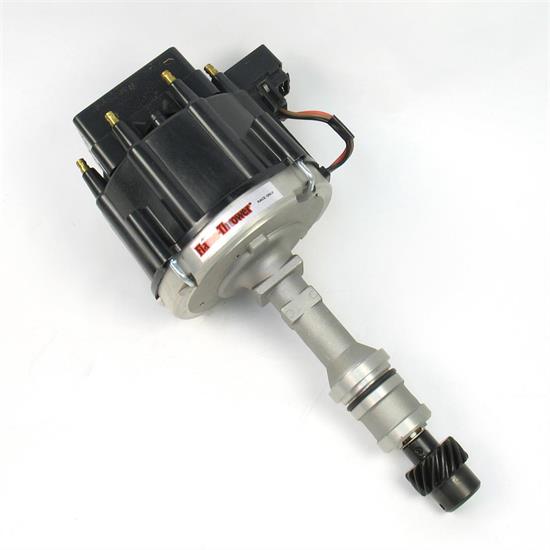

Oldsmobile V8, HEI / Male Cap Type, Steel Gear Material

    Key Specs

    MFG. Part #D71170
    BrandPerTronix
    Cap TypeHEI / Male

    Need To Know

    This Product Will Ship Free

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

    Details

    Race HEI III distributors use all new components and compared to our street or strip version, race units produce 42 percent more energy with 46 percent faster spark breakdown time allowing 48 percent more peak current to reach the spark plug. This abundant energy doubles the spark intensity during the critical one millisecond of burn time. Great for both circle track and drag race applications where factory type HEI distributors are mandated. New lightweight A384 cast aluminum alloy housing. Aligned and honed high quality bronze sintered bushings for reduced friction and extended life. Centerless ground corrosion resistant shaft reduces friction and provides concentric operation. Flame-Thrower HEI III module uses the latest technology to intergrate multi-spark discharge thru red line plus an adjustable digital rev limiter with advanced active dwell control keeping the module and coil cooler. Distributor gear is ground to exact tolerances for tighter mesh with cam.

    • Black cap with multiple sparks and an adjustable digital rev limiter
    • New lightweight A384 cast aluminum alloy housing.
    • Aligned and honed high quality bronze sintered bushings for reduced friction and extended life.
    • Centerless ground corrosion resistant shaft reduces friction and provides concentric operation.
    • Flame-Thrower HEI III module uses the latest technology to intergrate multi-spark discharge thru red line plus an adjustable digital rev limiter with advanced active dwell control keeping the module and coil cooler with dwell current at 7.2 amps
    • Distributor gear is ground to exact tolerances for tighter mesh with cam. (Bronze distributor gear available)

    Charts

    Warranties

    Limited one year warranty

    CARB Warning

    For race/ off road use or for use on pre-1966 vehicles.

    Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway, or if installed in vehicles model-year 1965 or older; motorcycles model-year 1977 or older; or off-highway recreational vehicles (such as off-road motorcycles and all-terrain vehicles) model-year 1996 and older. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

    Specifications

    KEY SPECS
    MFG. Part #D71170
    BrandPerTronix
    Cap TypeHEI / Male
    GENERAL
    External Ignition Box RequiredNo
    Cap Terminal StyleHEI / Male
    Advance TypeMechanical
    Trigger StyleMagnetic
    Hall EffectYes
    Sync SignalNo
    Trigger SensorsDual
    Gear MaterialSteel
    Gear RotationStandard
    Distributor Cap ColorBlack
    Ignition Box RequiredNo
    Mechanical Tach DriveNo
    Slip CollarNo
    Housing MaterialAluminum
    Housing FinishNatural
    Marine UseNo
    Sold in QuantityEach
    GTIN Code694342546519
