Part # 447D7100700

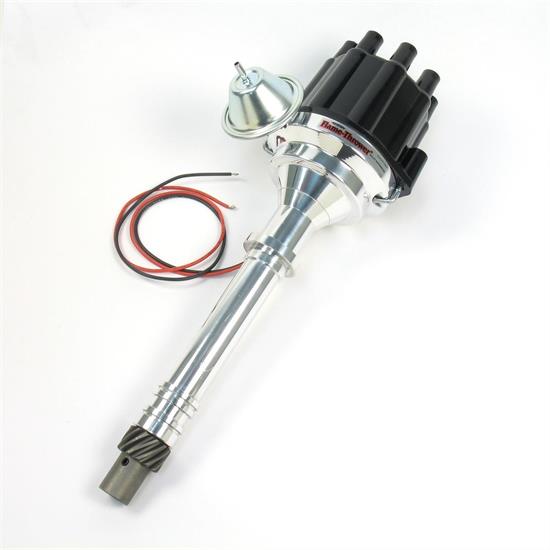

PerTronix D7100700 Flame-Thrower Ignitor III Billet Distributor, SBC/BBC

by

|

  • Features the patented Ignitor III electronics and a CNC machined 6061 T-6 polished billet housing
  • Provides multiple sparks throughout the entire RPM range
  • Has an integrated digital rev limiter with LED feedback for precise RPM

$291.99

each

In Stock

$510.64

Save $218.65


Quantity

Select a vehicle to verify Fitment

Product Summary

Chevy Small Block V8, Chevy Big Block V8, Black

  • Features the patented Ignitor III electronics and a CNC machined 6061 T-6 polished billet housing
  • Provides multiple sparks throughout the entire RPM range
  • Has an integrated digital rev limiter with LED feedback for precise RPM
  • Memory safe function store settings eliminating unintended changes to rev limit
  • Synchronized peak current and park timing reduces heat build up

Key Specs

MFG. Part #D7100700
Cap TypeSocket / Female

Need To Know

This Product Will Ship Free

Need help? Call 800.979.0122

Quick and Easy Returns

Details

Plug n play billet distributors are designed for maximum ignition performance and easy installation all at a price that you can afford. Replace your outdated points or electronic distributor with this performance proven distributor and which features the patented Ignitor III electronics and a CNC machined 6061 T-6 polished billet housing.

Features
• Multiple sparks throughout the entire RPM range
• Integrated digital rev limiter with LED feedback for precise RPM
• Memory safe function store settings eliminating unintended changes to rev limit
• Adaptive dwell maintains peak energy throughout the entire RPM range, reducing misfires while improving engine performance
• Synchronized peak current and park timing reduces heat build up
• Peak current level is reached just prior to spark for maximum energy without heat build up, increasing coil performance and module reliability
• Adjusts spark timing at higher RPMs to compensate for the inherent electronic delay
• Senses startup and increases energy for easier quicker starting
• Thermal clad surface mount construction for superior reliability
• Built-in reverse polarity and over current protection shuts down the system, preventing component damage
• Not compatible with C D or Multi-Spark boxes.
• Precision CNC machined billet housings are polished to a high luster
• Tempered distributor shafts have low torsion displacement for accurate timing and longer life
• Upper ball bearing and extra long oil impregnated bronze lower bushing work together to reduce friction and high RPM vibration.
• High strength cap with male or female brass terminals and premium rotor with brass contatcs
• Adjustable mechanical advance with proprietary limiting functions permits multiple settings. Distributors are factory set with a performance advance curve and are provided with additional springs for custom advance curves.
• Legal in all 50 states and Canada (C.A.R.B. E.O. #D-57-12). Note: Non vacuum advance distributors do not have an E.O. number and are not legal for sale or use on pollution controlled motor vehicles.
• Warranty: 30 months electronics / Limited 1 year mechanicalFlame-Thrower billet distributors are frequently used in tight engine compartments due to their Plug n Play design and relatively small size. Although our distributors fit their intended engine application, each vehicle application must be evaluated independently to insure adequate space for distributor fitment as well as air cleaner and hood clearance.

Charts

Specifications

KEY SPECS
MFG. Part #D7100700
Cap TypeSocket / Female
GENERAL
External Ignition Box RequiredNo
Cap Terminal StyleSocket / Female
Advance TypeMechanical and Vacuum
Trigger StyleMagnetic
Hall EffectYes
Sync SignalNo
Trigger SensorsDual
Gear MaterialSteel
Gear RotationStandard
Distributor Cap ColorBlack
Ignition Box RequiredNo
Mechanical Tach DriveNo
Slip CollarNo
Housing MaterialBillet Aluminum
Housing FinishPolished
EmissionsCalifornia EO Approved
Marine UseNo
Sold in QuantityEach
NotesMust use coil with .32 ohms. resistance. Distributor is not compatible with CD or Multi-Spark boxes
GTIN Code694342522063
