PerTronix D310711 Billet Mag Trigger Distributor Olds 260-455, Red

-18%

PerTronix D310711 Billet Mag Trigger Distributor Olds 260-455, Red
PerTronix

|

#447D310711

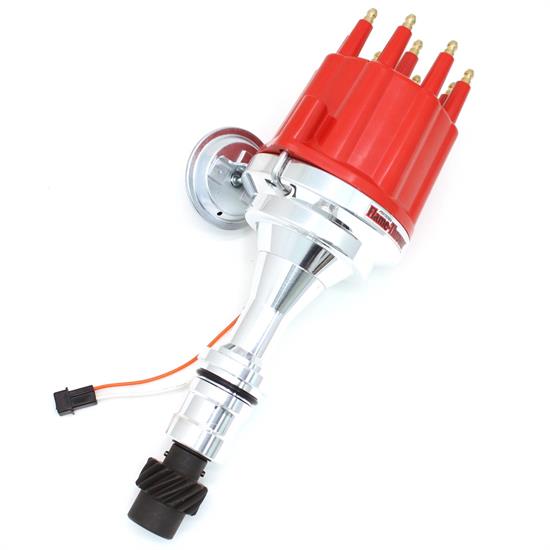

PerTronix D310711 Billet Mag Trigger Distributor Olds 260-455, Red

Cap Color:

Red

Black

$383.45

/each

Factory Shipped

$468.67

Save $85.22


Quantity

Need Help? Call to Order

Add to a list

Share

Select an engine to verify Fitment

Select Engine

Product Summary

External Ignition Box Required, HEI / Male Cap Type

    See more details

    Key Specs

    D-57-23
    MFG. Part #D310711
    BrandPerTronix
    Cap TypeHEI / Male
    Advance TypeMechanical and Vacuum
    CARB EO#
    See more specs

    Need To Know

    Need help?

    855.313.9176
    View the Help Center

    Quick and Easy Returns

    Return Policy

    PerTronix D310711 Details

    Magnetic triggered billet distributors are built using the same great platform we use for our plug n' play distributor series. These feature rich distributors are the perfect alternative to the more expensive distributors competitors offer. Precision magnetic pickup coil and reluctor offer extremely accurate signaling at low and high RPM. Specially engineered reluctor made from lightweight FC-0208 alloy offers superior dimensional stability for symmetrical spark separation. Overmolded magnetic pickup coil supports windings while providing excellent resistance to corrosion. Easy wiring with standard Tyco Mate-N-Lok connector works with most ignition system harnesses. Compatible with most capacitive discharge ignition boxes.

    • Red Male Cap
    • Precision magnetic pickup coil and reluctor offer extremely accurate signaling at low and high RPM.
    • Specially engineered reluctor made from lightweight FC-0208 alloy offers superior dimensional stability for symmetrical spark separation.
    • Overmolded magnetic pickup coil supports windings while providing excellent resistance to corrosion.
    • Easy wiring with standard Tyco Mate-N-Lok™ connector works with most ignition system harnesses.
    • Compatible with most capacitive discharge ignition boxes.

    Charts

    Warranty Information

    Click for details

    Limited one year warranty Speedway Motors cannot facilitate the return of defective PerTronix products as they have requested to handle these directly with the consumer. Purchasers of a product who wish to make a warranty claim based upon an alleged product defect should email the

    PerTronix D310711 Specifications

    D-57-23
    KEY SPECS
    MFG. Part #D310711
    BrandPerTronix
    Cap TypeHEI / Male
    Advance TypeMechanical and Vacuum
    CARB EO#
    GENERAL
    External Ignition Box RequiredYes
    Cap Terminal StyleHEI / Male
    Trigger StyleMagnetic
    Hall EffectYes
    Sync SignalNo
    Trigger SensorsDual
    Gear MaterialSteel
    Gear RotationStandard
    Distributor Cap ColorRed
    Ignition Box RequiredYes
    Mechanical Tach DriveNo
    Slip CollarNo
    Housing MaterialBillet Aluminum
    Housing FinishPolished
    EmissionsCalifornia EO Approved
    Marine UseNo
    Sold in QuantityEach
    GTIN Code694342551476

    Questions & Answers

    Be the first to ask a question.

    Fitment

    • 307 Oldsmobile Small-Block V8

    • Oldsmobile 307

    • Oldsmobile 350 Small-Block

    • 307 Oldsmobile Small-Block V8

    • 455 Oldsmobile Big-Block V8

    • 455 Oldsmobile Big-Block V8

    • Oldsmobile 350 Small-Block

    • Oldsmobile 371 Rocket

    • Oldsmobile 371 Rocket

    • Oldsmobile 371 Rocket

    • Oldsmobile 394 Rocket

    • Oldsmobile 394 Rocket

    • Oldsmobile 425

    • 455 Oldsmobile Big-Block V8

    • 455 Oldsmobile Big-Block V8

    • Oldsmobile 350 Small-Block

    • 455 Oldsmobile Big-Block V8

    • Oldsmobile 350 Small-Block

    • Oldsmobile 307

    • Oldsmobile 350 Small-Block

    • Oldsmobile 307

    • Oldsmobile 307

    • Oldsmobile 350 Small-Block

    • Oldsmobile 394 Rocket

    • 455 Oldsmobile Big-Block V8

    • Oldsmobile 350 Small-Block

    • 455 Oldsmobile Big-Block V8

    • Oldsmobile 350 Small-Block

    • Oldsmobile 307

    • Oldsmobile 350 Small-Block

    • Oldsmobile 307

    • Oldsmobile 307

    • Oldsmobile 350 Small-Block

    • Oldsmobile 307

    • Oldsmobile 350 Small-Block

    • 455 Oldsmobile Big-Block V8

    • Oldsmobile 350 Small-Block

    • Oldsmobile 350 Small-Block

    • Oldsmobile 350 Small-Block

    • Oldsmobile 307

    • Oldsmobile 307

    • Oldsmobile 350 Small-Block

    • Oldsmobile 307

    • Oldsmobile 307

    • Oldsmobile 350 Small-Block

    • 455 Oldsmobile Big-Block V8

    • Oldsmobile 350 Small-Block

    • Oldsmobile 350 Small-Block

    • Oldsmobile 350 Small-Block

    • Oldsmobile 307

    • Oldsmobile 350 Small-Block

    • Oldsmobile 307

    • Oldsmobile 350 Small-Block

    • 455 Oldsmobile Big-Block V8

    • Oldsmobile 350 Small-Block

    • Oldsmobile 350 Small-Block

    • Oldsmobile 307

    • Oldsmobile 307

    • Oldsmobile 350 Small-Block

    • Oldsmobile 307

    • 455 Oldsmobile Big-Block V8

    • Oldsmobile 350 Small-Block

    • Oldsmobile 425

    • 455 Oldsmobile Big-Block V8

    • Oldsmobile 350 Small-Block

    • Oldsmobile 425

    • 455 Oldsmobile Big-Block V8

    • Oldsmobile 350 Small-Block

    • Oldsmobile 350 Small-Block

    • Oldsmobile 307

    • Oldsmobile 350 Small-Block

    • Oldsmobile 307

    • Oldsmobile 307

    • Oldsmobile 350 Small-Block

    • Oldsmobile 371 Rocket

    • Oldsmobile 371 Rocket

    • Oldsmobile 394 Rocket

    • Oldsmobile 394 Rocket

    • Oldsmobile 425

    • Oldsmobile 371 Rocket

    • 371 Oldsmobile Rocket V8

    • Oldsmobile 394 Rocket

    • 394 Oldsmobile Rocket V8

    • 455 Oldsmobile Big-Block V8

    • Oldsmobile 350 Small-Block

    • Oldsmobile 425

    • Oldsmobile 350 Small-Block

    • 455 Oldsmobile Big-Block V8

    • Oldsmobile 350 Small-Block

    • Oldsmobile 371 Rocket

    • Oldsmobile 371 Rocket

    • Oldsmobile 394 Rocket

    • Oldsmobile 394 Rocket

    • Oldsmobile 371 Rocket

    • Oldsmobile 394 Rocket

    • Oldsmobile 425

    • Oldsmobile 394 Rocket

    • Oldsmobile 425

    • Oldsmobile 350 Small-Block

    • Oldsmobile 371 Rocket

    • Oldsmobile 394 Rocket

    • Oldsmobile 425

    • Oldsmobile 371 Rocket

    • Oldsmobile 371 Rocket

    • Oldsmobile 394 Rocket

    • Oldsmobile 394 Rocket

    • Oldsmobile 425

    • 455 Oldsmobile Big-Block V8

    • Oldsmobile 350 Small-Block

    • 455 Oldsmobile Big-Block V8

    • Oldsmobile 350 Small-Block
