$64.99
$61.93

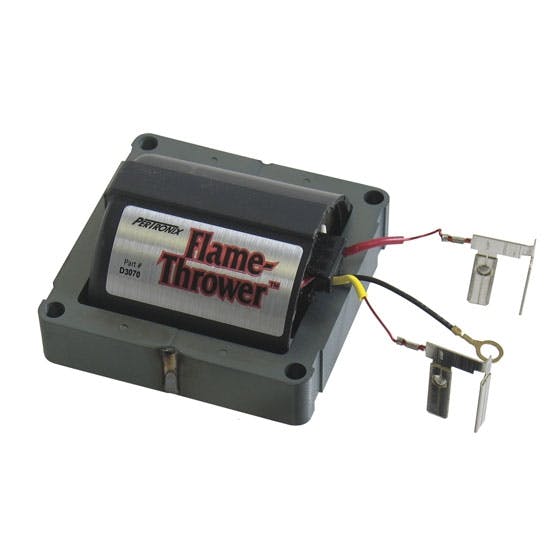

PerTronix D3070 Flame-Thrower HEI Igniton Coil, Race Only

PerTronix D3070 Flame-Thrower HEI Igniton Coil, Race Only
2.44" Overall Height, HEI / Male Cap Type, HEI / Male Cap Terminal Style, 85:1 Turns Ratio
In Stock
Can Ship FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select Vehicle


PerTronix D3070 Flame-Thrower HEI Igniton Coil, Race Only
X

Details
Reviews
Q&A
Videos & Articles
- Can be used as a replacement for the PerTronix Flame-Thrower HEI distributor 447-1071
- It will produce 42% more energy than a comparable street/strip coil when paired with matching module 447-2070
- Engineered to provide 46% faster spark breakdown time allowing 48% more peak current to reach the spark plug between 6000 and 8500 RPM
- Has a primary resistance of 0.35 Ohms
- Features a 90:1 turn ratio and puts out 50,000 max volts
Details
Overall Height:
2.44"
Cap Type:
HEI / Male
Cap Terminal Style:
HEI / Male
Maximum Voltage:
50,000 volts
Turns Ratio:
85:1
Resistance:
.35 ohms
Secondary Resistance:
8.30 ohms
Inductance:
2.80
MFG. Part #:
D3070
GTIN Code:
694342009694
Sold in Quantity:
Each
EO#:
D-57-21
Info
This ignition coil can be used as a replacement for the PerTronix Flame-Thrower HEI distributor 447-1071 or as a race only coil for your GM HEI distributor with an internal coil. When paired with matching module 447-2070, this coil will produce 42% more energy than a comparable street/strip coil with 46% faster spark breakdown time allowing 48% more peak current to reach the spark plug between 6000 and 8500 RPM.
- 90:1 turn ratio
- 0.35 Ohms primary resistance
- 50,000 max voltage
- Use with module 447-2070
Important Messages
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations
