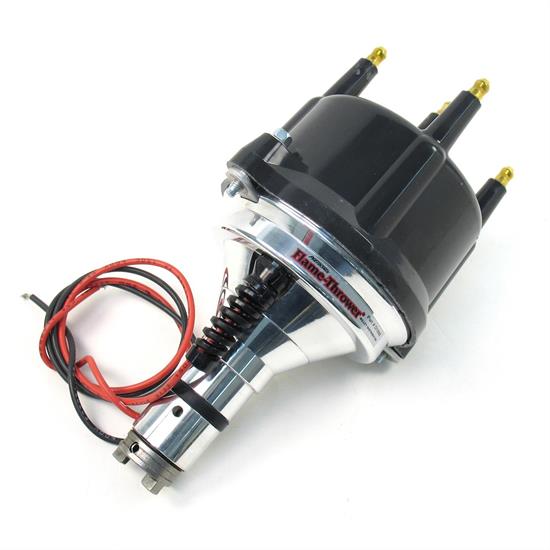

PerTronix D186810 Flame-Thrower Distributor, VW Type 1, Black Cap

-9%

#447D186810

PerTronix D186810 Flame-Thrower Distributor, VW Type 1, Black Cap

Name: PerTronix D186810 Flame-Thrower Distributor, VW Type 1, Black Cap
Brand: PerTronix
SKU: 447D186810
Price: 400.8 USD
Availability: InStock

Write a Review

1 Question

Cap Color:

Black

Gray

$400.80

/each

Factory Shipped

$440.88

Save $40.08

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

HEI / Male Cap Type, HEI / Male Cap Terminal Style

See more details

Key Specs

MFG. Part #	D186810
Brand	PerTronix
Cap Type	HEI / Male
Advance Type	Mechanical

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

PerTronix D186810 Details

Billet Plug n’ Play Distributors are based on a precision CNC-machined housing with an upper ball bearing to support the steel distributor shaft accurately from idle to redline rpm. These distributors feature our maintenance-free electronic ignition module to produce a strong spark and steady ignition timing.

For the specified VW Type 1 distributor application.
Precision CNC-machined billet housing provides an accurately constructed distributor body.
Upper ball bearing supports the distributor shaft from idle through high engine speeds.
Steel distributor shaft provides the core of the rotating assembly.
Maintenance-free electronic ignition module eliminates routine breaker-point service.
Electronic ignition is designed to deliver a strong spark and steady ignition timing.

Charts

Installation Instructions (PDF)

Pertronix Distributor Cross Reference (PDF)

Guides & Documents

Distributors Installation Instructions (447D186810)

Warranty (PerTronix)

Warranty Information

Speedway Motors cannot facilitate the return of defective PerTronix products as they have requested to handle these directly with the consumer. Purchasers of a product who wish to make a warranty claim based upon an alleged product defect should email the

CARB Warning

For race/ off road use or for use on pre-1966 vehicles.

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway, or if installed in vehicles model-year 1965 or older; motorcycles model-year 1977 or older; or off-highway recreational vehicles (such as off-road motorcycles and all-terrain vehicles) model-year 1996 and older. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

CA Prop 65

CARB warning

PerTronix D186810 Specifications

KEY SPECS
MFG. Part #	D186810
Brand	PerTronix
Cap Type	HEI / Male
Advance Type	Mechanical

GENERAL
External Ignition Box Required	No
Cap Terminal Style	HEI / Male
Trigger Style	Magnetic
Hall Effect	Yes
Sync Signal	No
Trigger Sensors	Dual
Gear Material	Steel
Gear Rotation	Standard
Distributor Cap Color	Black
Ignition Box Required	No
Mechanical Tach Drive	No
Slip Collar	No
Housing Material	Cast Aluminum
Housing Finish	Natural
Marine Use	No
Sold in Quantity	Each
Notes	With Ignitor electronics.
GTIN Code	694342014254
