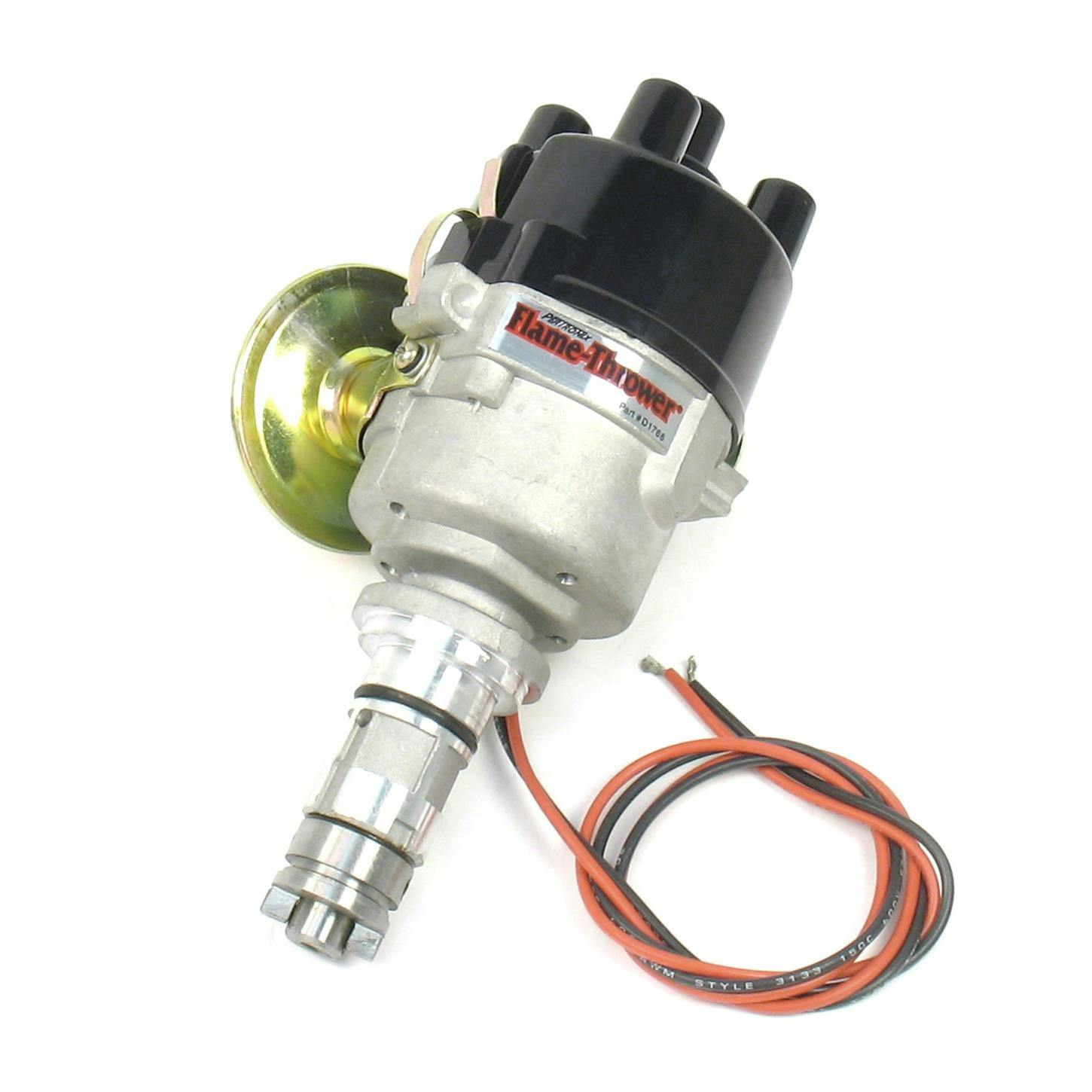

PerTronix D176600 Flame-Thrower Distributor, British 4 Cylinder
$314.02
/each
Factory Shipped
$345.42
Save $31.40
Quantity
Need Help? Call to Order
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Key Specs
D-57-23| MFG. Part # | D176600 |
| Brand | PerTronix |
| Cap Type | Socket / Female |
| Advance Type | Mechanical and Vacuum |
| CARB EO# |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyPerTronix D176600 Details
PerTronix D176600 Details
These distributors are built using all new castings modeled after the 45D series distributor. Each distributor is then precision machined for an exact fit. Replace your faulty factory Lucas electronic or worn out 23D, 25D and 45D point distributor with a distributor that will deliver the performance you demand.Features
- Tailored advance curve for optimal performance and driveability.
- Delivers twice the voltage to the spark plugs, increasing horsepower, fuel economy, and spark plug life.
- 2:1 improvement over "points" in current fall time for increased coil output.
- Rotating cobalt magnets trigger a Hall Effect integrated circuit. No points to burn. No moving parts to wear out.
- Epoxy molding makes our module impervious to dirt, oil, grease and moisture.
- Stable timing. No need for any adjustments.
- Use with Flame-Thrower 40,000 volt coil for optimal performance.
- Available for 12-volt negative and positive ground systems.
- Warranty: 30 months electronics / limited 1 year mechanical.
- PerTronix D176600 Flame-Thrower Electronic Distributor Cast British 4 cyl Plug and Play with Ignitor Vacuum Advance
- PerTronix D176600 Flame-Thrower Electronic Distributor Cast British 4 cyl Plug and Play with Ignitor Vacuum Advance
Charts
Guides & Documents
PerTronix D176600 Specifications
PerTronix D176600 Specifications
D-57-23
| KEY SPECS | |
|---|---|
| MFG. Part # | D176600 |
| Brand | PerTronix |
| Cap Type | Socket / Female |
| Advance Type | Mechanical and Vacuum |
| CARB EO# | |
| GENERAL | |
| External Ignition Box Required | No |
| Cap Terminal Style | Socket / Female |
| Trigger Style | Magnetic |
| Hall Effect | Yes |
| Sync Signal | No |
| Trigger Sensors | Dual |
| Gear Rotation | Standard |
| Distributor Cap Color | Black |
| Ignition Box Required | No |
| Mechanical Tach Drive | No |
| Slip Collar | No |
| Housing Material | Cast Aluminum |
| Housing Finish | Natural |
| Emissions | California EO Approved |
| Marine Use | No |
| Sold in Quantity | Each |
| Notes | Fits BMC A and B series 4-cylinder engines with 12 V negative system. Replaces Lucas 23D, 25D, and 45D distributors. Must be used with a 3 ohm coil. |
| GTIN Code | 694342014971 |
