PerTronix D120700 Flame-Thrower Electronic Distributor, Pontiac V8

-9%

#447D120700

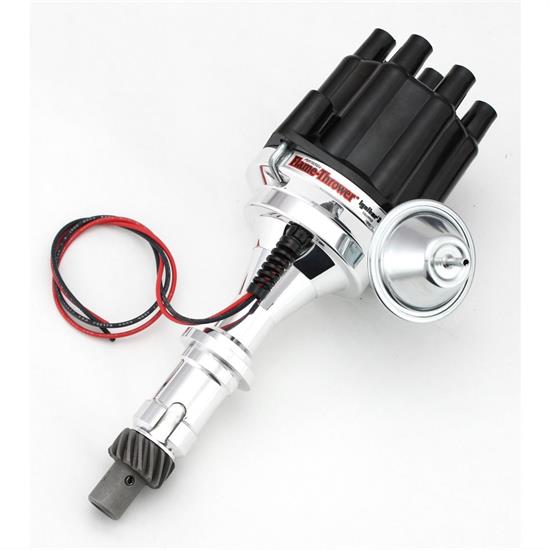

PerTronix D120700 Flame-Thrower Electronic Distributor, Pontiac V8

Name: PerTronix D120700 Flame-Thrower Electronic Distributor, Pontiac V8
Brand: PerTronix
SKU: 447D120700
Price: 412.34 USD
Availability: InStock

Write a Review

Ask a Question

$412.34

/each

Factory Shipped

$453.57

Save $41.23

Quantity

Need Help? Call to Order

Add to a list

Select an engine to verify Fitment

Select Engine

Product Summary

Socket / Female Cap Type, Magnetic Trigger Style, Black

See more details

Key Specs

D-57-23

MFG. Part #	D120700
Brand	PerTronix
Cap Type	Socket / Female
Advance Type	Mechanical and Vacuum
CARB EO#

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

PerTronix D120700 Details

Flame-Thrower billet distributor for Pontiac 301, 326, 350, 389, 400, 421, 428, & 455 engines with vacuum advance. Black female style cap.

Plug n play billet distributors are designed for maximum ignition performance and easy installation all at a price that you can afford. Replace your outdated points or electronic distributor with this performance proven distributor and which features the patented IgnitorÂ® II electronics and a CNC machined 6061 T-6 polished billet housing.Features
• Integrated patented Ignitor II technology with adaptive dwell control.
• Cobalt magnets and Hall Effect trigger for stable timing and precise spark distribution.
• A powerful micro controller with adaptive dwell algorithms constantly adjust the dwell angle to maintain peak energy throughout the entire RPM range for increased high and low RPM performance.
• Ignitor II compensates for inherent electronic delay by adjusting the spark timing throughout the entire RPM range.
• Synchronized peak current and spark timing reduces heat build-up.
• Precision CNC machined billet housings are polished to a high luster.
• Tempered distributor shafts have low torsion displacement for accurate timing and longer life.
• Upper ball bearing and extra long oil impregnated bronze lower bushing work together to reduce friction and high RPM vibration.
• Precision stamped advance weights eliminate erratic timing.
• Adjustable mechanical advance with proprietary limiting functions permits multiple settings. Distributors are factory set with a performance advance curve and are provided with additional springs for custom advance curves.
• High dielectric strength cap with male or female brass terminals and premium rotor with brass contact.
• Compatible with most Capacitive Discharge Systems.
• Legal in all 50 states and Canada (C.A.R.B. E.O. #D-57-12). Note: Non vacuum advance distributors do not have an E.O. number and are not legal for sale or use on pollution controlled motor vehicles.
• Warranty: 30 months electronics / Limited 1 year mechanical. Flame-Thrower billet distributors are frequently used in tight engine compartments due to their Plug n Play design and relatively small size.Although our distributors fit their intended engine application, each vehicle application must be evaluated independently to insure adequate space for distributor fitment as well as air cleaner and hood clearance.

PerTronix D120700 Flame-Thrower Electronic Distributor Billet Pontiac V8 Plug and Play with Ignitor II Technology Vacuum Advance Black Cap

PerTronix D120700 Flame-Thrower Electronic Distributor Billet Pontiac V8 Plug and Play with Ignitor II Technology Vacuum Advance Black Cap

Charts

Installation Instructions (PDF)

Pertronix Distributor Cross Reference (PDF)

Guides & Documents

Distributors Installation Instructions (447D120700)

Warranty (PerTronix)

Warranty Information

Click for details

Speedway Motors cannot facilitate the return of defective PerTronix products as they have requested to handle these directly with the consumer. Purchasers of a product who wish to make a warranty claim based upon an alleged product defect should email the

CA Prop 65

CARB warning

PerTronix D120700 Specifications

D-57-23

KEY SPECS
MFG. Part #	D120700
Brand	PerTronix
Cap Type	Socket / Female
Advance Type	Mechanical and Vacuum
CARB EO#

GENERAL
External Ignition Box Required	No
Cap Terminal Style	Socket / Female
Trigger Style	Magnetic
Hall Effect	Yes
Sync Signal	No
Trigger Sensors	Dual
Gear Material	Steel
Gear Rotation	Standard
Distributor Cap Color	Black
Ignition Box Required	No
Mechanical Tach Drive	No
Slip Collar	No
Housing Material	Billet Aluminum
Housing Finish	Polished
Emissions	California EO Approved
Marine Use	No
Sold in Quantity	Each
GTIN Code	694342521530

Ratings & Reviews

Be the first to write a review.

Questions & Answers

Be the first to ask a question.

Fitment

1959-1962 Pontiac Bonneville

389 Pontiac V8

1963-1966 Pontiac Bonneville

389 Pontiac V8
421 Pontiac V8

1967-1969 Pontiac Bonneville

400 Pontiac V8
428 Pontiac V8

1970-1974 Pontiac Bonneville

350 Pontiac V8
400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1975-1976 Pontiac Bonneville

400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1977 Pontiac Bonneville

301 Pontiac V8
350 Pontiac V8
400 Pontiac V8

1978 Pontiac Bonneville

301 Pontiac V8
400 Pontiac V8

1979-1980 Pontiac Bonneville

301 Pontiac V8

1959-1960 Pontiac Catalina

389 Pontiac V8

1961-1966 Pontiac Catalina

389 Pontiac V8
421 Pontiac V8

1967-1969 Pontiac Catalina

400 Pontiac V8
428 Pontiac V8

1970-1974 Pontiac Catalina

350 Pontiac V8
400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1975 Pontiac Catalina

400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1976 Pontiac Catalina

350 Pontiac V8
400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1977 Pontiac Catalina

301 Pontiac V8
350 Pontiac V8
400 Pontiac V8

1978 Pontiac Catalina

301 Pontiac V8
400 Pontiac V8

1979-1980 Pontiac Catalina

301 Pontiac V8

1967 Pontiac Executive

400 Pontiac V8
428 Pontiac V8

1968 Pontiac Executive

350 Pontiac V8
400 Pontiac V8
428 Pontiac V8

1969 Pontiac Executive

400 Pontiac V8
428 Pontiac V8

1970 Pontiac Executive

350 Pontiac V8
400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1967 Pontiac Firebird

326 Pontiac V8
400 Pontiac V8

1968-1969 Pontiac Firebird

350 Pontiac V8
400 Pontiac V8

1970-1976 Pontiac Firebird

350 Pontiac V8
400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1977 Pontiac Firebird

301 Pontiac V8
350 Pontiac V8
400 Pontiac V8

1978 Pontiac Firebird

400 Pontiac V8

1979 Pontiac Firebird

301 Pontiac V8
400 Pontiac V8

1980-1981 Pontiac Firebird

301 Pontiac V8

1973-1975 Pontiac Grand Am

350 Pontiac V8
400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1978-1980 Pontiac Grand Am

301 Pontiac V8

1975-1976 Pontiac Grand LeMans

350 Pontiac V8
400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1977 Pontiac Grand LeMans

301 Pontiac V8
350 Pontiac V8
400 Pontiac V8

1979-1981 Pontiac Grand LeMans

301 Pontiac V8

1962 Pontiac Grand Prix

389 Pontiac V8

1963-1966 Pontiac Grand Prix

389 Pontiac V8
421 Pontiac V8

1967-1969 Pontiac Grand Prix

400 Pontiac V8
428 Pontiac V8

1970 Pontiac Grand Prix

350 Pontiac V8
400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1971 Pontiac Grand Prix

400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1972-1974 Pontiac Grand Prix

350 Pontiac V8
400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1975 Pontiac Grand Prix

400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1976 Pontiac Grand Prix

350 Pontiac V8
400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1977 Pontiac Grand Prix

301 Pontiac V8
350 Pontiac V8
400 Pontiac V8

1978-1980 Pontiac Grand Prix

301 Pontiac V8

1971-1974 Pontiac Grand Safari

350 Pontiac V8
400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1975-1976 Pontiac Grand Safari

400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1977 Pontiac Grand Safari

301 Pontiac V8
350 Pontiac V8
400 Pontiac V8

1978 Pontiac Grand Safari

400 Pontiac V8

1971 Pontiac Grandville

Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1972-1975 Pontiac Grandville

400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1964-1965 Pontiac GTO

326 Pontiac V8
389 Pontiac V8
421 Pontiac V8

1966 Pontiac GTO

389 Pontiac V8

1967-1969 Pontiac GTO

400 Pontiac V8

1970-1971 Pontiac GTO

400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1972-1973 Pontiac GTO

350 Pontiac V8
400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1963-1966 Pontiac LeMans

326 Pontiac V8
389 Pontiac V8

1967 Pontiac LeMans

326 Pontiac V8
400 Pontiac V8
428 Pontiac V8

1968-1969 Pontiac LeMans

350 Pontiac V8
400 Pontiac V8
428 Pontiac V8

1970-1974 Pontiac LeMans

350 Pontiac V8
400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1975 Pontiac LeMans

350 Pontiac V8
400 Pontiac V8

1976 Pontiac LeMans

350 Pontiac V8
400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1977 Pontiac LeMans

301 Pontiac V8
350 Pontiac V8
400 Pontiac V8

1979-1981 Pontiac LeMans

301 Pontiac V8

1977 Pontiac Phoenix

350 Pontiac V8

1959-1962 Pontiac Star Chief

389 Pontiac V8

1963-1966 Pontiac Star Chief

389 Pontiac V8
421 Pontiac V8

1961-1962 Pontiac Tempest

389 Pontiac V8

1963-1966 Pontiac Tempest

326 Pontiac V8
389 Pontiac V8

1967 Pontiac Tempest

326 Pontiac V8
400 Pontiac V8
428 Pontiac V8

1968-1969 Pontiac Tempest

350 Pontiac V8
400 Pontiac V8
428 Pontiac V8

1970 Pontiac Tempest

350 Pontiac V8
400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1960 Pontiac Ventura

389 Pontiac V8

1961 Pontiac Ventura

389 Pontiac V8
421 Pontiac V8

1971-1976 Pontiac Ventura

350 Pontiac V8

1977 Pontiac Ventura

301 Pontiac V8
350 Pontiac V8
