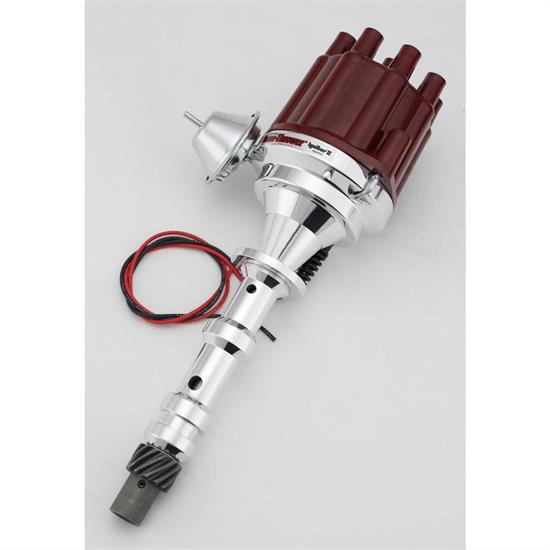

PerTronix D101701 Flame-Thrower Billet Distributor Ignitor II, Red
PerTronix D101701 Flame-Thrower Billet Distributor Ignitor II, Red

PerTronix D101701 Flame-Thrower Billet Distributor Ignitor II, Red

348 Chevy W-Series V8, 409 Chevy W-Series V8, Not Computer-Controlled Compatible, Red, Polished

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
PerTronix D101701 Flame-Thrower Billet Distributor Ignitor II, Red
PerTronix D101701 Flame-Thrower Billet Distributor Ignitor II, Red
Zoomed In Image
We estimate this item will ship on or before October 22nd.
Part # 447D101701
Save 50%
$274.99
$559.46
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 2 business days for PerTronix to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

Details

Computer-Controlled Compatible:
No
Cap Terminal Style:
Socket / Female
Advance Type:
Mechanical and Vacuum
Trigger Style:
Magnetic
Hall Effect:
Yes
Sync Signal:
No
Trigger Sensors:
Dual
Gear Material:
Steel
Gear Rotation:
Standard
Distributor Cap Color:
Red
Ignition Box Required:
No
Mechanical Tach Drive:
No
Slip Collar:
No
Housing Material:
Billet Aluminum
Housing Finish:
Polished
Emissions:
California EO Approved
Marine Use:
No
MFG. Part #:
D101701
Sold in Quantity:
Each
GTIN Code:
694342521776

Info

Flame-Thrower billet vacuum advance distributor with Ignitor II electronics for Chevy 348/409engines. Red female style cap.

Plug n play billet distributors are designed for maximum ignition performance and easy installation all at a price that you can afford. Replace your outdated points or electronic distributor with this performance proven distributor and which features the patented Ignitor® II electronics and a CNC machined 6061 T-6 polished billet housing.Features
• Integrated patented Ignitor II technology with adaptive dwell control.
• Cobalt magnets and Hall Effect trigger for stable timing and precise spark distribution.
• A powerful micro controller with adaptive dwell algorithms constantly adjust the dwell angle to maintain peak energy throughout the entire RPM range for increased high and low RPM performance.
• Ignitor II compensates for inherent electronic delay by adjusting the spark timing throughout the entire RPM range.
• Synchronized peak current and spark timing reduces heat build-up.
• Precision CNC machined billet housings are polished to a high luster.
• Tempered distributor shafts have low torsion displacement for accurate timing and longer life.
• Upper ball bearing and extra long oil impregnated bronze lower bushing work together to reduce friction and high RPM vibration.
• Precision stamped advance weights eliminate erratic timing.
• Adjustable mechanical advance with proprietary limiting functions permits multiple settings. Distributors are factory set with a performance advance curve and are provided with additional springs for custom advance curves.
• High dielectric strength cap with male or female brass terminals and premium rotor with brass contact.
• Compatible with most Capacitive Discharge Systems.
• Legal in all 50 states and Canada (C.A.R.B. E.O. #D-57-12). Note: Non vacuum advance distributors do not have an E.O. number and are not legal for sale or use on pollution controlled motor vehicles.
• Warranty: 30 months electronics / Limited 1 year mechanical. Flame-Thrower billet distributors are frequently used in tight engine compartments due to their Plug n Play design and relatively small size.Although our distributors fit their intended engine application, each vehicle application must be evaluated independently to insure adequate space for distributor fitment as well as air cleaner and hood clearance.

Installation Instructions (PDF)

Notes

  • PerTronix D101701 Flame-Thrower Electronic Distributor Billet Chevrolet 409 Plug and Play with Ignitor II Technology Vacuum Advance Red Cap
Some parts are not legal for use in California or other states with similar laws/regulations
