PerTronix 9MR-LS1 Details

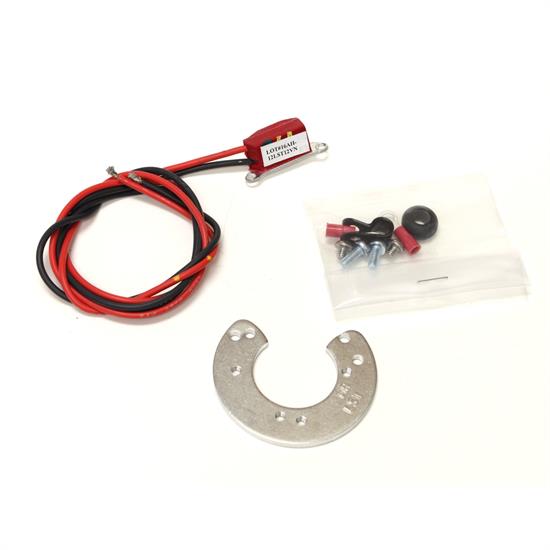

IGNITOR II FOR MARELLI DISTRIBUTORS S112, S139, S144, S145, S146, 147, S153. 4-CYLINDER

The Ignitor II has many of the same great feature that the Ignitor has, but its smarter. Ignitor II units sense the coil current level and use a powerful micro controller to adjust the dwell. Variable dwell helps to maintain peak energy throughout the entire RPM range.Features Ignitor II systems develop up to 4 times more energy between 3000 and 5000 RPM than standard ignition systems. High RPM performance is improved when used with the Flame-Thrower II super low resistance (0.6 ohms) 45,000 volt coil.
• Adaptive dwell maintains peak energy throughout the entire RPM range, reducing misfires while improving engine performance.
• Develops on average 4 times more available energy between 3000 and 5000 RPM, and 2 times more available plug voltage.
• Peak current level is reached just prior to spark for maximum energy without the heat build-up, increasing coil and module life.
• Adjusts spark timing at higher RPMs to compensate for the inherent electronic delay.
• Senses startup and develops more energy for quicker, easier starting. Built in reverse polarity and over current protection shuts down the system, preventing component damage.
• Legal in all 50 states and Canada (C.A.R.B. E.O. #D-57-2).
• Guaranteed for 30 months

  • PerTronix 9MR-LS1 Ignitor II Adaptive Dwell Control Marelli 4 cyl
  • Compared to points, averages 4 times more available energy between 3000 and 5000 RPM
  • Adaptive dwell maintains peak energy throughout the entire RPM range, reducing misfires while improving engine performance
  • Develops on average 4 times more available energy between 3000 and 5000 RPM, and 2 times more available plug voltage
  • Peak current level is reached just prior to spark for maximum energy without the heat build-up, increasing coil and module life
  • Adjusts spark timing at higher RPMs to compensate for the inherent electronic delay
  • Senses startup and develops more energy for quicker, easier starting. Built in reverse polarity and over current protection shuts down the system, preventing component damage
  • Legal in all 50 states and Canada (C.A.R.B. E.O. #D-57-2)
  • PerTronix 9MR-LS1 Ignitor II Adaptive Dwell Control Marelli 4 cyl
  • Compared to points, averages 4 times more available energy between 3000 and 5000 RPM
  • Adaptive dwell maintains peak energy throughout the entire RPM range, reducing misfires while improving engine performance
  • Develops on average 4 times more available energy between 3000 and 5000 RPM, and 2 times more available plug voltage
  • Peak current level is reached just prior to spark for maximum energy without the heat build-up, increasing coil and module life
  • Adjusts spark timing at higher RPMs to compensate for the inherent electronic delay
  • Senses startup and develops more energy for quicker, easier starting. Built in reverse polarity and over current protection shuts down the system, preventing component damage
  • Legal in all 50 states and Canada (C.A.R.B. E.O. #D-57-2)

Application

1974 Alfa-Romeo Spider V4 (Lobe sensor module, Not for use with solid core spark plug wires)
1964-69 Lancia Flavia Coupe V4 (Lobe sensor module, Not for use with solid core spark plug wires)
1965-78 Alfa-Romeo Guilia V4 (Lobe sensor module, Not for use with solid core spark plug wires)
1969-71 Porsche 911, E, S, T V6 (Lobe sensor module, Not for use with solid core spark plug wires)
1969-72 Alfa-Romeo Berlina V4 (Lobe sensor module, Not for use with solid core spark plug wires)
1969-73 Alfa-Romeo GT Veloce V4 (Lobe sensor module, Not for use with solid core spark plug wires)
1969-77 Fiat 125 Berlina, V4 (Lobe sensor module, Not for use with solid core spark plug wires)
1969-79 Alfa-Romeo Spider Veloce V4 (Lobe sensor module, Not for use with solid core spark plug wires)
1971-77 Fiat 124, 125 Special, 127 Berlina V4 (Lobe sensor module, Fit both single point and dual point distributors, Not for use with solid core spark plug wires)
1972-77 Fiat 132 Berlina, Berlina Special, GL V4 (Lobe sensor module, Not for use with solid core spark plug wires)
1972-79 Alfa-Romeo Alfetta V4 (Lobe sensor module, Not for use with solid core spark plug wires)
1973-77 Fiat 131 V4 (Lobe sensor module, Not for use with solid core spark plug wires)
1975-77 Fiat 132 GL, GLS V4 (Lobe sensor module, Not for use with solid core spark plug wires)
1975-78 Fiat 241 T, 242 V4 (Lobe sensor module, Not for use with solid core spark plug wires)
1976-78 Fiat 238B, Bi, 850 T V4 (Lobe sensor module, Not for use with solid core spark plug wires)

Charts

Warranty Information

Click for details

Speedway Motors cannot facilitate the return of defective PerTronix products as they have requested to handle these directly with the consumer. Purchasers of a product who wish to make a warranty claim based upon an alleged product defect should email the

PerTronix 9MR-LS1 Specifications

D-57-22
KEY SPECS
MFG. Part #9MR-LS1
BrandPerTronix
CARB EO#
GENERAL
GTIN Code694342538798
