Product Summary

194, 230, 250, 292, 199, 232, 258, 305

    Key Specs

    D-57-22
    MFG. Part #91162A
    BrandPerTronix
    CARB EO#

    Need To Know

    Free Shipping on Orders Over $149

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

    Details

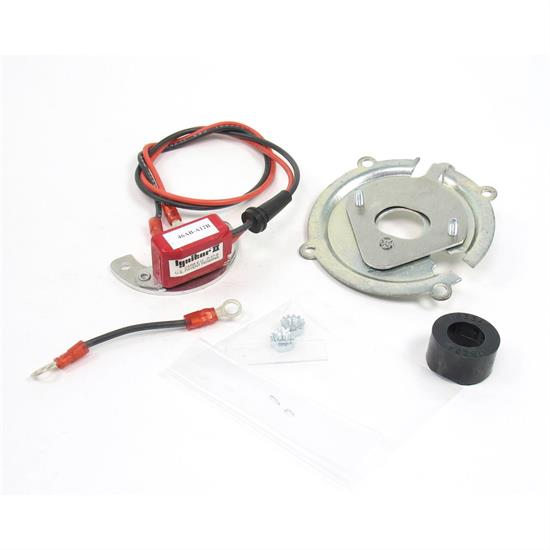

    The Ignitor II has many of the same great feature that the Ignitor has, but its smarter. Ignitor II units sense the coil current level and use a powerful micro controller to adjust the dwell. Variable dwell helps to maintain peak energy throughout the entire RPM range.

    Features

    Ignitor II systems develop up to 4 times more energy between 3000 and 5000 RPM than standard ignition systems. High RPM performance is improved when used with the Flame-Thrower II super low resistance (0.6 ohms) 45,000 volt coil.

    • Adaptive dwell maintains peak energy throughout the entire RPM range, reducing misfires while improving engine performance.
    • Develops on average 4 times more available energy between 3000 and 5000 RPM, and 2 times more available plug voltage.
    • Peak current level is reached just prior to spark for maximum energy without the heat build-up, increasing coil and module life.
    • Adjusts spark timing at higher RPMs to compensate for the inherent electronic delay.
    • Senses startup and develops more energy for quicker, easier starting. Built in reverse polarity and over current protection shuts down the system, preventing component damage.
    • Legal in all 50 states and Canada (C.A.R.B. E.O. #D-57-2).
    • Guaranteed for 30 months.

    • PerTronix 91162A Ignitor II Adaptive Dwell Control Delco 6 cyl with Vacuum Advance
    • Compared to points, averages 4 times more available energy between 3000 and 5000 RPM
    • Adaptive dwell maintains peak energy throughout the entire RPM range, reducing misfires while improving engine performance
    • Develops on average 4 times more available energy between 3000 and 5000 RPM, and 2 times more available plug voltage
    • Peak current level is reached just prior to spark for maximum energy without the heat build-up, increasing coil and module life
    • Adjusts spark timing at higher RPMs to compensate for the inherent electronic delay
    • Senses startup and develops more energy for quicker, easier starting. Built in reverse polarity and over current protection shuts down the system, preventing component damage
    • Legal in all 50 states and Canada (C.A.R.B. E.O. #D-57-2)
    • PerTronix 91162A Ignitor II Adaptive Dwell Control Delco 6 cyl with Vacuum Advance
    • Compared to points, averages 4 times more available energy between 3000 and 5000 RPM
    • Adaptive dwell maintains peak energy throughout the entire RPM range, reducing misfires while improving engine performance
    • Develops on average 4 times more available energy between 3000 and 5000 RPM, and 2 times more available plug voltage
    • Peak current level is reached just prior to spark for maximum energy without the heat build-up, increasing coil and module life
    • Adjusts spark timing at higher RPMs to compensate for the inherent electronic delay
    • Senses startup and develops more energy for quicker, easier starting. Built in reverse polarity and over current protection shuts down the system, preventing component damage
    • Legal in all 50 states and Canada (C.A.R.B. E.O. #D-57-2)

    Application

    1962-74 Pontiac All models V6 (Not for use with solid core spark plug wires)
    1963-74 AMC All models V6 (Not for use with solid core spark plug wires)
    1963-74 Chevrolet All models V6 (Mechanical advance under breaker plate, Not for use with solid core spark plug wires)
    1964-74 Checker Cab 230-250 cid. engine V6 (Mechanical advance under breaker plate, Not for use with solid core spark plug wires)
    1964-74 GMC Truck All models V6 (Mechanical advance under breaker plate, Screw down cap, Not for use with solid core spark plug wires)
    1965-66 Studebaker 194, 230 cid. engine V6 (Not for use with solid core spark plug wires)
    1966-74 Jeep All models V6 (Mechanical advance under breaker plate, Not for use with solid core spark plug wires)
    1966-74 Oldsmobile All models V6 (Mechanical advance under breaker plate, Not for use with solid core spark plug wires)
    1967-80 IHC Truck All models V6 (Not for use with solid core spark plug wires)
    1968-74 Buick All models V6 (Mechanical advance under breaker plate, Not for use with solid core spark plug wires)

    Charts

    Specifications

    D-57-22
    KEY SPECS
    MFG. Part #91162A
    BrandPerTronix
    CARB EO#
    GENERAL
    GTIN Code694342007652
    Sold in QuantityEach
