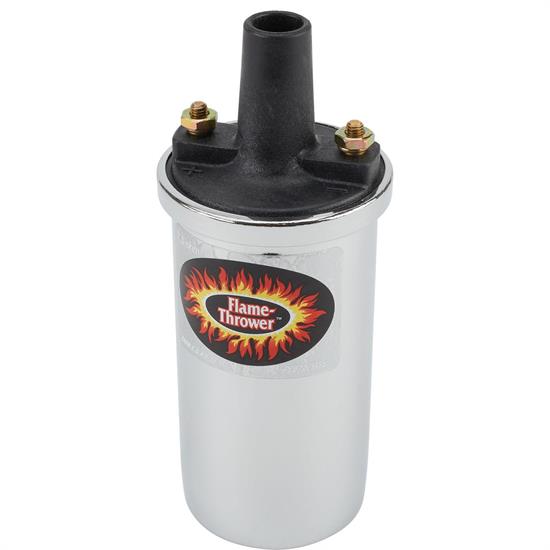

PerTronix 40001 Flame-Thrower Coil, Chrome
32 Reviews
|
5 Questions
- Features a smooth chrome finish
- For use with 12 volt inductive ignition systems
- Puts out 40,000 volts and has a 1.5 Ohm primary resistance
See More
$49.95
each
In Stock
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, 6.00" Overall Height, 115:1 Turns Ratio
- Features a smooth chrome finish
- For use with 12 volt inductive ignition systems
- Puts out 40,000 volts and has a 1.5 Ohm primary resistance
- Coils are internally resisted so they are compatible with many inductive ignition systems
- Its higher voltage allows larger spark plug gaps for added power, smoother response and better fuel economy
See more details
Need To Know
Free Shipping on Orders Over $149
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyPerTronix 40001 Details
PerTronix 40001 Details
The hotter the spark, the easier your engine will start, and this 40,000 volt coil is just the ticket to a quick start! Its higher voltage allows larger spark plug gaps for added power, smoother response and better fuel economy. These coils are internally resisted so they are compatible with many inductive ignition systems.
- Smooth chrome finish
- 40,000 volts
- For use with 12 volt inductive ignition systems.
- 1.5 Ohm primary resistance
- Legal in all 50 states and Canada
Charts
Guides & Documents
PerTronix 40001 Specifications
PerTronix 40001 Specifications
D-57-21
| KEY SPECS | |
|---|---|
| MFG. Part # | 40001 |
| Brand | PerTronix |
| Material Type | Steel |
| CARB EO# | |
| GENERAL | |
| Overall Height | 6.00" |
| Outside Diameter | 2.25" |
| Cap Type | Socket / Female |
| Cap Terminal Style | Socket / Female |
| Maximum Voltage | 40,000 volts |
| Turns Ratio | 115:1 |
| Voltage | 12 volts |
| Resistance | 1.5 ohms |
| Secondary Resistance | 10.60 ohms |
| Inductance | 6.40 |
| Peak Current | 7.2 |
| Spark Duration | 1.5 |
| Finish | Chrome |
| GTIN Code | 694342004859 |
| Sold in Quantity | Each |
