Product Summary

Many Engines

  • The ignitor is designed to replace the breaker point and troublesome factory electronic ignitions
  • Will provide you with a dependable, self contained and maintenance free electronic ignition system
  • Has a temperature range of -50 to 300F
  • Optimal performance achieved when used with our Flame-Thrower 40,000 volt coil
  • It works great in stock point-type distributors as a trigger for multi-spark CD ignitions

Key Specs

D-57-22
MFG. Part #1181LS
BrandPerTronix
CARB EO#

Need To Know

Free Shipping on Orders Over $149

Shipping Policies & FAQs

Quick and Easy Returns

Return Policy

Details

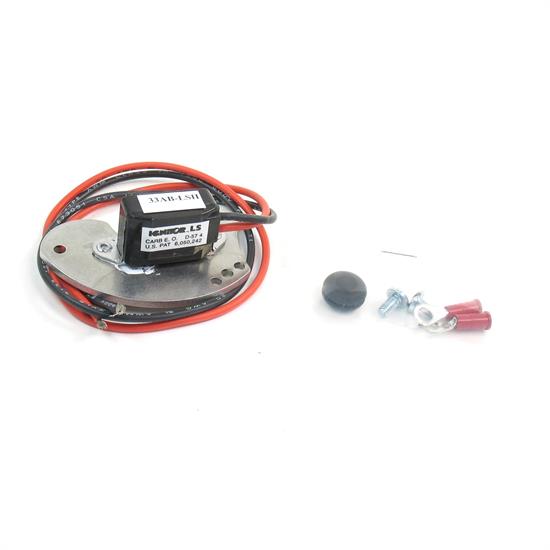

For over thirty years, the Ignitor has proven itself in applications ranging from race cars to tractors. The Ignitor replaces breaker point and troublesome factory electronic ignitions with a dependable, self contained and maintenance free electronic ignition system. The Ignitor has been called the "stealth" ignition because of its quick installation and nearly undetectable presence under your distributor cap.

Features
  • Operating Voltage: 8-V to 16-V DC
  • Temperature Range: -50 to 300F
  • RPM Range: 0 to 15,000 RPM
  • Can be used with most point-type coils, optimal performance achieved when used with our Flame-Thrower 40,000 volt coil.
  • Works great in stock point-type distributors as a trigger for multi-spark CD ignitions, eliminating the need for expensive aftermarket distributors.
  • No complicated wiring makes installation easy.
  • A solid-state electronic ignition system. "Never change points again!"

  • PerTronix 1181LS Ignitor Delco Lobe Sensor 8 cyl
  • Delivers twice the voltage to the spark plugs, increasing horsepower, fuel economy, and spark plug life
  • 2:1 improvement over points in current fall time for increased coil output
  • Rotating cobalt magnets trigger a Hall Effect integrated circuit . ...no points to burn, ...no moving parts to wear out
  • Epoxy molding makes our module impervious to dirt, oil, grease and moisture
  • Fits entirely inside the distributor
  • No "black box to clutter the engine compartment
  • Stable timing ...no need for any adjustments
  • Will trigger most multi-spark CD ignitions
  • Available for 6 and 12-volt negative and positive ground systems
  • Legal in all 50 states and Canada (C.A.R.B. E.O. #D-57-2)
  • PerTronix 1181LS Ignitor Delco Lobe Sensor 8 cyl
  • Delivers twice the voltage to the spark plugs, increasing horsepower, fuel economy, and spark plug life
  • 2:1 improvement over points in current fall time for increased coil output
  • Rotating cobalt magnets trigger a Hall Effect integrated circuit . ...no points to burn, ...no moving parts to wear out
  • Epoxy molding makes our module impervious to dirt, oil, grease and moisture
  • Fits entirely inside the distributor
  • No "black box to clutter the engine compartment
  • Stable timing ...no need for any adjustments
  • Will trigger most multi-spark CD ignitions
  • Available for 6 and 12-volt negative and positive ground systems
  • Legal in all 50 states and Canada (C.A.R.B. E.O. #D-57-2)

Application

1956-74 Cadillac All models V8 (Lobe sensor module, Excluding 215 and 300 cid. engine, Mechanical advance at top of shaft, Not for use with solid core spark plug wires)
1956-74 Oldsmobile All models V8 (Lobe sensor module, Excluding 215 and 300 cid. engine, Mechanical advance at top of shaft, Not for use with solid core spark plug wires)
1957-74 Chevrolet All models V8 (Lobe sensor module, Mechanical advance at top of shaft, Not for use with solid core spark plug wires, Complete “Stock-Look” distributors available on page 42)
1957-74 GMC Truck All models V8 (Lobe sensor module, Mechanical advance at top of shaft, Fit both single point and dual point distributors, Not for use with solid core spark plug wires, Complete “Stock-Look” distributors available on page 42)
1957-74 Pontiac All models V8 (Lobe sensor module, Excluding 215 and 300 cid. engine, Mechanical advance at top of shaft, Not for use with solid core spark plug wires)
1957-74 Buick All models V8 (Lobe sensor module, Excluding 215 and 300 cid. engine, Mechanical advance at top of shaft, Not for use with solid core spark plug wires)

Charts

Specifications

D-57-22
KEY SPECS
MFG. Part #1181LS
BrandPerTronix
CARB EO#
GENERAL
GTIN Code694342015206
