Patriot Exhaust H8440 1953-1956 F100 Fenderwell Y-Block Headers, Plain

5 Questions

Will fit 1953-1956 Ford F100 with the 272-312 Y-Block
Features 1-1/2" primaries and 3" collectors
Collector is angled down and aft at approximately 40°

$389.95

In Stock

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

272, 292, 312, Fenderwell Header Tube Type, Steel

Will fit 1953-1956 Ford F100 with the 272-312 Y-Block
Features 1-1/2" primaries and 3" collectors
Collector is angled down and aft at approximately 40°
Fender well exit style design
Made from steel and has a painted finish for added durability

See more details

Key Specs

Header Tube Type	Fenderwell
Finish	Hi-Temp Black
Flange Style	Standard
Primary Tube Diameter	1-1/2"
Material Type	Steel

See more specs

Need To Know

This Product Will Ship Free

Need help?

Quick and Easy Returns

Patriot Exhaust H8440 Details

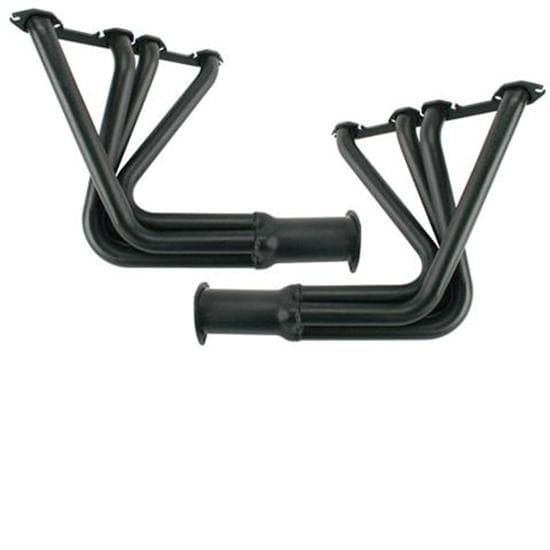

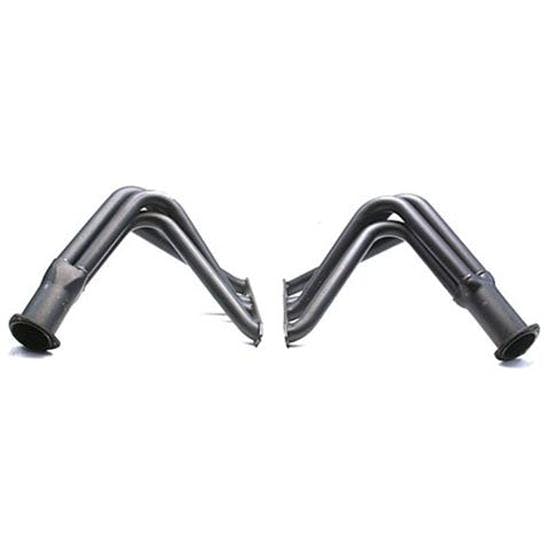

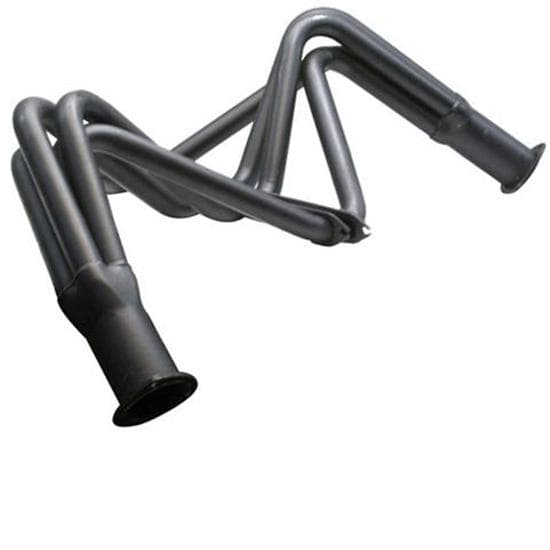

These fender well headers are a fender well exit style and are designed to fit 1953-1956 Ford pick-ups with a Ford 272-312 Y-Block engine. Features 1-1/2" primaries and 3" collectors. This Ford 272-312 Y-Block collector is angled down and aft at approximately 40°.

Charts

Header Dimensions (GIF)

Guides & Documents

Choosing the Right Headers

CA Prop 65

CARB warning

Patriot Exhaust H8440 Specifications

KEY SPECS
MFG. Part #	H8440
Brand	Patriot Exhaust
Header Tube Type	Fenderwell
Finish	Hi-Temp Black
Flange Style	Standard
Primary Tube Diameter	1-1/2"
Material Type	Steel
Color	Black
Weld-Up	No
Exhaust Port Shape	D-port
Collector Diameter	3 Inch
Hardware Included	Yes
Gasket(s) Included	Yes
Collector Attachment Type	3-bolt flange
Collector Reducers Included	Yes
Collector Reducer Exit Diameter	2.25"

GENERAL
Speedway Motors Catalog Part #	930-8440
Collector Length	6.75"
Flange Thickness	.31"
Port Height	1.27"
Port Width	1.55"
Drivers Side Dimension A	19.1"
Drivers Side Dimension B	7"
Drivers Side Dimension C	20.25"
Passenger Side Dimension A	19.1"
Passenger Side Dimension B	7"
Passenger Side Dimension C	20.25"
Sold in Quantity	Pair
Notes	Includes a pair of reducers (3.00" to 2.25")
