#9308440

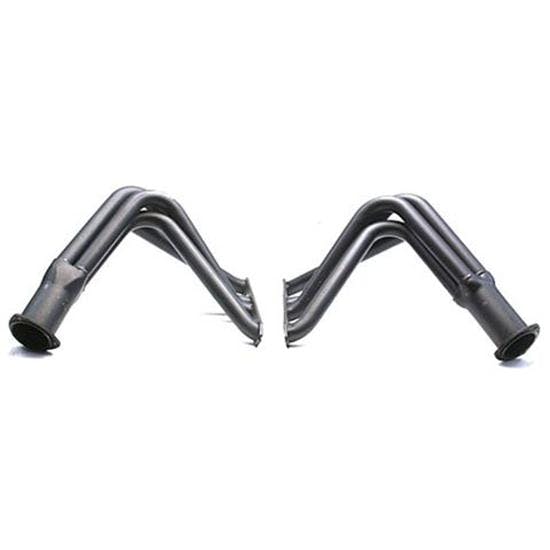

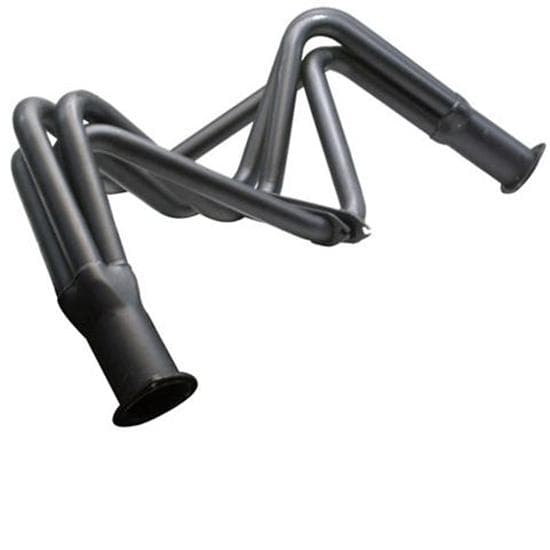

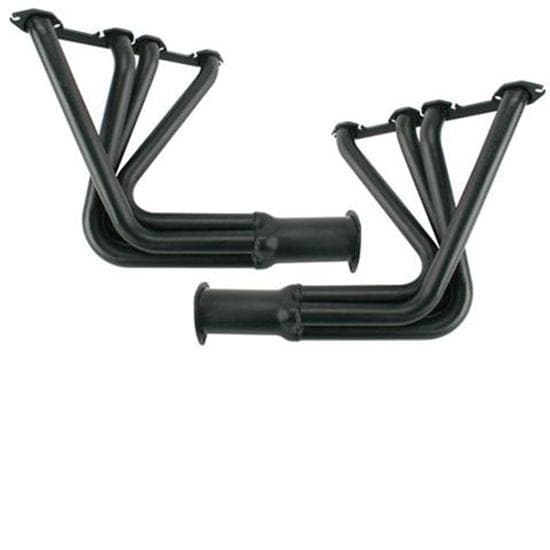

Patriot Exhaust H8440 1953-1956 F100 Fenderwell Y-Block Headers, Plain
- Will fit 1953-1956 Ford F100 with the 272-312 Y-Block
- Features 1-1/2" primaries and 3" collectors
- Collector is angled down and aft at approximately 40°
$439.25
pair
In Stock
$455.35
Save $16.10
Garage Sale alternatives: from $299.99
Quantity
Need Help? Call to Order
Add to a list
Share
Select a vehicle and engine to verify Fitment
Select Vehicle
Select Engine
Product Summary
Fenderwell Header Tube Type, D-port Exhaust Port Shape
- Will fit 1953-1956 Ford F100 with the 272-312 Y-Block
- Features 1-1/2" primaries and 3" collectors
- Collector is angled down and aft at approximately 40°
- Fender well exit style design
- Made from steel and has a painted finish for added durability
Key Specs
| Header Tube Type | Fenderwell |
| Exhaust Port Shape | D-port |
| Flange Style | Standard |
| Primary Tube Diameter | 1-1/2" |
| Material Type | Steel |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyPatriot Exhaust H8440 Details
Patriot Exhaust H8440 Details
These fender well headers are a fender well exit style and are designed to fit 1953-1956 Ford pick-ups with a Ford 272-312 Y-Block engine. Features 1-1/2" primaries and 3" collectors. This Ford 272-312 Y-Block collector is angled down and aft at approximately 40°.
Charts

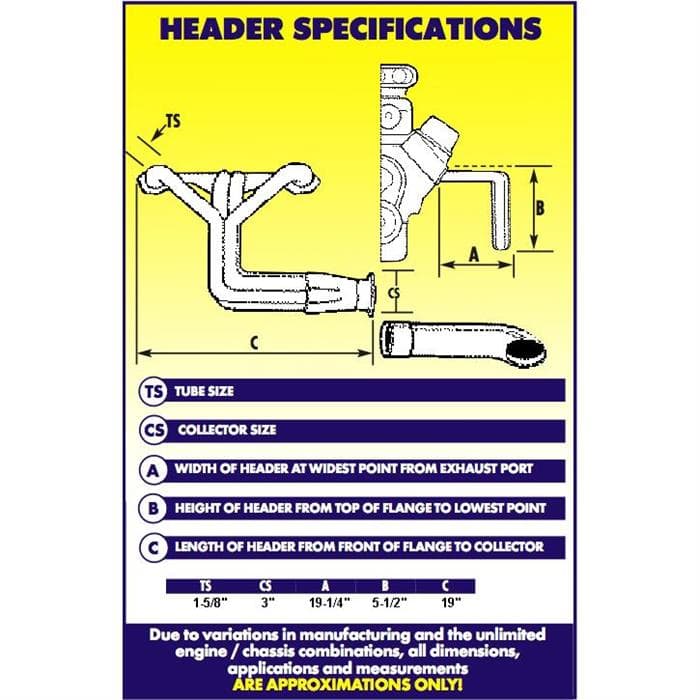

Header Dimensions (GIF)
Guides & Documents
Patriot Exhaust H8440 Specifications
Patriot Exhaust H8440 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | H8440 |
| Brand | Patriot Exhaust |
| Header Tube Type | Fenderwell |
| Exhaust Port Shape | D-port |
| Flange Style | Standard |
| Primary Tube Diameter | 1-1/2" |
| Material Type | Steel |
| Color | Black |
| Weld-Up | No |
| Collector Diameter | 3 Inch |
| Finish | Hi-Temp Black |
| Collector Attachment Type | 3-bolt flange |
| Hardware Included | Yes |
| Gasket(s) Included | Yes |
| Collector Reducers Included | Yes |
| Collector Reducer Exit Diameter | 2.25" |
| GENERAL | |
| Collector Length | 6.75" |
| Flange Thickness | .31" |
| Port Height | 1.27" |
| Port Width | 1.55" |
| Drivers Side Dimension A | 19.1" |
| Drivers Side Dimension B | 7" |
| Drivers Side Dimension C | 20.25" |
| Passenger Side Dimension A | 19.1" |
| Passenger Side Dimension B | 7" |
| Passenger Side Dimension C | 20.25" |
| Sold in Quantity | Pair |
| Notes | Includes a pair of reducers (3.00" to 2.25") |
