Rebate

Patriot Exhaust H8086-B Tight Tuck Rear Swept Style LS Headers

Rebate

#9308086

Patriot Exhaust H8086-B Tight Tuck Rear Swept Style LS Headers

Name: Patriot Exhaust H8086-B Tight Tuck Rear Swept Style LS Headers
Brand: Patriot Exhaust
SKU: 9308086
Price: 490.85 USD
Availability: LimitedAvailability
Rating: 4.3 (4 reviews)

4 Reviews

2 Questions

Comes with a round style port flange
Has a 1.75" tube diameter and a 2.5" collector diameter
Made entirely of steel with a black ceramic coating for added protection

$490.85

/pair

In Stock

$539.94

Save $49.09

Order soon, only 3 left in stock!

Quantity

Need Help? Call to Order

Add to a list

Select an engine to verify Fitment

Select Engine

Product Summary

Universal Fit, Block Hugger Header Tube Type, Steel

Comes with a round style port flange
Has a 1.75" tube diameter and a 2.5" collector diameter
Made entirely of steel with a black ceramic coating for added protection
Engineered to fit in the tightest of engine compartments and clear most stock motor mounts
Features durable 16-gauge tubing and comes complete with gaskets, header bolts and collector reducers

Rebates Available

See rebate details

See more details

Key Specs

MFG. Part #	H8086-B
Header Tube Type	Block Hugger
Exhaust Port Shape	Round
Flange Style	Standard
Primary Tube Diameter	1-3/4"

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Patriot Exhaust H8086-B Details

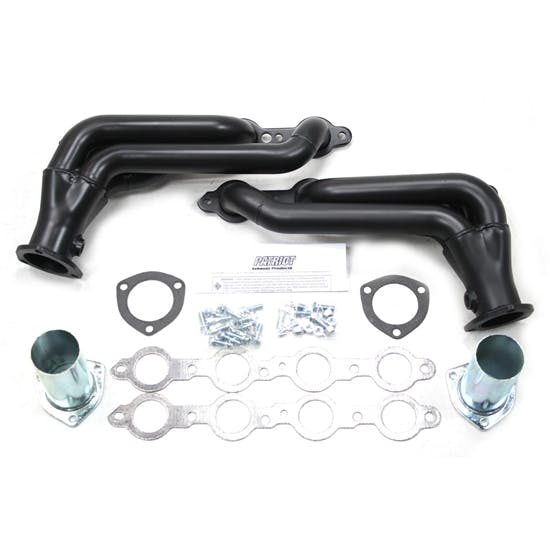

Tight Tucks fit in the tightest of engine compartments and clear most stock motor mounts. Features durable 16-gauge tubing and comes complete with gaskets, header bolts and collector reducers.

Block hugger tube style
1.75" tube diameter
2.50" collector diameter
Round port flange style
Steel construction
Black ceramic finish
Sold as a pair

Rebates

Aeromotive & PerTronix Black Friday 10% Off Sale

Black Friday Savings Are Here! From November 1 2026 through November 30 2026, save 10% on all Aeromotive and PerTronix products, including top performance brands like Doug's Headers, Taylor Cable, and JBA Performance Exhaust. Whether you're upgrading your fuel system, ignition components, headers, spark plug wires, or exhaust setup, this limited-time offer makes it easy to get premium performance parts at a great price. No coupon required, just shop qualifying Aeromotive and PerTronix brands and enjoy instant savings all month long.

Guides & Documents

Choosing the Right Headers

Headers Installation Instructions (9308086)

Warranty (Patriot Exhaust)

CARB Warning

For race/ off road use only

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

CARB warning

Patriot Exhaust H8086-B Specifications

KEY SPECS
MFG. Part #	H8086-B
Brand	Patriot Exhaust
Header Tube Type	Block Hugger
Exhaust Port Shape	Round
Flange Style	Standard
Primary Tube Diameter	1-3/4"
Material Type	Steel
Color	Black
Weld-Up	No
Collector Diameter	2-1/2 Inch
Finish	Ceramic Coated
Hardware Included	Yes
Gasket(s) Included	Yes
Collector Reducers Included	No
Collector Reducer Exit Diameter	1.75"
Collector Attachment Type	3-bolt flange

GENERAL
Sold in Quantity	Pair
GTIN Code	694342542672
Drivers Side Dimension A	4.5"
Drivers Side Dimension B	8"
Passenger Side Dimension A	4"
Passenger Side Dimension B	8.5"

Ratings & Reviews

4.3

4 Reviews

Overall Assessment

Customers believe that the product excels in terms of its fit and compatibility with various chassis, especially custom ones where other similar products failed. They acknowledge that some tweaking might be required to achieve optimal fit, such as repositioning O2 bungs and tolerating minor interference with the frame. The finish, advertised as "black ceramic", seems more akin to high-temp paint, indicating good quality. Users appreciate the additional space for plug wires, however, they suggest improvements in the flange material. Despite minor setbacks, customers ultimately recommend it for its superior fitting ability.

Write A Review

4.2

4 reviews

Filter by Ratings

Sort Reviews

Worked perfectly for my LS1 / Jeep swap

5.0

5 months ago

John

Bowie Texas

Verified

Again, I needed tight tuck headers to fit on my 5.7 LS1 Jeep Wrangler swap. They fit perfectly and cleared the firewall and frame.

Would Recommend

Glad to find it fits

4.0

4 years ago

Wally

Washington state

Verified

Fit my custom chassis with minimal mod to car body mount where other headers wouldn't clear frame or engine mounts. O2 bungs not in correct position, will need to plug and a new one further downstream. Finish advertised as "black ceramic" but more similar to high-temp paint. Room for plug wires, flange could use thicker material. All in all, thankful it fits and hope it works.

Would Recommend

Great product but not for my app.

4.0

5 years ago

king pin

Albany . Oregon

Verified

Bought for ls3 conversion in a 1951 chevy pickup , would have fit if not the the collector flanges hit the frame , could have cut them off and re positioned so bolt hole ear would clear but had different headers that were a better fit .

Would Recommend

62 c10 with 6.0 vortec

4.0

9 years ago

Zahnny

Methuen MA

Verified

They almost fit but the driver side was just touching frame so I had to pie cut and weld the collector

Would Recommend

Showing 4 of 4 reviews

Questions & Answers

2 Questions • 2 Answers

Sort Questions

WOULD THIS FIT A 93 Lt1 corvette? Have that set up in my 49 Chevy

by Silvio

• 8 years ago

1 answer

View Answer

Will these headers 930- 8086 Fit 2004 LS LM4 5.3 Vortec 1956 Chev 210 with 605 steering box

by Jim

• 9 years ago

1 answer

View Answer

2 of 2 questions shown

Fitment

2004 Buick Rainier

GM LM4

2004-2005 Cadillac CTS

GM LS6

2006-2007 Cadillac CTS

GM LS2

2009-2014 Cadillac CTS

GM LSA

2002-2011 Cadillac Escalade

GM LM7
GM LQ9

2012 Cadillac Escalade

6.2 Chevy LS V8

2003-2006 Cadillac Escalade ESV

GM LM7
GM LQ9

2007-2012 Cadillac Escalade ESV

6.2 Chevy LS V8

2002-2006 Cadillac Escalade EXT

GM LM7
GM LQ9

2007-2012 Cadillac Escalade EXT

6.2 Chevy LS V8

2007-2011 Chevy Avalanche

GM L76
GM LC9
GM LMG
GM LY5

2012-2013 Chevy Avalanche

GM LY5

2002-2006 Chevy Avalanche 1500

GM LM7

2000-2002 Chevy C1500

4.8 Chevy LS V8
GM LM7
GM LQ4

1998-2002 Chevy Camaro

GM LS1

2010-2014 Chevy Camaro

GM LS3

1997-2000 Chevy Corvette

GM LS1

2001-2004 Chevy Corvette

GM LS1
GM LS6

2005-2007 Chevy Corvette

GM LS2

2008-2013 Chevy Corvette

GM LS3

2014 Chevy Corvette

6.2 Chevy LT V8

2015-2018 Chevy Corvette

Chevy LT V8 Gen V 6.2 LT1
Chevy LT V8 Gen V 6.2 LT4

2006-2009 Chevy Impala

GM LS4

2006-2007 Chevy Monte Carlo

GM LS4

1999 Chevy Silverado 1500

4.8 Chevy LS V8
GM LM7

2000-2011 Chevy Silverado 1500

4.8 Chevy LS V8
GM L20
GM LM7
GM LY2

2012-2014 Chevy Silverado 1500

4.8 Chevy LS V8
GM LM7

2007 Chevy Silverado 1500 Classic

GM LQ4

2001-2003 Chevy Silverado 1500 HD

GM LQ4

2005-2006 Chevy Silverado 1500 HD

GM LQ4

2007 Chevy Silverado 1500 HD

GM LQ9

2007 Chevy Silverado 1500 HD Classic

GM LQ4

2000-2004 Chevy Silverado 2500

GM LM7
GM LQ4

2005 Chevy Silverado 2500

GM LQ9

2001-2011 Chevy Silverado 2500 HD

GM LQ4

2007 Chevy Silverado 2500 HD Classic

GM LQ4

2001-2006 Chevy Silverado 3500

GM LQ4

2007 Chevy Silverado 3500 Classic

GM LQ4

2007-2011 Chevy Silverado 3500 HD

GM LQ4

2014-2017 Chevy SS

GM LS3

2003-2004 Chevy SSR

GM LM4

2014 Chevy Suburban

GM LMG
GM LY5

2000-2001 Chevy Suburban 1500

GM LM7

2002-2006 Chevy Suburban 1500

GM L59
GM LM7

2007-2009 Chevy Suburban 1500

GM LC9
GM LMG
GM LY5

2010-2011 Chevy Suburban 1500

GM LC9
GM LMG

2012-2014 Chevy Suburban 1500

GM LMG
GM LY5

2000-2006 Chevy Suburban 2500

GM LQ4

2012-2013 Chevy Suburban 2500

GM LMG
GM LY5

2000-2006 Chevy Tahoe

4.8 Chevy LS V8
GM L59
GM LM7

2007 Chevy Tahoe

4.8 Chevy LS V8
GM LMG
GM LY5

2008 Chevy Tahoe

6.2 Chevy LS V8
GM LC9
GM LMG

2009-2011 Chevy Tahoe

GM LC9
GM LMG

2012-2014 Chevy Tahoe

GM LMG
GM LY5

2002-2005 Chevy Trailblazer

GM LH6

2006-2009 Chevy Trailblazer

GM LS2

2002-2009 GMC Envoy

GM LM4

2002-2006 GMC Envoy XL

GM LM4

2004-2005 GMC Envoy XUV

GM LM4

2001-2005 GMC Savana 1500

4.8 Chevy LS V8
GM LM7
GM LQ4

2006 GMC Savana 1500

4.8 Chevy LS V8
GM L33
GM LM7
GM LQ4

2007-2014 GMC Savana 1500

4.8 Chevy LS V8
GM L33
GM LQ4

2001-2005 GMC Savana 2500

4.8 Chevy LS V8
GM LM7
GM LQ4

2006-2013 GMC Savana 2500

4.8 Chevy LS V8
GM L33
GM LQ4

2002-2005 GMC Savana 3500

4.8 Chevy LS V8
GM LM7
GM LQ4

2006-2013 GMC Savana 3500

4.8 Chevy LS V8
GM L33
GM LQ4

1999-2011 GMC Sierra 1500

GM L20
GM LC9
GM LMG

2007 GMC Sierra 1500 Classic

GM L33
GM L59
GM LM7

2001-2003 GMC Sierra 1500 HD

GM LQ4

2005-2006 GMC Sierra 1500 HD

GM LQ4

2007 GMC Sierra 1500 HD Classic

GM LQ4

1999-2001 GMC Sierra 2500

GM LM7
GM LQ4

2002-2004 GMC Sierra 2500

GM LQ4

2001-2011 GMC Sierra 2500 HD

GM LQ4

2007 GMC Sierra 2500 HD Classic

GM LQ4

2001-2006 GMC Sierra 3500

GM LQ4

2007 GMC Sierra 3500 Classic

GM LQ4

2001 GMC Sierra C3

GM LQ4

2000-2011 GMC Yukon

4.8 Chevy LS V8
GM L20
GM LM7
GM LY2

2012-2013 GMC Yukon

GM LC9
GM LMG

2000 GMC Yukon XL 1500

GM LM7

2001-2011 GMC Yukon XL 1500

GM L59
GM LM7
GM LQ4

2000-2011 GMC Yukon XL 2500

GM LQ4

2003-2007 Hummer H2

GM LQ4

2008-2009 Hummer H2

6.2 Chevy LS V8

2008-2009 Hummer H3

GM LH8

2009 Hummer H3T

GM LH8

1998-2002 Pontiac Firebird

GM LS1

2009 Pontiac G8

GM LS3

2004 Pontiac GTO

GM LS1

2005-2006 Pontiac GTO

GM LS2
