Patriot Exhaust H8076 Shorty Header, 67-69 Camaro LS1/LS6, Black

Rebate

#447H8076

Patriot Exhaust H8076 Shorty Header, 67-69 Camaro LS1/LS6, Black

Name: Patriot Exhaust H8076 Shorty Header, 67-69 Camaro LS1/LS6, Black
Brand: Patriot Exhaust
SKU: 447H8076
Price: 407.67 USD
Availability: InStock

Write a Review

1 Question

$407.67

/set

Factory Shipped

$452.97

Save $45.30

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle and engine to verify Fitment

Select Vehicle

Select Engine

Product Summary

Shorty Header Tube Type, Round Exhaust Port Shape

Rebates Available

See rebate details

See more details

Key Specs

MFG. Part #	H8076
Header Tube Type	Shorty
Exhaust Port Shape	Round
Flange Style	Standard
Primary Tube Diameter	1-5/8"

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Patriot Exhaust H8076 Details

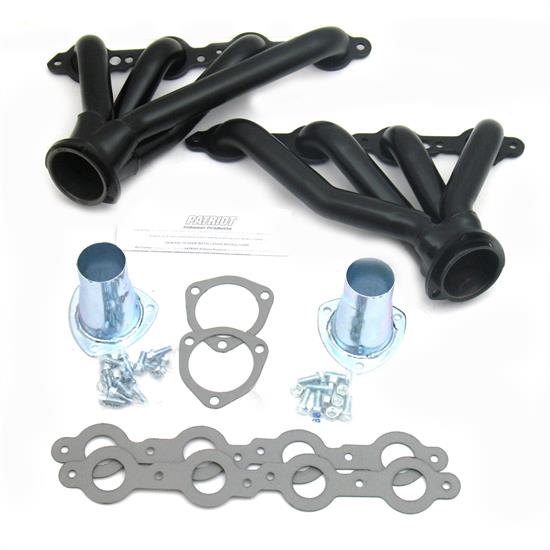

Clipster Header for Chevy Camaro (1967-69) and Nova (1968-74) for LS1 / LS6 engine swap, raw

Clippster style headers are perfect for grafting modern uni-body front clip suspensions to street rods, muscle cars and trucks. Clippster headers use longer primaries than Tight Tucks, yet shorter than full length headers. Collectors exit toward the rear of the engine compartment providing excellent ground clearance on "slammed" applications as well as clearing steering and suspension components. Please see our online catalog for specific information like tube size, port shape and collector size.

Patriot offers headers for many applications at prices you can afford.
Durable 18-gauge tubing
Comes complete with gaskets, header bolts and collector reducers.
Available in three finishes; raw steel for individual customizing, Hi-Temp Black coating or Metallic Ceramic Thermal Barrier coating
Limited One Year Warranty

Patriot Exhaust H8076 1 5/8" Shorty Header Chevrolet Camaro LS1/LS6 Swap 67-69 Hi-Temp Black Coating

Patriot Exhaust H8076 1 5/8" Shorty Header Chevrolet Camaro LS1/LS6 Swap 67-69 Hi-Temp Black Coating

Charts

Installation Instructions (PDF)

Rebates

Aeromotive & PerTronix Black Friday 10% Off Sale

Black Friday Savings Are Here! From November 1 2026 through November 30 2026, save 10% on all Aeromotive and PerTronix products, including top performance brands like Doug's Headers, Taylor Cable, and JBA Performance Exhaust. Whether you're upgrading your fuel system, ignition components, headers, spark plug wires, or exhaust setup, this limited-time offer makes it easy to get premium performance parts at a great price. No coupon required, just shop qualifying Aeromotive and PerTronix brands and enjoy instant savings all month long.

Guides & Documents

Headers Installation Instructions (447H8076)

Warranty (Patriot Exhaust)

CARB Warning

For race/ off road use only

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

CARB warning

Patriot Exhaust H8076 Specifications

KEY SPECS
MFG. Part #	H8076
Brand	Patriot Exhaust
Header Tube Type	Shorty
Exhaust Port Shape	Round
Flange Style	Standard
Primary Tube Diameter	1-5/8"
Material Type	Steel
Color	Black
Weld-Up	No
Collector Diameter	2-1/2 Inch
Finish	Hi-Temp Black
Hardware Included	Yes
Gasket(s) Included	Yes

GENERAL
Sold in Quantity	Pair
GTIN Code	694342534318
