Product Summary

Shorty Header Tube Type, Ceramic Coated, Steel, Silver

    Key Specs

    MFG. Part #H8073-1
    BrandPatriot Exhaust
    Header Tube TypeShorty
    FinishCeramic Coated
    Material TypeSteel

    Need To Know

    This Product Will Ship Free

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

    Details

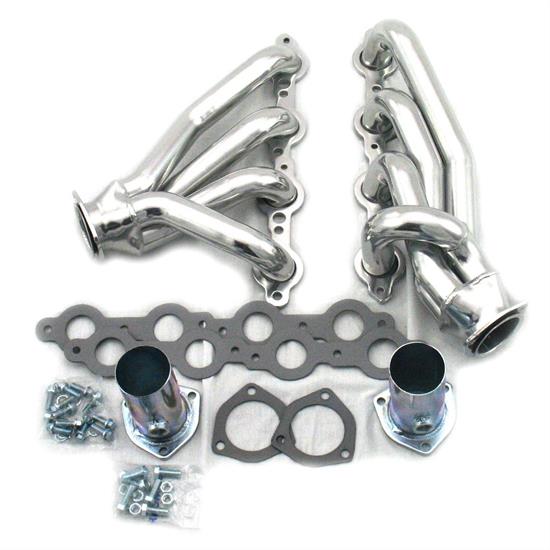

    Clippster style headers are perfect for grafting modern unit-body front clip suspensions to street rods, muscle cars and trucks. Clippster headers use longer primaries than Tight Tucks, yet shorter than full length headers. Collectors exit toward the rear of the engine compartment providing excellent ground clearance on "slammed" applications as well as clearing steering and suspension components.

    • Mid length or "clippster" headers provide improved ground clearance for popular muscle cars and street rods.
    • Durable 16 and 18 gauge tubing
    • Comes complete with gaskets, header bolts and collector reducers.
    • Available in three finishes; raw steel for individual customizing, Hi-Temp Black Coating or Metallic Ceramic Thermal Barrier Coating
    • Limited One Year Warranty
    • Patriot Exhaust H8073-1 1 5/8" Clippster Header Chevrolet S-10 LS1/LS6 82-95 Metallic Ceramic Coating
    • Collector: 2 1/2"
    • Port: SAP
    • Primary: 1 1/2"
    • Engine Swap
    • LS1/LS6 engine
    • Use 66 1/2 or later frame Brkts
    • Reducers provided with O2 bungs
    • with Column Shift
    • with A/C
    • Patriot Exhaust H8073-1 1 5/8" Clippster Header Chevrolet S-10 LS1/LS6 82-95 Metallic Ceramic Coating
    • Collector: 2 1/2"
    • Port: SAP
    • Primary: 1 1/2"
    • Engine Swap
    • LS1/LS6 engine
    • Use 66 1/2 or later frame Brkts
    • Reducers provided with O2 bungs
    • with Column Shift
    • with A/C

    Application

    1991-1995 Chevrolet Blazer
    1983-1994 Chevrolet S10 Blazer
    1982-1995 Chevrolet S10
    1982-1995 GMC Jimmy
    1983-1991 GMC S15 Jimmy
    1982-1990 GMC S15

    Guides & Documents

    CARB Warning

    For race/ off road use or for use on pre-1966 vehicles.

    Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway, or if installed in vehicles model-year 1965 or older; motorcycles model-year 1977 or older; or off-highway recreational vehicles (such as off-road motorcycles and all-terrain vehicles) model-year 1996 and older. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

    Specifications

    KEY SPECS
    MFG. Part #H8073-1
    BrandPatriot Exhaust
    Header Tube TypeShorty
    FinishCeramic Coated
    Material TypeSteel
    GENERAL
    Flange StyleStandard
    Primary Tube Diameter1-5/8"
    ColorSilver
    Weld-UpNo
    Exhaust Port ShapeRound
    Collector Diameter2-1/2 Inch
    Hardware IncludedYes
    Gasket(s) IncludedYes
    Sold in QuantityPair
    GTIN Code694342522056
