Painless Wiring 60510 86–95 5.0L Fuel Injection Wiring Harness

#91060510

Painless Wiring 60510 86–95 5.0L Fuel Injection Wiring Harness

Name: Painless Wiring 60510 86–95 5.0L Fuel Injection Wiring Harness
Brand: Painless Wiring
SKU: 91060510
Price: 534.99 USD
Availability: InStock
Rating: 4 (1 reviews)

1 Review

2 Questions

Includes 8 fuses with 2 ignition & 1 fuel pump relay
Data link connector and check engine light is included
The harness has a total length of 4 feet between engine and ECM

$534.99

/each

In Stock

Quantity

Need Help? Call to Order

Add to a list

Select an engine to verify Fitment

Select Engine

Product Summary

8 Number of Circuits

Includes 8 fuses with 2 ignition & 1 fuel pump relay
Data link connector and check engine light is included
The harness has a total length of 4 feet between engine and ECM
There are printed wire tags on all connectors and open ended wires
This wiring harness is specially designed for the 1986-95 5.0L Ford

See more details

Key Specs

MFG. Part #	60510
Brand	Painless Wiring
Injection Style	Sequential multi-port
Drive-By-Wire Capable	No
Injector Connector	Jetronic / Minitimer (EV1)

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Painless Wiring 60510 Details

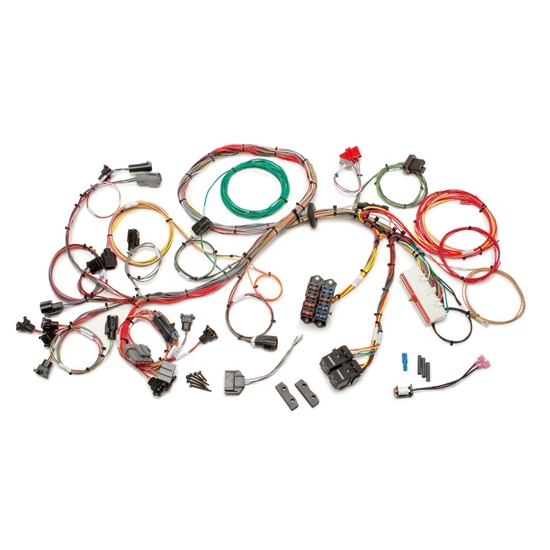

This harness from Painless Performance is designed for 1986-1995 Ford 5.0 HO Mass Air Flow EFI engines. You must use the 1986-1993 MAF and Distributor. Included with this harness is an 8 circuit modular fuse block, detailed step-by-step manual, and Ford color coded wires with labels for easy installation. This standard length harness allows four feet from the back of the intake manifold to where the fuse block and ECM mount.

1986-1989 1/2 must add MAF (mass air flow) sensor
1994-1995 must modify TPS wiring and change distributor
Number of Circuits: 8 Fuses with 2 Ignition & 1 Fuel Pump Relay
Harness Length: 4 Feet Between Engine and ECM
Fuse Type: Blade
Firewall Passthrough: Grommet
Color Code Based: 1990 Mustang
Circuit Designations: Printed Wire Tags on all Connectors and Open Ended Wires
Factory Style Connectors For All Required Sensors
Integrated Fuse Block
Data Link Connector and Check Engine Light Included
Comprehensive Instructions And Tech Support

Kit Includes:

All new fuel injection harness with OEM fitment connectors and harness breakouts
Diagnostic connector and check engine light
Rubber grommet
Mounting hardware
Installation manual

This harness includes connections for the following components:

Alternator
Barometric Pressure Sensor
Data Link Connector
ECM
EEC Ground
EEC Power Relay
EEC Test
EGR Vacuum Regulator
EGR Valve
Engine Coolant Temperature
Fuel Pump
Fuel Pump Relay
Grounds
Idle Air Control
Ignition Coil
Ignition Switch Signal
Ignition Timing Setting
Injectors
Intake Air Temperature
Malfunction Indicator Lamp
Mass Airflow Sensor
Neutral Safety Switch
O2 Sensor
Starter Relay
Tachometer
TFI Ground
TFI Pigtail
Throttle Position Sensor
VSS

Application

Year: 1986 - 1995
Make: Ford
Model: Passenger Car
Engine: 5.0 H.O. Mass Air flow
Transmission: None

Charts

Wiring Instructions (PDF)

Guides & Documents

Engine Wiring Harnesses Installation Instructions (91060510)

CARB Warning

Follow EPA, CARB, and state regulations for engine changes

Emissions warning: this part is for vehicle engine changes, not direct oem engine replacements. In California, engine changes are legal when done in compliance with California bureau of automotive repairs (bar) engine change policy. For assistance, call bar referee at: (800) 622-7733. And see https://bar.Ca.Gov/consumer/smog_check_program/engine_changes. All customers must comply with federal epa mobile source enforcement memorandum no. 1a (and addendum) and all applicable state regulations when conducting engine changes. Improper installation and/or use of this part in California may subject the installer and/or owner to a $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and laws of all states for use of this engine change part on makes or models of vehicles that render them noncompliant with applicable state and/or federal emission laws with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine

WARNING:

Cancer and Reproductive Harm – www.P65Warnings.ca.gov

CARB warning

Painless Wiring 60510 Specifications

KEY SPECS
MFG. Part #	60510
Brand	Painless Wiring
Injection Style	Sequential multi-port
Drive-By-Wire Capable	No
Injector Connector	Jetronic / Minitimer (EV1)

GENERAL
Number of Circuits	8
Fuse Block Included	Yes
Notes	Includes wiring harnesses, all connectors, brackets, flashers, and zip ties.
Sold in Quantity	Kit
GTIN Code	749823605107
