Painless Wiring 60218 1999-2005 GM Vortec Engine Harness,
Painless Wiring 60218 1999-2005 GM Vortec Engine Harness,
Painless Wiring

|

#91060218

Painless Wiring 60218 1999-2005 GM Vortec Engine Harness,

$659.99

/each

In Stock


Quantity

Need Help? Call to Order

Add to a list

Share

Select an engine to verify Fitment

Select Engine

Product Summary

Universal Fit, 10 Number of Circuits

    See more details

    Key Specs

    MFG. Part #60218
    BrandPainless Wiring
    See more specs

    Need To Know

    Need help?

    855.313.9176
    View the Help Center

    Quick and Easy Returns

    Return Policy

    Painless Wiring 60218 Details

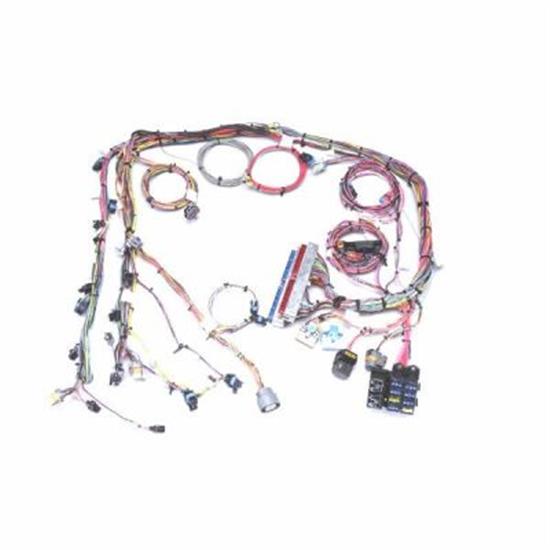

    Take advantage of GMs electronic engine management system with this Painless Wiring Harness. Complete stand alone harness allows you to install late model GM Truck 4.8, 5.3, or 6.0 Vortec fuel injected engines with mechanical throttle body, and correct computer into almost any chassis.

    Besides the obvious economy and driveability benefits, check out these other great features that make it easy and painless to install:

    • Foolproof factory connections
    • ALDL (diagnostic) OBD II plug
    • Computer controlled fuel pump provision
    • GM color code
    • Closed loop design
    • Complete information manual

    The standard length harness allows four feet from the back of the intake manifold to where the fuseblock and ECM mount.  Perfect for those that plan to mount these components under the dash or in the glove box.

    Number of Circuits: 10 Fuses with Ignition, Fuel Pump & Air Pump Relays
    Fuse Type: Blade
    Firewall Passthrough: Grommet
    Color Code Based: 1999 C1500 Truck
    Connectors Included: ECM, TPS, IAC, CTS, IAT, MAF, MAP, Injectors**, Coils, CMP, CKP, Knock, VSS, ISS, 4L60E & 4L80E Transmissions, Front Bank 1 & 2 O2 Sensors. Emissions connections included in harness include: Secondary air pump, Secondary air solenoid, EGR, Canister vent and Canister purge
    Circuit Designations: Printed Wire Tags on all Connectors and Open Ended Wires

    **Harness does not support Flex Fuel USCAR Injectors.

    Item Details

    8 Feet Between Engine and ECM

    Features

    Number of Circuits: 8 Fuses with Ignition, Fuel Pump & Air Pump Relays
    Fuse Type: Blade
    Firewall Passthrough: Grommet
    Color Code Based: 1999 C1500 Truck
    Connectors Included: ECM, TPS, IAC, CTS, IAT, MAF, MAP, Injectors**, Coils, CMP, CKP, Knock, VSS, ISS, 4L60E & 4L80E Transmissions, Front Bank 1 & 2 O2 Sensors. Emissions connections included in harness include: Secondary air pump, Secondary air solenoid, EGR, Canister vent and Canister purge
    Circuit Designations: Printed Wire Tags on all Connectors and Open Ended Wires

    **Harness does not support Flex Fuel USCAR Injectors.

    These kits include:

    • All new fuel injection harness with OEM fitment connectors and harness breakouts
    • OBDII connector, mounting bracket and check engine light
    • Crimp-on terminals, rubber grommet
    • Mounting hardware
    • Installation manual

    These kits include:

    • All new fuel injection harness with OEM fitment connectors and harness breakouts
    • OBDII connector, mounting bracket and check engine light
    • Crimp-on terminals, rubber grommet
    • Mounting hardware
    • Installation manual

    Application

    For installations of 1999 - 2006, mechanical throttle body, Gen3 (4.8L - 5.3L - 6.0L) engines using ECMs with service #12200411 or #9354896.  2003-2006 engines require the factory installed throttle by wire throttle body to be changed to a cable throttle type. This harness does NOT support Flex Fuel USCAR Injectors.

    • Year: 1999 - 2006
    • Make: General Motors
    • Model: C & K Truck
    • Engine: 4.8L, 5.3L, 6.0L w/ Mechanical Throttle Body
    • Trans.: 4L60E, 4L80E
    • Painless Application Chart

    Charts

    CARB Warning

    Follow EPA, CARB, and state regulations for engine changes

    Emissions warning: this part is for vehicle engine changes, not direct oem engine replacements. In California, engine changes are legal when done in compliance with California bureau of automotive repairs (bar) engine change policy. For assistance, call bar referee at: (800) 622-7733. And see https://bar.Ca.Gov/consumer/smog_check_program/engine_changes. All customers must comply with federal epa mobile source enforcement memorandum no. 1a (and addendum) and all applicable state regulations when conducting engine changes. Improper installation and/or use of this part in California may subject the installer and/or owner to a $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and laws of all states for use of this engine change part on makes or models of vehicles that render them noncompliant with applicable state and/or federal emission laws with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine
    CA Prop 65
    CARB warning

    Painless Wiring 60218 Specifications

    KEY SPECS
    MFG. Part #60218
    BrandPainless Wiring
    GENERAL
    Number of Circuits10
    NotesIncludes wiring harnesses, all connectors, brackets, relays, and zip ties.
    Sold in QuantityKit
    GTIN Code749823602182

    Questions & Answers

    1 Question • 1 Answer

    does this include the wiring for a 4l60?

    by josh

    • 3 years ago

    1 answer

    View Answer

    1 of 1 questions shown

    Fitment

    • GM LM4

    • GM LM7

    • GM LQ9

    • GM LM7

    • GM LQ9

    • GM LM7

    • GM LQ9

    • GM LM7

    • 4.8 Chevy LS V8

    • GM LM7

    • GM LQ4

    • 4.8 Chevy LS V8

    • GM LM7

    • GM LQ4

    • GM LQ4

    • GM LQ4

    • GM LQ9

    • GM LQ4

    • GM LM7

    • GM LQ4

    • GM LQ9

    • GM LQ4

    • GM LQ4

    • GM LQ4

    • GM LQ4

    • GM LQ4

    • GM LM4

    • GM LM7

    • GM L59

    • GM LM7

    • GM LQ4

    • 4.8 Chevy LS V8

    • GM L59

    • GM LM7

    • 4.8 Chevy LS V8

    • GM LM4

    • GM LM4

    • GM LM4

    • 4.8 Chevy LS V8

    • GM LM7

    • GM LQ4

    • 4.8 Chevy LS V8

    • GM L33

    • GM LM7

    • GM LQ4

    • 4.8 Chevy LS V8

    • GM L33

    • GM LQ4

    • 4.8 Chevy LS V8

    • GM LM7

    • GM LQ4

    • 4.8 Chevy LS V8

    • GM L33

    • GM LQ4

    • 4.8 Chevy LS V8

    • GM LM7

    • GM LQ4

    • 4.8 Chevy LS V8

    • GM L33

    • GM LQ4

    • GM L33

    • GM L59

    • GM LM7

    • GM LQ4

    • GM LQ4

    • GM LQ4

    • GM LM7

    • GM LQ4

    • GM LQ4

    • GM LQ4

    • GM LQ4

    • GM LQ4

    • GM LQ4

    • GM LQ4

    • 4.8 Chevy LS V8

    • GM LM7

    • GM LM7

    • GM L59

    • GM LM7

    • GM LQ4

    • GM LQ4

    • GM LQ4
