#359716
Maradyne M143K Champion Ultra Slim Fan, 14 Inch
1 Review
|
Ask a Question
- Features an all glass-filled nylon construction
- Comes with (4) 90° mounting feet and nylon tie kit
- Has a 14 inch, low profile, puller straight blade fan with 130 watt motor
See More
$133.71
each
In Stock
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, Single Fan Quantity, 8.5 amps Amperage
- Features an all glass-filled nylon construction
- Comes with (4) 90° mounting feet and nylon tie kit
- Has a 14 inch, low profile, puller straight blade fan with 130 watt motor
- The sealed motor is tested in accordance with DIN EN 60529, dust and water proof to IP68

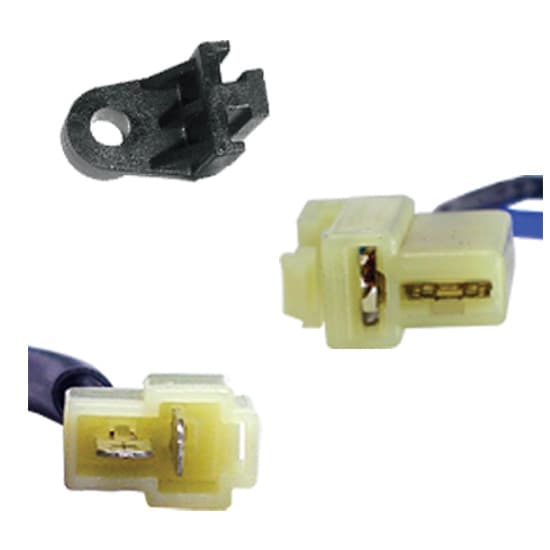

- It includes locking mating pigtail connector and rubber spacers for proper spacing off of heat exchanger
See more details
Key Specs
| MFG. Part # | M143K |
| Brand | Maradyne |
| Fan Diameter | 14 Inch |
See more specs
Need To Know
Free Shipping on Orders Over $149
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyMaradyne M143K Details
Maradyne M143K Details

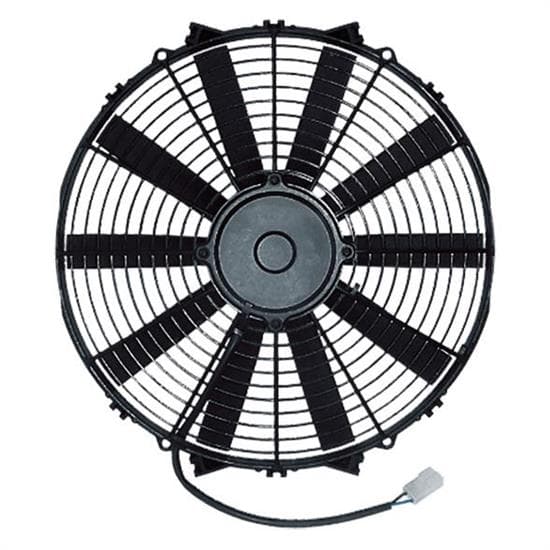

Maradyne Fans introduces this 14 inch, low profile, puller straight blade fan with 130 watt motor.
- Sealed motor tested in accordance with DIN EN 60529, dust and water proof to IP68
- Straight blade design – works as a puller only
- All glass-filled nylon construction includes (4) 90° mounting feet and nylon tie kit
- Includes locking mating pigtail connector and rubber spacers for proper spacing off of heat exchanger
Charts
Installation Instructions (PDF)

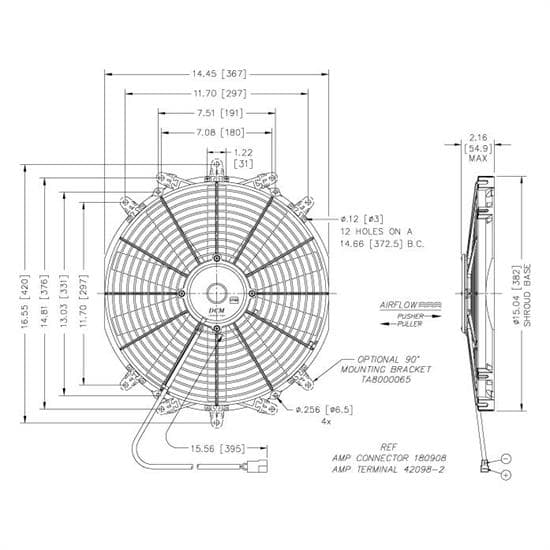

Mounting Instructions (PDF)
Maradyne M143K Specifications
Maradyne M143K Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | M143K |
| Brand | Maradyne |
| Fan Diameter | 14 Inch |
| GENERAL | |
| Fan Quantity | Single |
| Maximum Fan CFM | 1155 CFM |
| Blade Style | Straight |
| Blade Material | Nylon |
| Blade Finish | Natural |
| Blade Color | Black |
| Hub Material | Nylon |
| Hub Finish | Natural |
| Hub Color | Black |
| Amperage | 8.5 amps |
| Starting Amps | 8.5 amps |
| Running Amps | 6.4 amps |
| Sold in Quantity | Each |
| GTIN Code | 810349011618 |
