Maradyne M083K Reversible "S" Blade Cooling Fan, 8 Inch

Ask a Question

Features the lowest profile high performance reversible on the market
The sealed motor is tested in accordance with DIN EN 60529, dust and water proof to IP68
Has a quiet, S-blade design that works as a puller or pusher fan

$111.49

In Stock

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, Single Fan Quantity, 8 Inch Fan Diameter

Features the lowest profile high performance reversible on the market
The sealed motor is tested in accordance with DIN EN 60529, dust and water proof to IP68
Has a quiet, S-blade design that works as a puller or pusher fan
An all glass-filled nylon construction includes (4) 90° mounting feet and nylon tie kit
Fan has a 8" diameter and a max flow of 540CFM

See more details

Key Specs

MFG. Part #	M083K
Fan Diameter	8 Inch
Maximum Fan CFM	540 CFM
Fan Flow Type	Reversible
Rotation	CW/CCW

See more specs

Need To Know

Free Shipping on Orders Over $149

Need help?

Quick and Easy Returns

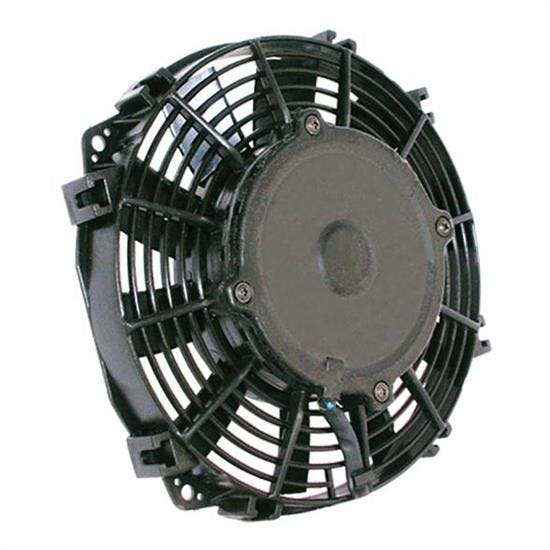

Maradyne M083K Details

Maradyne Fans introduces this low profile 8 inch reversible cooling fan. This fan feature a puller “S” blade fan with 130 watt motor. Includes locking mating pigtail connector and rubber spacers for proper spacing off of heat exchanger.

Lowest profile high performance reversibles on the market
Sealed motor tested in accordance with DIN EN 60529, dust and water proof to IP68
Quiet, S-blade design – works as a puller or pusher fan
All glass-filled nylon construction includes (4) 90° mounting feet and nylon tie kit

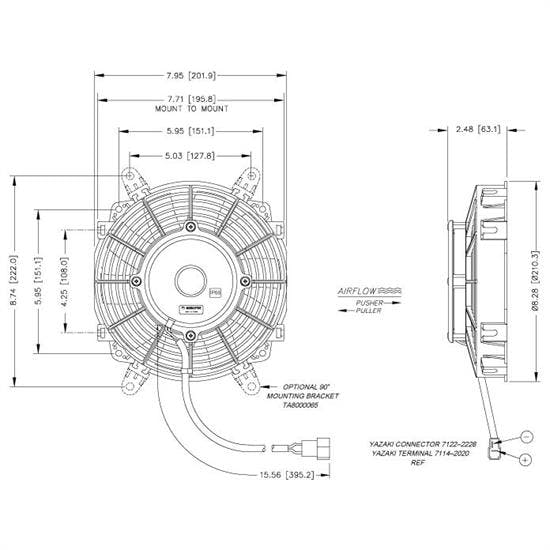

Charts

Installation Instructions

Guides & Documents

Electric Fans Instruction Sheet (359701)

Maradyne M083K Specifications

KEY SPECS
MFG. Part #	M083K
Brand	Maradyne
Fan Diameter	8 Inch
Maximum Fan CFM	540 CFM
Fan Flow Type	Reversible
Rotation	CW/CCW

GENERAL
Speedway Motors Catalog Part #	359-701
Fan Quantity	Single
Blade Style	Curved
Blade Count	10-blade
Blade Material	Nylon
Blade Finish	Natural
Blade Color	Black
Hub Material	Nylon
Hub Finish	Natural
Hub Color	Black
Voltage	12 volts
Depth	2.480"
Sold in Quantity	Each
GTIN Code	810349010017
