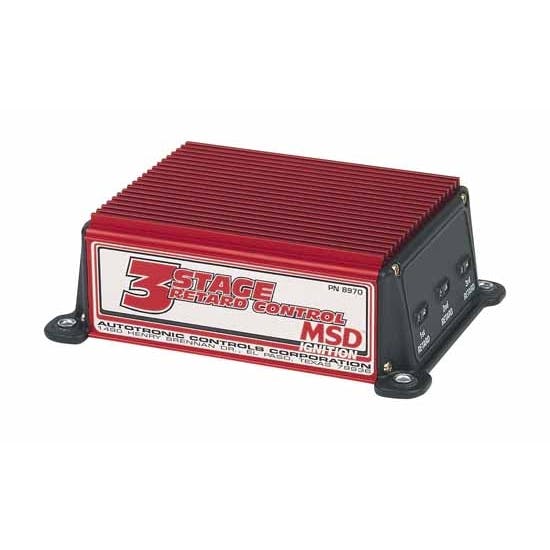

MSD 8970 Three Stage Retard Control

Name: MSD 8970 Three Stage Retard Control
Brand: MSD
SKU: 5478970
Price: 531.95 USD
Availability: InStock

Write a Review

Ask a Question

$531.95

/each

Factory Shipped

$575.95

Save $44.00

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Key Specs

MFG. Part #	8970
Brand	MSD

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

MSD 8970 Details

The Three Stage Retard Control allows you to retard your ignition timing in three different stages. You can activate one retard for a nitrous stage and another at top end in high gear for more mph and still have another module left over for dual stage nitrous systems. When activated together, the retard amounts are cumulative so you get the total of the three. For example, if you pull 2°, then 4° on the second stage and another 2° at top end, the total retard is 8° (2+4+2=8). In addition to the individual retard stages, the Three Stage Retard Control has an optional start retard function that retards the timing 10° or 25° while cranking the engine. The Three Stage Retard Control connects easily to your MSD Ignition and can be triggered from points, electronic ignitions, crank triggers or magnetic pick-up distributors. It is supplied with a 2°, 3° and 4° module and must be used with an MSD 6, SCI, 7, 8 or 10 Series Ignition.

Three separate retards
Twenty degrees start retard

Charts

Installation Instructions (PDF)

Guides & Documents

Electronic Ignition Systems Installation Instructions (5478970)

CARB Warning

For race/ off road use only

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

CARB warning

MSD 8970 Specifications

KEY SPECS
MFG. Part #	8970
Brand	MSD

GENERAL
GTIN Code	085132089703

Ratings & Reviews

Be the first to write a review.

Questions & Answers

Be the first to ask a question.
