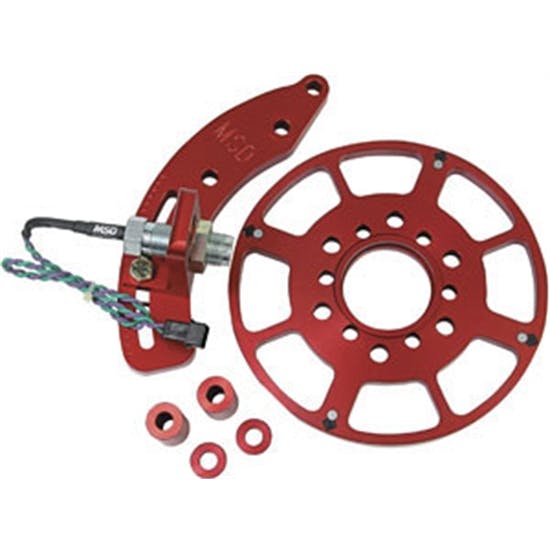

MSD 8636 Chrysler Big Block Crank Trigger Kit
Write a Review
Ask a Question
This part will be shipped by the manufacturer. We estimate this item will ship on or before June 9th.
Add to a list
Select a vehicle to verify Fitment
350, 361, 383, 400, 413, 426 Wedge, 440
See more details
See more specs
Need To Know
This Product Will Ship FreeShipping Policies & FAQs
View the Help Center
Quick and Easy ReturnsReturn Policy
For a long time, racers have known that one of the best things to do to an engine to improve its performance is to stabilize the ignition timing. The MSD Flying Magnet Crank Trigger system does exactly that by using four magnets embedded in an aluminum wheel. Although similar in appearance to other crank triggers, the MSD Flying Magnet design works on a different principle.Most crank triggers have a wheel, with steel studs sticking out, bolted to the harmonic balancer. As the crankshaft turns, the studs pass by a stationary magnetic pick-up, triggering the ignition. This pick-up can be triggered by other bolts, debris or even vibrations which will cause a loss of power or engine damage. The MSD Flying Magnet Crank Trigger uses four magnets secured in the aluminum trigger wheel that pass by a stationary non-magnetic pick-up to trigger the ignition. This flying magnet design produces accurate trigger signals and the non-magnetic pick-up cannot be false triggered.Each Flying Magnet Crank Trigger includes a two-piece mounting bracket for the non-magnetic pick-up that in most cases will work on either the passenger side or drivers side of the engine (the SB Chrysler and SB Ford brackets mount on only one side). The CNC-machined aluminum bracket securely holds the pick-up in place and is slotted to provide a wide range of timing adjustment. Spacers are included so you can mount the bracket on engines with standard motor mounts or engines with a .25 motor plate. These systems will trigger MSD 6, 7, 8 and 10 Series Ignitions and all MSD Timing Accessories.
- Absolutely the most accurate way to trigger the ignition.
- The non-magnetic pickup cannot be false triggered.
- Powerful magnets are embedded in a billet aluminum trigger wheel.
- Kits feature special brackets and mounting hardware for a variety of engines.
Guides & Documents
For race/ off road use only
For race/ off road use only
Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.
|Speedway Motors Catalog Part #||547-8636|
