MSD 8566 Oldsmobile V8 350-455 Distributor

-7%

#5478566

MSD 8566 Oldsmobile V8 350-455 Distributor

Name: MSD 8566 Oldsmobile V8 350-455 Distributor
Brand: MSD
SKU: 5478566
Price: 584.95 USD
Availability: InStock

Write a Review

Ask a Question

$584.95

/each

Factory Shipped

$633.95

Save $49.00

Quantity

Need Help? Call to Order

Add to a list

Select an engine to verify Fitment

Select Engine

Product Summary

External Ignition Box Required, HEI / Male Cap Type

See more details

Key Specs

MFG. Part #	8566
Brand	MSD
Cap Type	HEI / Male
Advance Type	Mechanical

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

MSD 8566 Details

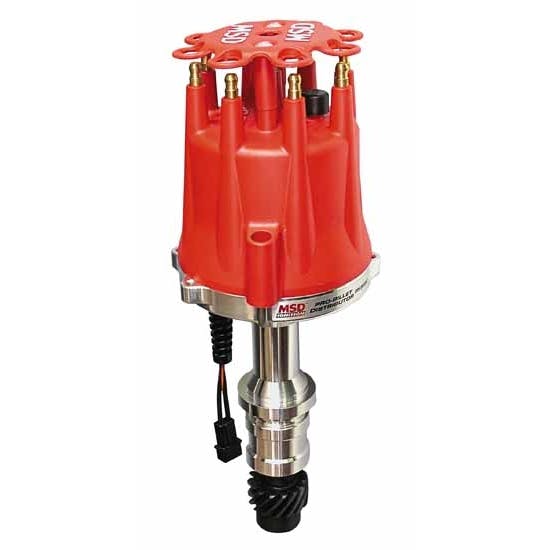

Sharing the CNC machining techniques with the rest of the MSD Distributor line, the Olds housing is machined from high quality 6061-T6 aluminum. Adding to this strength are two sealed ball bearings that guide the 0.500 shaft accurately through 10,000 rpm. TIG-welded on top of the polished steel shaft is MSDs adjustable mechanical advance assembly. To accurately trigger the ignition, a high-output magnetic pick-up is bolted to the base. This trigger pick-up produces a precise trigger signal. An MSD red cap with brass terminals and Race Rotor are supplied.

CNC machined billet aluminum housing and billet aluminum base
Easy-to-adjust mechanical advance with supplied springs and stop bushings
Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
Polished steel shaft is QPQ coated and guided by two sealed ball bearings
Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
Mechanical advance assembly can be locked out for crank trigger systems
Advance weight pins are staked and tig welded to the plate
Nylon pads ensure smooth operation of the advance weights
Supplied with an HEI style distributor cap and rotor (accepts Cap-A-Dapts)
Must be used with an MSD Ignition Control
Will not accept a vacuum advance canister
No CARB Exemption Order Number
Must be used with an MSD 6, 7, 8 or 10 Ignition Control
Fits Oldmobile V8 260, 307, 330, 350, 400, 403, 425, 455

Charts

Installation Instructions (PDF)

Guides & Documents

Distributors Installation Instructions (5478566)

CARB Warning

For race/ off road use or for use on pre-1966 vehicles.

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway, or if installed in vehicles model-year 1965 or older; motorcycles model-year 1977 or older; or off-highway recreational vehicles (such as off-road motorcycles and all-terrain vehicles) model-year 1996 and older. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

CARB warning

MSD 8566 Specifications

KEY SPECS
MFG. Part #	8566
Brand	MSD
Cap Type	HEI / Male
Advance Type	Mechanical

GENERAL
External Ignition Box Required	Yes
Cap Terminal Style	HEI / Male
Trigger Style	Magnetic
Hall Effect	No
Sync Signal	No
Trigger Sensors	Single
Gear Material	Iron
Gear Rotation	Standard
Ignition Box Required	Yes
Mechanical Tach Drive	No
Slip Collar	No
Housing Material	Billet Aluminum
Housing Finish	Natural
Marine Use	No
Sold in Quantity	Each
GTIN Code	085132085668

Ratings & Reviews

Be the first to write a review.

Questions & Answers

Be the first to ask a question.

Fitment

1976-1979 Cadillac Seville

Oldsmobile 350 Small-Block

1973-1974 GMC Transmode

455 Oldsmobile Big-Block V8
Oldsmobile 403

1968-1971 Oldsmobile 442

455 Oldsmobile Big-Block V8
Oldsmobile 350 Small-Block

1965-1967 Oldsmobile 98

Oldsmobile 425

1968-1971 Oldsmobile 98

455 Oldsmobile Big-Block V8

1972-1974 Oldsmobile 98

455 Oldsmobile Big-Block V8
Oldsmobile 350 Small-Block

1975-1976 Oldsmobile 98

455 Oldsmobile Big-Block V8

1977-1979 Oldsmobile 98

Oldsmobile 350 Small-Block
Oldsmobile 403

1980 Oldsmobile 98

Oldsmobile 350 Small-Block

1982-1984 Oldsmobile 98

Oldsmobile 350 Small-Block

1971-1974 Oldsmobile Custom Cruiser

455 Oldsmobile Big-Block V8
Oldsmobile 350 Small-Block

1975-1976 Oldsmobile Custom Cruiser

455 Oldsmobile Big-Block V8

1977-1979 Oldsmobile Custom Cruiser

Oldsmobile 350 Small-Block
Oldsmobile 403

1980 Oldsmobile Custom Cruiser

Oldsmobile 350 Small-Block

1983-1985 Oldsmobile Custom Cruiser

Oldsmobile 350 Small-Block

1992 Oldsmobile Custom Cruiser

Oldsmobile 350 Small-Block

1968-1976 Oldsmobile Cutlass

455 Oldsmobile Big-Block V8
Oldsmobile 350 Small-Block

1977 Oldsmobile Cutlass

Oldsmobile 350 Small-Block
Oldsmobile 403

1978-1980 Oldsmobile Cutlass

Oldsmobile 350 Small-Block

1979-1980 Oldsmobile Cutlass Calais

Oldsmobile 350 Small-Block

1983-1984 Oldsmobile Cutlass Calais

Oldsmobile 350 Small-Block

1983 Oldsmobile Cutlass Cruiser

Oldsmobile 350 Small-Block

1975-1976 Oldsmobile Cutlass Salon

455 Oldsmobile Big-Block V8
Oldsmobile 350 Small-Block

1977 Oldsmobile Cutlass Salon

Oldsmobile 350 Small-Block
Oldsmobile 403

1979-1980 Oldsmobile Cutlass Salon

Oldsmobile 350 Small-Block

1985 Oldsmobile Cutlass Salon

Oldsmobile 350 Small-Block

1968-1970 Oldsmobile Cutlass Supreme

Oldsmobile 350 Small-Block

1971-1976 Oldsmobile Cutlass Supreme

455 Oldsmobile Big-Block V8
Oldsmobile 350 Small-Block

1977 Oldsmobile Cutlass Supreme

Oldsmobile 350 Small-Block
Oldsmobile 403

1978-1980 Oldsmobile Cutlass Supreme

Oldsmobile 350 Small-Block

1983-1985 Oldsmobile Cutlass Supreme

Oldsmobile 350 Small-Block

1976 Oldsmobile Cutlass Tiara

455 Oldsmobile Big-Block V8
Oldsmobile 350 Small-Block

1967 Oldsmobile Delmont 88

Oldsmobile 425

1968 Oldsmobile Delmont 88

455 Oldsmobile Big-Block V8
Oldsmobile 350 Small-Block

1965-1967 Oldsmobile Delta 88

Oldsmobile 425

1968-1976 Oldsmobile Delta 88

455 Oldsmobile Big-Block V8
Oldsmobile 350 Small-Block

1977-1979 Oldsmobile Delta 88

Oldsmobile 350 Small-Block
Oldsmobile 403

1980 Oldsmobile Delta 88

Oldsmobile 350 Small-Block

1983-1985 Oldsmobile Delta 88

Oldsmobile 350 Small-Block

1965-1966 Oldsmobile Dynamic

Oldsmobile 425

1965-1966 Oldsmobile Dynamic 88

455 Oldsmobile Big-Block V8
Oldsmobile 350 Small-Block
Oldsmobile 425

1968-1969 Oldsmobile F85

Oldsmobile 350 Small-Block

1970-1972 Oldsmobile F85

455 Oldsmobile Big-Block V8
Oldsmobile 350 Small-Block

1965-1966 Oldsmobile Jetstar 88

Oldsmobile 425

1965 Oldsmobile Jetstar I

Oldsmobile 425

1973-1979 Oldsmobile Omega

Oldsmobile 350 Small-Block

1965-1966 Oldsmobile Starfire

Oldsmobile 425

1966-1967 Oldsmobile Toronado

Oldsmobile 425

1968-1976 Oldsmobile Toronado

455 Oldsmobile Big-Block V8

1977 Oldsmobile Toronado

Oldsmobile 350 Small-Block
Oldsmobile 403

1978 Oldsmobile Toronado

Oldsmobile 403

1968-1975 Oldsmobile Vista Cruiser

455 Oldsmobile Big-Block V8
Oldsmobile 350 Small-Block
