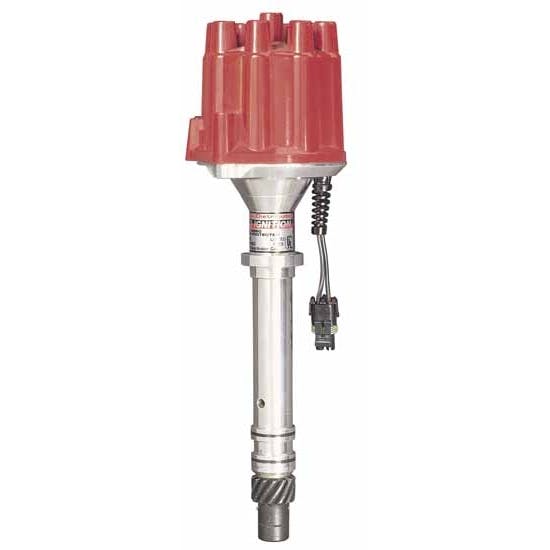

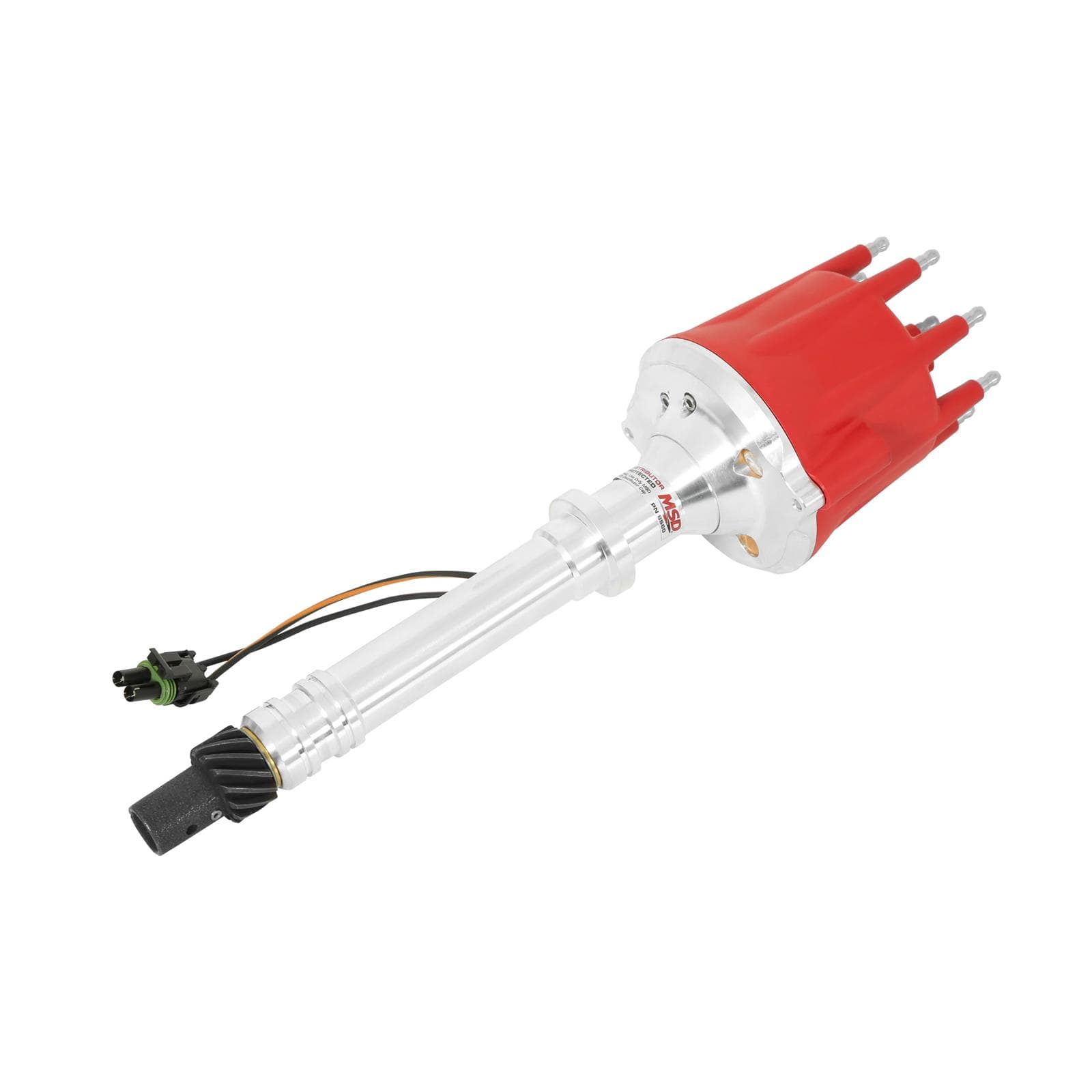

MSD 8560 Chevy V8 Marine Certified Distributor
MSD 8560 Chevy V8 Marine Certified Distributor

MSD 8560 Chevy V8 Marine Certified Distributor

Chevy Small Block V8, Not Computer-Controlled Compatible, HEI / Male Cap Terminal Style

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
MSD 8560 Chevy V8 Marine Certified Distributor
MSD 8560 Chevy V8 Marine Certified Distributor
Zoomed In Image
We estimate this item will ship on or before August 27th.
Part # 5478560
Save 14%
$341.99
$397.99
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Articles

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 5 business days for MSD to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

Details

Computer-Controlled Compatible:
No
Cap Terminal Style:
HEI / Male
Advance Type:
Mechanical
Trigger Style:
Magnetic
Hall Effect:
No
Sync Signal:
No
Trigger Sensors:
Single
Gear Material:
Iron
Gear Rotation:
Standard
Ignition Box Required:
Yes
Mechanical Tach Drive:
No
Slip Collar:
No
Housing Material:
Billet Aluminum
Housing Finish:
Natural
Marine Use:
Yes
MFG. Part #:
8560
Sold in Quantity:
Each
GTIN Code:
085132085606

Info

Marine environments place rigorous demands on every component of the ignition system, especially the distributor. The combination of water spray, salt exposure, full throttle acceleration and harsh vibrations all take their toll. The MSD Pro-Billet Distributor is the strongest and most accurate distributor you can put in your boat. The housing is CNC-machined from a billet of 6061-T6 aluminum creating a housing with no porosity. Internally, a QPQ coated shaft is guided by a sealed ball bearing and an extra long sintered bushing for highspeed stability. Each distributor uses MSDs race-proven magnetic pickup to trigger the ignition control. Mounted just above the pickup is a mechanical advance assembly that is easy to adjust so you can dial-in an ignition curve to match your boats application (except PN 8366). For marine use, the distributor cap is bolted to the aluminum base. There are two flame arrestor holes with brass screens machined into the base of the distributor to prevent ignition of gas fumes that may build up in the engine compartment. A special Weathertight Connector is supplied to provide a positive-lock and water resistant connection. The Marine Pro-Billet Distributors have been tested by Underwriters Laboratory and are certified to meet or exceed safety standards for marine ignition systems as set by the U.S. Coast Guard.

Installation Instructions (PDF)

Installation Instructions (PDF)

  • Designed for use in marine applications with Chevy V8 automotive engines
  • CNC machined billet aluminum housing and billet aluminum base with two flame arrestor holes with brass screens
  • Easy-to-adjust mechanical advance with supplied springs and stop bushings
  • Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
  • Polished steel shaft is QPQ coated and guided by a sealed ball bearing and extra long sintered bushing
  • Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
  • Mechanical advance assembly can be locked out for crank trigger systems
  • Advance weight pins are staked and tig welded to the plate
  • Nylon pads ensure smooth operation of the advance weights
  • Special oil tract improves lubrication to the distributor and cam gear
  • O-ring seals can be added to modified blocks to improve oil pressure control
  • Must be used with an MSD Ignition Control
  • Weathertight connectors are used for locked and sealed connections
  • Supplied with a bolt down HEI style distributor cap and rotor
  • Will not accept a vacuum advance canister
Some parts are not legal for use in California or other states with similar laws/regulations
