Product Summary

426 Wedge, 440, 426, External Ignition Box Required

    Key Specs

    MFG. Part #85463
    Cap TypeHEI / Male
    Advance TypeMechanical

    Need To Know

    This Product Will Ship Free

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

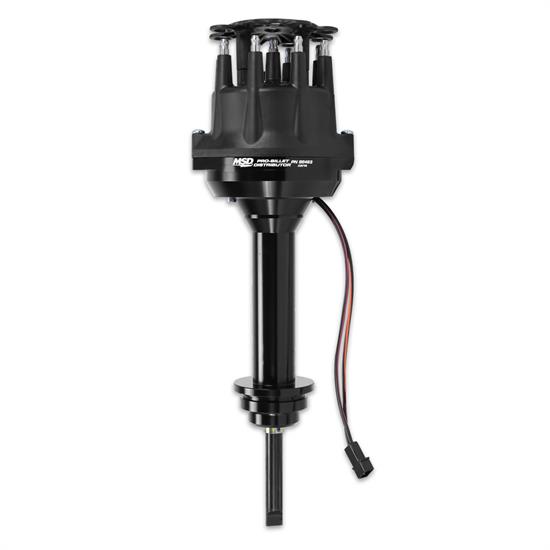

    MSD 85463 Details

    MSD Pro-Billet Distributors are the finest performance and racing distributors available. Every feature has been engineered to endure the rigors of high performance and racing engines. Whether cruising the streets or racing stock cars, dragsters, boats or trucks, MSD has a distributor for it. MSD uses state-of-the-art, Computer Numerical Controlled (CNC) mills and lathes to machine each housing. After a long series of precise cuts and movements, the billet is formed into a flawless distributor housing that is accurate to within 0.001”. The flex-free housings are lightweight, have no porosity or weak areas and look great on polished, show quality engines.

    • Must be used with an MSD Ignition Control
    • Polished steel shaft is QPQ coated and guided by a sealed ball bearing for smooth operation at all rpms
    • Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
    • CNC machined billet aluminum housing and billet aluminum base providing superior strength and great looks
    • Easy-to-adjust mechanical advance with supplied springs and stop bushings (except locked out versions)
    • Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
    • Advance weight pins are staked and tig welded to the plate
    • Nylon pads ensure smooth operation of the advance weights
    • Mechanical advance assembly can be locked out for crank trigger systems or racing applications
    • Vacuum advance canister for improved economy (can be locked out)
    • Fits 426/440 Chrysler engines

    Instructions (pdf)

    MSD 85463 Specifications

    MFG. Part #85463
    Cap TypeHEI / Male
    Advance TypeMechanical
    Speedway Motors Catalog Part #547-85463
    External Ignition Box RequiredYes
    Cap Terminal StyleHEI / Male
    Trigger StyleMagnetic
    Hall EffectNo
    Sync SignalNo
    Trigger SensorsSingle
    Gear RotationStandard
    Distributor Cap ColorBlack
    Ignition Box RequiredYes
    Mechanical Tach DriveNo
    Slip CollarNo
    Housing MaterialBillet Aluminum
    Housing FinishBlack
    EmissionsCalifornia EO Approved
    Marine UseNo
    Sold in QuantityEach
    GTIN Code085132854639
