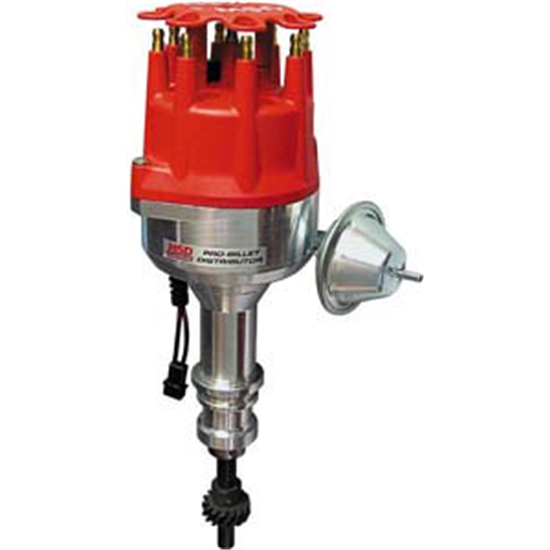

MSD 8478 Ford 351W Street Pro-Billet
MSD 8478 Ford 351W Street Pro-Billet
MSD

|

#5478478

MSD 8478 Ford 351W Street Pro-Billet

$564.95

/each

Factory Shipped


Quantity

Need Help? Call to Order

Add to a list

Share

Select an engine to verify Fitment

Select Engine

Product Summary

External Ignition Box Required, HEI / Male Cap Type

    See more details

    Key Specs

    D-40-39
    MFG. Part #8478
    BrandMSD
    Cap TypeHEI / Male
    Advance TypeMechanical and Vacuum
    CARB EO#
    See more specs

    Need To Know

    Need help?

    855.313.9176
    View the Help Center

    Quick and Easy Returns

    Return Policy

    MSD 8478 Details

    The Street Pro-Billet Distributors are the perfect choice for powerful engines that see plenty of street time. The Street models share the same features as the small diameter models shown above, plus feature a vacuum advance. This canister provides improved economy and an accurate mechanical advance lets you dial-in an advance curve to match your driving needs. A magnetic pick-up produces accurate trigger signals that remain stable throughout the entire rpm range of your engine and is completely maintenance-free.
    • Billet housing is 5/8 smaller in diameter than stock Ford distributors
    • Easy-to-adjust mechanical advance with supplied springs and stop bushings
    • Vacuum advance canister for improved economy (can be locked out)
    • CNC machined billet aluminum housing and billet aluminum base
    • Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
    • Polished steel shaft is QPQ coated and guided by a sealed ball bearing
    • Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
    • Mechanical advance assembly can be locked out for crank trigger systems
    • Advance weight pins are staked and tig welded to the plate
    • Nylon pads ensure smooth operation of the advance weights
    • Supplied with small diameter cap with HEI style terminals and race rotor (will accept 8441 Cap-A-Dapt)
    • Must be used with an MSD Ignition Control
    • CARB E.O. Approved
    • Must be used with an MSD 6, 7, 8 or 10 Series Ignition
    • Fits 351W

    Charts

    MSD 8478 Specifications

    D-40-39
    KEY SPECS
    MFG. Part #8478
    BrandMSD
    Cap TypeHEI / Male
    Advance TypeMechanical and Vacuum
    CARB EO#
    GENERAL
    External Ignition Box RequiredYes
    Cap Terminal StyleHEI / Male
    Trigger StyleMagnetic
    Hall EffectNo
    Sync SignalNo
    Trigger SensorsSingle
    Gear MaterialIron
    Gear RotationStandard
    Ignition Box RequiredYes
    Mechanical Tach DriveNo
    Slip CollarNo
    Housing MaterialBillet Aluminum
    Housing FinishNatural
    EmissionsCalifornia EO Approved
    Marine UseNo
    Sold in QuantityEach
    GTIN Code085132084784

    Questions & Answers

    1 Question • 1 Answer

    for this distributor, do you need an MSD electric control box or would this just replace the original?

    by Kody

    • 9 years ago

    1 answer

    View Answer

    1 of 1 questions shown
