#5478389

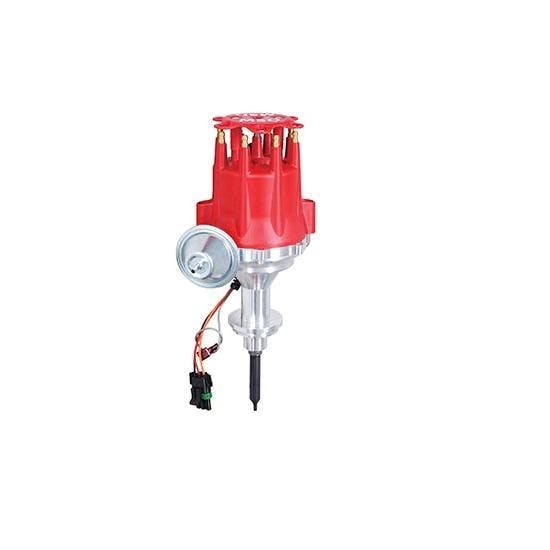

MSD 8389 Chrysler 392 Hemi Ready-to-Run Distributor
$569.95
each
Factory Shipped
This part will be shipped by the manufacturer. We estimate this item will ship on or before June 7th.
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
392, HEI / Male Cap Type, HEI / Male Cap Terminal Style
See more details
Key Specs
D-40-39| MFG. Part # | 8389 |
| Brand | MSD |
| Cap Type | HEI / Male |
| Advance Type | Mechanical and Vacuum |
| CARB EO# |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyMSD 8389 Details
MSD 8389 Details
The Ready-to-Run distributor earns its name with simple wiring. One wire to 12 volts, one to coil negative and another to ground. That’s it! A matching harness with a 3-pin Weathertight connector is supplied.
Does not require an MSD Ignition Control.
Features:
- Simple and clean installation with only three wires to connect
- Powerful built-in module produces a 7.5 amp single spark through high rpm
- Easy-to-adjust mechanical advance with supplied springs and stop bushings
- Vacuum advance canister for improved economy (can be locked out)
- CNC machined billet aluminum housing and billet aluminum base
- Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
- Polished steel shaft is QPQ coated and guided by sealed ball bearings
- Advance plate and weights are fine blanked from Chromoly steel and QPQ coated for friction reduction
- Mechanical advance assembly can be locked out for crank trigger systems
- Advance weight pins are staked and tig welded to the plate
- Nylon pads ensure smooth operation of the advance weights
- Supplied with a HEI style distributor cap and rotor (accepts Cap-A-Dapts)
- CARB E.O. Approved
Features:
- Simple and clean installation with only three wires to connect
- Powerful built-in module produces a 7.5 amp single spark through high rpm
- Easy-to-adjust mechanical advance with supplied springs and stop bushings
- Vacuum advance canister for improved economy (can be locked out)
- CNC machined billet aluminum housing and billet aluminum base
- Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
- Polished steel shaft is QPQ coated and guided by sealed ball bearings
- Advance plate and weights are fine blanked from Chromoly steel and QPQ coated for friction reduction
- Mechanical advance assembly can be locked out for crank trigger systems
- Advance weight pins are staked and tig welded to the plate
- Nylon pads ensure smooth operation of the advance weights
- Supplied with a HEI style distributor cap and rotor (accepts Cap-A-Dapts)
- CARB E.O. Approved
Charts
547-8389 Instructions (PDF)
Warranties
For warranty information, please visit http://www.msdhelp.com/
Guides & Documents
MSD 8389 Specifications
MSD 8389 Specifications
D-40-39
| KEY SPECS | |
|---|---|
| MFG. Part # | 8389 |
| Brand | MSD |
| Cap Type | HEI / Male |
| Advance Type | Mechanical and Vacuum |
| CARB EO# | |
| GENERAL | |
| Speedway Motors Catalog Part # | 547-8389 |
| External Ignition Box Required | No |
| Cap Terminal Style | HEI / Male |
| Trigger Style | Magnetic |
| Hall Effect | No |
| Sync Signal | No |
| Trigger Sensors | Single |
| Gear Rotation | Standard |
| Ignition Box Required | No |
| Mechanical Tach Drive | No |
| Slip Collar | No |
| Housing Material | Billet Aluminum |
| Housing Finish | Natural |
| Rotor Rotation | Clockwise |
| Emissions | California EO Approved |
| Marine Use | No |
| Sold in Quantity | Each |
| GTIN Code | 085132083893 |
