MSD 8386 Chrysler 383-400 Ready to Run Distributor

-7%

#5478386

MSD 8386 Chrysler 383-400 Ready to Run Distributor

Name: MSD 8386 Chrysler 383-400 Ready to Run Distributor
Brand: MSD
SKU: 5478386
Price: 749.95 USD
Availability: InStock

Write a Review

Ask a Question

$749.95

/each

Factory Shipped

$806.95

Save $57.00

Quantity

Need Help? Call to Order

Add to a list

Select an engine to verify Fitment

Select Engine

Product Summary

HEI / Male Cap Type, HEI / Male Cap Terminal Style

See more details

Key Specs

D-40-39

MFG. Part #	8386
Brand	MSD
Cap Type	HEI / Male
Advance Type	Mechanical and Vacuum
CARB EO#

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

MSD 8386 Details

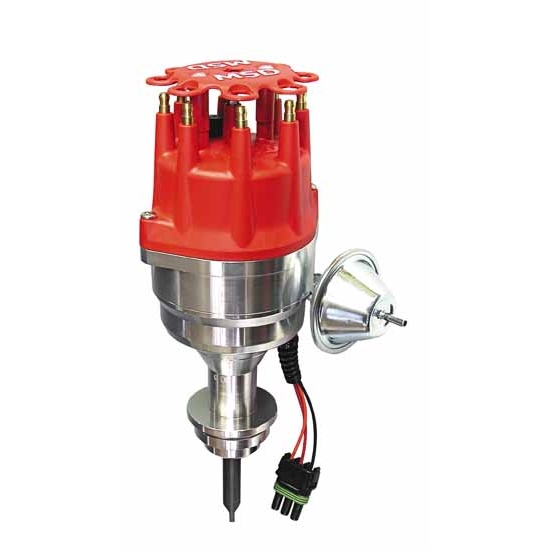

MSDs Ready-to-Run Pro-Billet Distributors for Chrysler engines are the perfect upgrade from breaker points or weak electronic ignitions. These distributors feature a maintenance-free magnetic pick-up that accurately triggers the built-in powerful ignition module. This module produces a high-output spark which improves combustion in the cylinder, resulting in quick starts, a smooth idle and great performance. Just beneath the race rotor is a mechanical advance assembly so a timing curve can easily be tailored to match your application. The QPQcoated shaft is guided by a sealed ball bearing assembly for stability and endurance while a vacuum advance canister helps increase economy on those long cruises. The Ready-to-Run Distributors are also a breeze to install. Simply drop it in the engine and connect three wires and youre ready-to-run to your favorite cruise! The front engine mount models are designed in a special small diameter housing to clear aftermarket heads and valve covers.

Simple and clean installation with only three wires to connect
Powerful built-in module produces a 7.5 amp single spark through high rpm
Easy-to-adjust mechanical advance with supplied springs and stop bushings
Vacuum advance canister for improved economy (can be locked out)
CNC machined billet aluminum housing and billet aluminum base
Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
Polished steel shaft is QPQ coated and guided by sealed ball bearings
Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
Mechanical advance assembly can be locked out for crank trigger systems
Advance weight pins are staked and tig welded to the plate
Nylon pads ensure smooth operation of the advance weights
Supplied with a HEI style distributor cap and rotor (accepts Cap-A-Dapts)
Does not require an MSD Ignition Control
CARB E.O. Approved
Now includes built-in Rev Limiter!

Charts

Installation Instructions (PDF)

Guides & Documents

Distributors Installation Instructions (5478386)

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

CARB warning

MSD 8386 Specifications

D-40-39

KEY SPECS
MFG. Part #	8386
Brand	MSD
Cap Type	HEI / Male
Advance Type	Mechanical and Vacuum
CARB EO#

GENERAL
External Ignition Box Required	No
Cap Terminal Style	HEI / Male
Trigger Style	Magnetic
Hall Effect	No
Sync Signal	No
Trigger Sensors	Single
Gear Rotation	Standard
Ignition Box Required	No
Mechanical Tach Drive	No
Slip Collar	No
Housing Material	Billet Aluminum
Housing Finish	Natural
Emissions	California EO Approved
Marine Use	No
Sold in Quantity	Each
GTIN Code	085132083862

Ratings & Reviews

Be the first to write a review.

Questions & Answers

Be the first to ask a question.

Fitment

1962-1965 Chrysler 300

383 B Engine

1965-1971 Chrysler Newport

383 B Engine

1959-1960 Chrysler Saratoga

383 B Engine
383 RB Engine

1959-1960 Chrysler Town & Country

383 B Engine
383 RB Engine

1961-1971 Chrysler Town & Country

383 B Engine

1959-1960 Chrysler Windsor

383 B Engine
383 RB Engine

1961 Chrysler Windsor

383 B Engine

1963-1964 Dodge 330

383 B Engine

1963-1964 Dodge 440

383 B Engine

1970-1971 Dodge Challenger

383 B Engine

1967-1971 Dodge Charger

383 B Engine

1965-1971 Dodge Coronet

383 B Engine

1965-1967 Dodge D100 Series

383 B Engine

1965-1967 Dodge D200 Series

383 B Engine

1965-1967 Dodge D300 Series

383 B Engine

1967-1971 Dodge Dart

383 B Engine

1965-1971 Dodge Monaco

383 B Engine

1965-1971 Dodge Polara

383 B Engine

1967-1971 Plymouth Barracuda

383 B Engine

1962-1970 Plymouth Belvedere

383 B Engine

1962-1971 Plymouth Fury

383 B Engine

1968-1969 Plymouth GTX

383 B Engine

1968-1971 Plymouth Roadrunner

383 B Engine

1960 Plymouth Savoy

383 B Engine
383 RB Engine

1961-1964 Plymouth Savoy

383 B Engine
