MSD 8362 Street Fire Chevy HEI Distributor Ignition Kit,5520/5551

Breathe new life into your Small Block Chevy or Big Block Chevy engine with this easy-to-install distributor ignition kit!

Kit Includes:

• (1) MSD 8362 Street Fire Chevy V8 GM HEI Distributor
• (1) MSD 5520 Street Fire CDI Ignition
• (1) MSD 8428 GM HEI Weight And Spring Kit
• (1) MSD 5551 Street-Fire Spark Plug Wire Set, V8 Multi-Angle, Stock/HEI
• (1) MSD 8861 GM HEI Module Bypass Cable

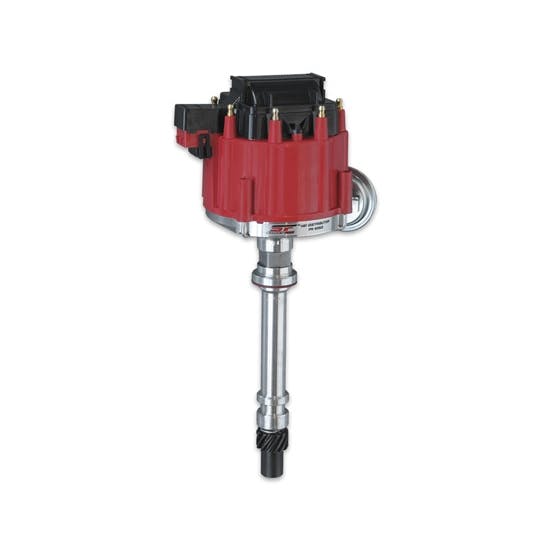

MSD 8362 Street Fire Chevy V8 GM HEI Distributor

• All new distributor is spec’d by MSD engineers and built around a new cast aluminum housing
• Includes a powerful ignition module, coil and high quality cap and rotor
• One of the most important tuning features of a distributor is the centrifugal advance
  • The Street Fire HEI Distributor features an advance assembly that features welded weight pins and coated weights to ensure smooth movement and accurate timing
• Included 4-pin Module

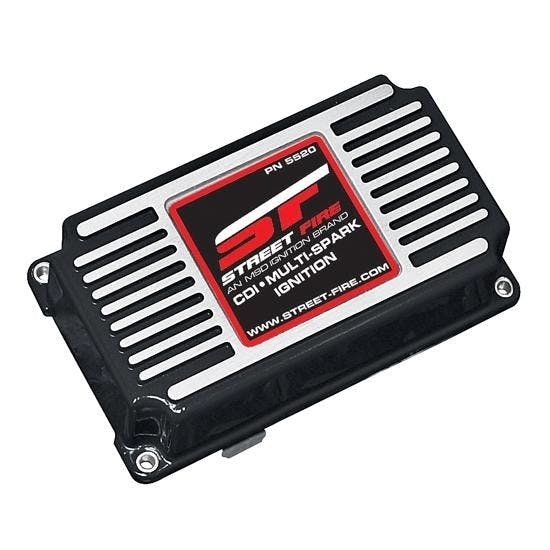

MSD 5520 Street Fire CDI Ignition

• Perfect for budget minded enthusiasts
• Capacitive Discharge Technology
• Multiple sparks improve starting and idle
• Full power output at high rpm
• Easily connects to points, amplifiers and magnetic pickup distributors
• Adjustable rev limiter for overrev protection
• Has the standard MSD type hook-ups and is compatible with MSD's coils and distributors

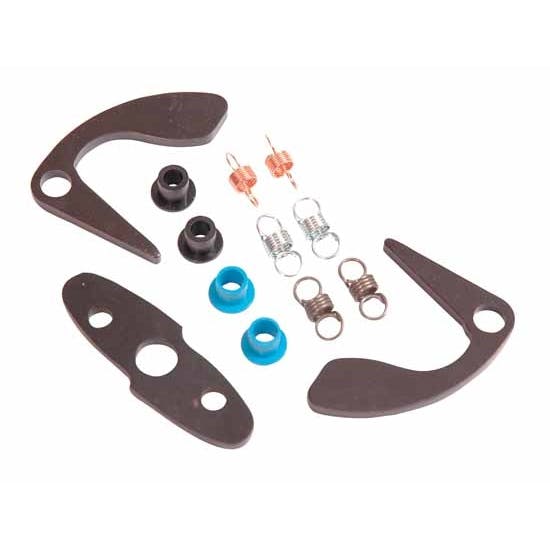

MSD 8428 GM HEI Weight And Spring Kit

• Comes with new advance weights, springs to set the rate of advance and new bushings
• Fits Street-Fire HEI
• Fits Stock Style HEI Distributors
• Not for MSD Billet and Pro-Billet Distributors

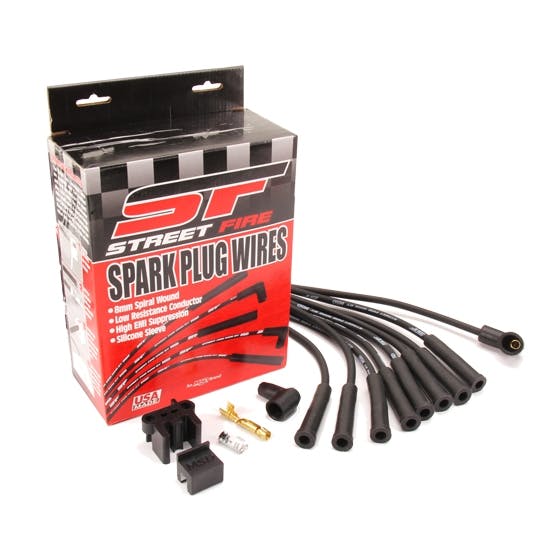

MSD 5551 Street-Fire Spark Plug Wire Set, V8 Multi-Angle, Stock/HEI

• Helically wound conductor suppresses electro and radio noise
• Kevlar core combination for great strength and durability
• Heavy duty terminals for secure connection
• 8mm silicone and synthetic jacket resists heat and abrasion
• 500 Ohms per foot resistance for improved spark delivery and power
• Straight silicone boots protect against high exhaust temps

Learn how to properly attach new spark plug terminals and boots by reading our tech article. How to Install Spark Plug Wire Ends.

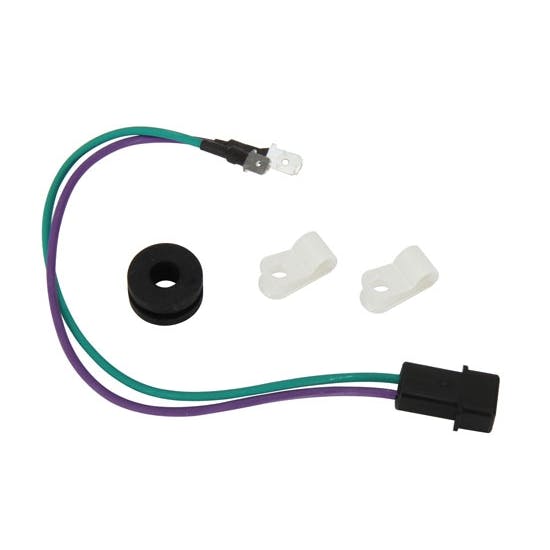

MSD 8861 GM HEI Module Bypass Cable

• Plug an MSD 6 or 7 series ignition or timing accessory directly into the magnetic trigger inside a GM HEI distributor



547-5520 Instructions

547-5520 Addendum

Installation Instructions

Installation Instructions (PDF)

• Spark Energy:  95 MJ Per Spark
• Primary Voltage: 435 Volts
• Secondary Voltage: 45,000 Volts
• Spark Series Duration: 20° Crankshaft Rotation
• RPM Range: 15,000 RPM with 14.4 Volts
• Voltage Required: 10-18 Volts, Negative Ground
• Current Draw: .7Amp per 1,000 RPM
• Weight & Size: 1.5 LBS. 6"Lx3.5"Wx1.75"H
