MSD 8360 Ready-To-Run HEI Chevy Distrib. Ignition Kit,35599 Wires

Breathe new life into your Small Block Chevy engine with this easy-to-install distributor ignition kit!

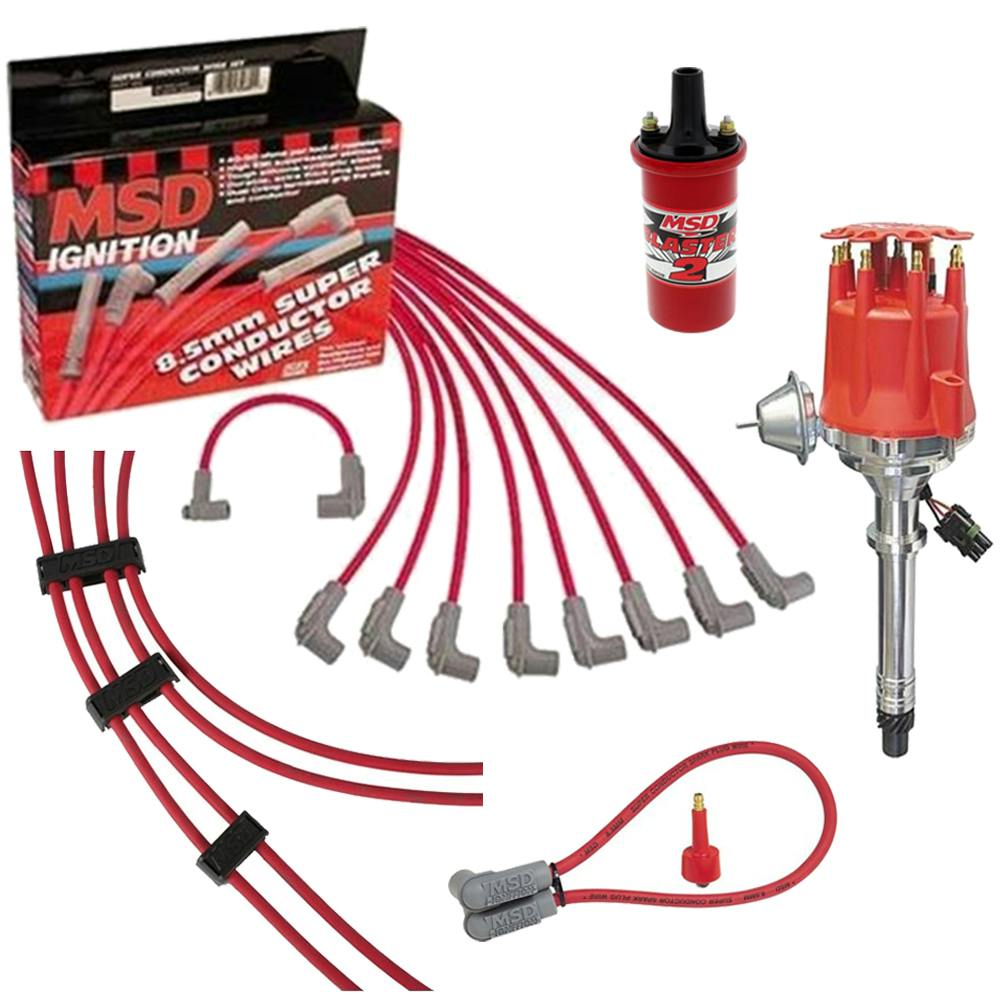

Kit Includes:

• (1) MSD 8360 Chevy V8 with Internal Module Distributor
• (1) MSD 35599 8.5mm Spark Plug Wires Set, S/B Chevy HEI, Under Headers
• (1) MSD 8202 Blaster 2 Ignition Coil
• (1) MSD 84039 Replacement Coil Wire
• (1) MSD 8843 Spark Plug Wire Separators, Pro-Clamp

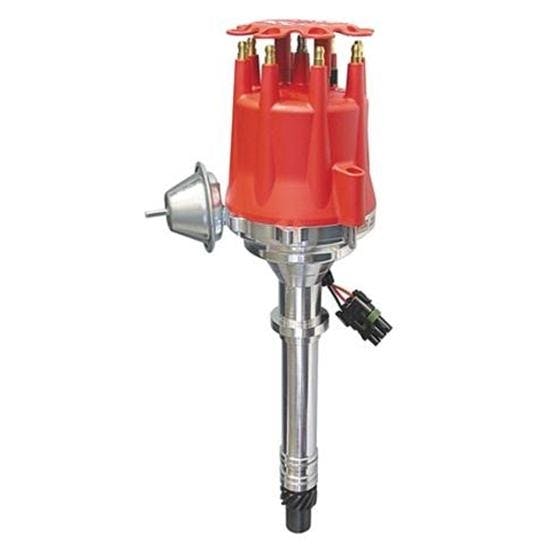

MSD 8360 Chevy V8 with Internal Module Distributor

• The Pro-Billet Ready-to-Run distributor is the perfect upgrade for outdated points distributors or bulky HEIs
• Simply install the distributor in the engine, connect three wires, the coil and fire it up!
• A maintenance-free magnetic pick-up accurately triggers the module
• The increased output of the amplifier easily outperforms stock ignitions and will smooth out the engine’s idle, improve starting and provide a much higher rpm range
• The Ready-to-Run features MSD’s adjustable mechanical advance which allows you to custom tailor an ignition curve to match your engine’s needs
• There is also a vacuum advance canister to help improve economy
• Simple and clean installation with only three wires to connect
• Powerful built-in module produces a 7.5 amp single spark through high rpm
• Easy-to-adjust mechanical advance with supplied springs and stop bushings
• Vacuum advance canister for improved economy (can be locked out)
• CNC machined billet aluminum housing and billet aluminum base
• Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
• Polished steel shaft is QPQ coated and guided by a sealed ball bearing
• Advance plate and weights are fine blanked from Chromoly steel and QPQ coated for friction reduction
• Mechanical advance assembly can be locked out for crank trigger systems
• Advance weight pins are staked and tig welded to the plate
• Nylon pads ensure smooth operation of the advance weights
• Special oil tract improves lubrication to the distributor and cam gear
• O-ring seals can be added to modified blocks to improve oil pressure control
• Supplied with an HEI style distributor cap and rotor (accepts Cap-A-Dapts)
• Does not require an MSD Ignition Control
• CARB E.O. Approved



MSD 35599 8.5mm Spark Plug Wires Set

• These assembled wire sets test 40-50 ohms per foot, while most others test 1500 ohms per foot
• These low resistance spark plug wires are designed for Small Block Chevys with HEI and are routed under the headers
• Run wire below header/exhaust manifold
• Learn how to properly attach new spark plug terminals and boots by reading our tech article. How to Install Spark Plug Wire Ends.

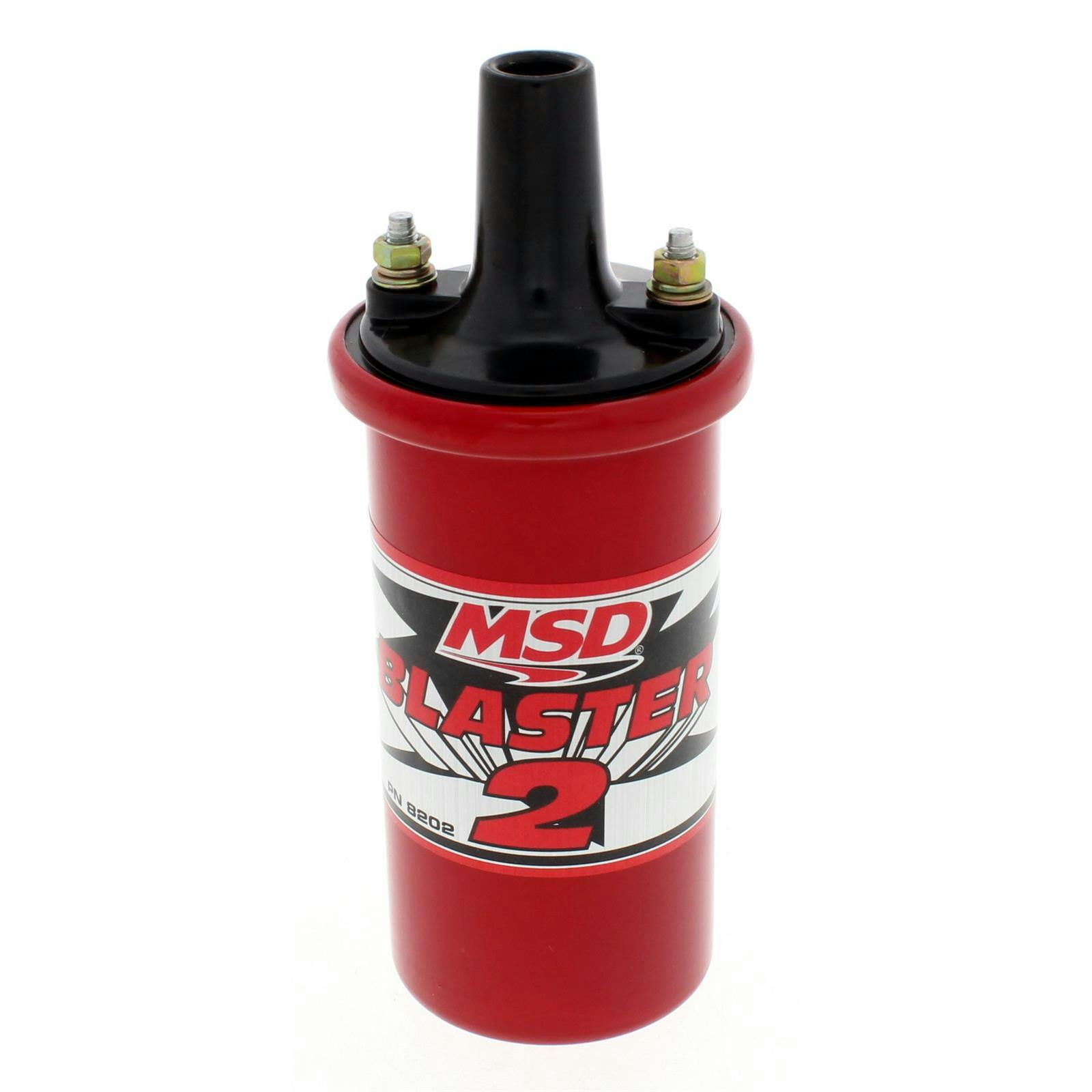

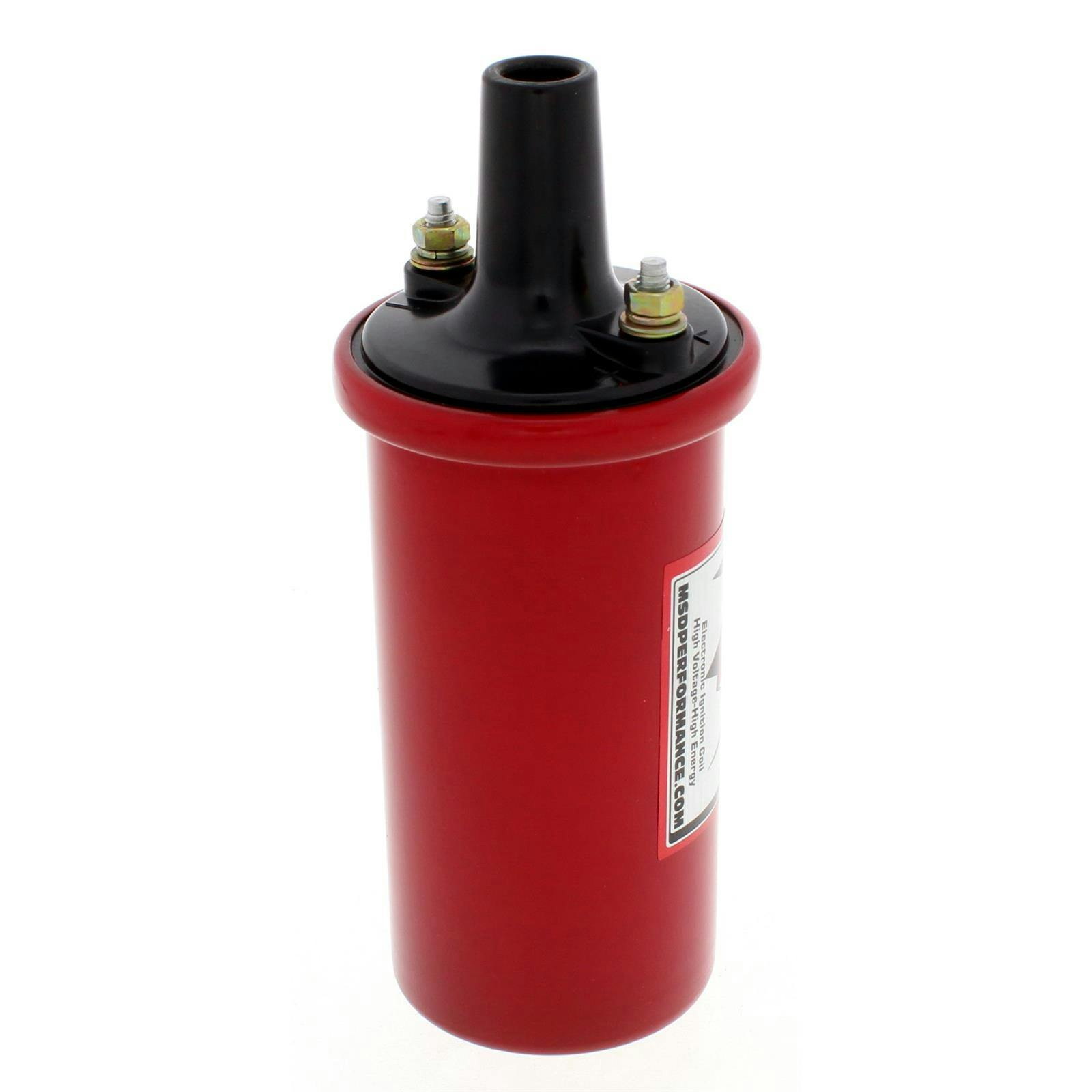

MSD 8202 Blaster 2 Ignition Coil

• Special 100:1 windings, kept cool in an oil filled metal canister, are used to provide maximum build-up of voltage
• The tower assembly is molded of durable alkyd material due to its high dielectric characteristics while wide spaced brass primary terminals prevent the possibility of spark
• Can be used with a stock ignition, Blaster Ignition, or MSD 5, 6 or 7 Ignition Control
• For use with stock or MSD electronic ignitions
• Most late model vehicles with electronic ignitions do not require a ballast resistor, check your ignition and manufacturers specifications to determine if a ballast is required in your application
• For use with stock or MSD electronic
• Improved output coil for stock points or electronic ignitions, Blaster Ignition, or MSD 5, 6, and 7 Series (ballast resistor required for points)
• 100:1 turns ratio and lower primary resistance produce high voltage output
• MSD Red metal canister is filled with a premium grade oil for cooling
• CARB E.O. Approved
• Turns ratio:  100:1
• Primary resistance:  .7 OHMs
• Secondary resistance:  4.5K OHMs
• Inductance:  8 mH
• Maximum voltage:  45,000 Volts
• Peak current:  140 mA
• Spark duration:  350 uS

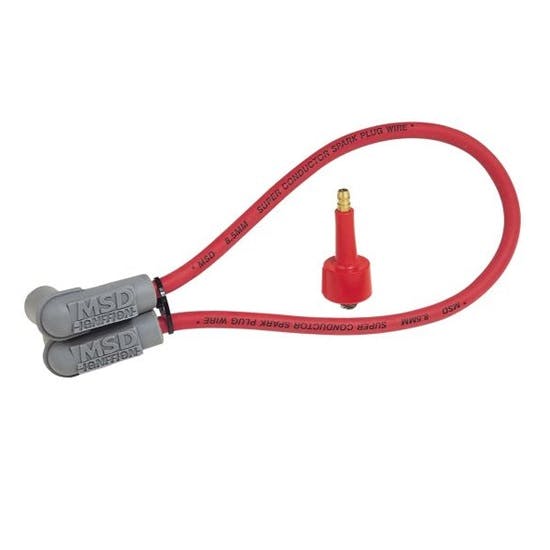

MSD 84039 Replacement Coil Wire

• 90 deg terminals and boots are installed on both sides to connect to an HEI style terminal
• A Power Tower is also supplied to adapt to a socket style cap
• 18" long

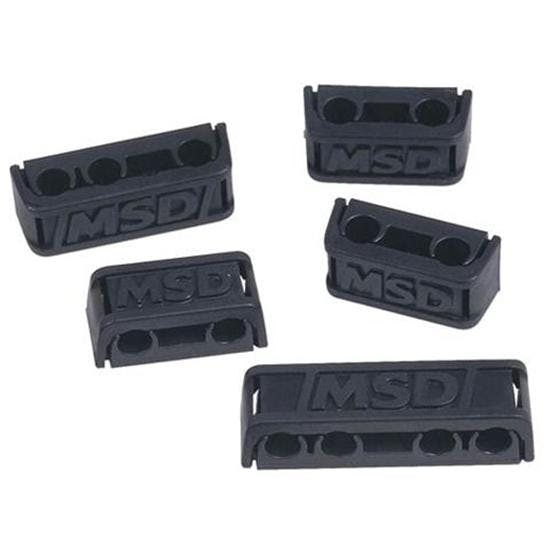

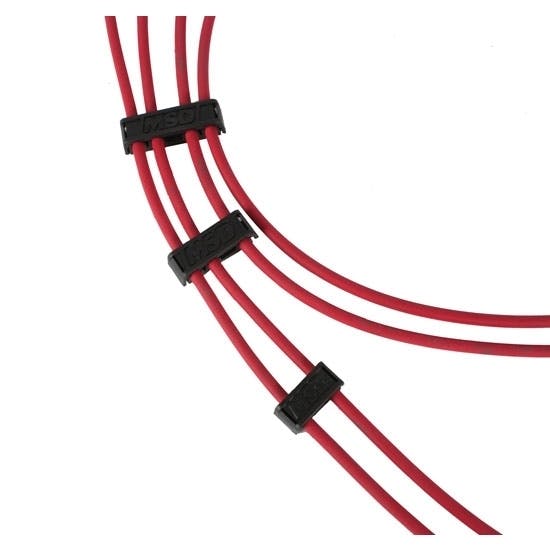

MSD 8843 Spark Plug Wire Separators

• Separate your plug wires to keep them from arcing across one another with these MSD Pro-Clamp wire separators
• Set is supplied with two 4-wire, two 3-wire, and four 2-wire separators
