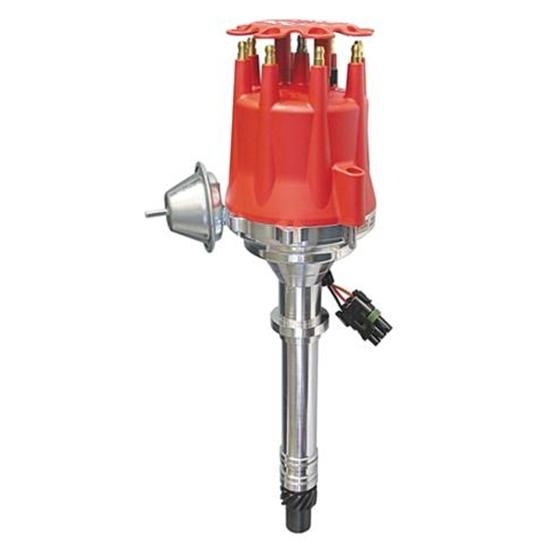

MSD 8360 Chevy V8 with Internal Module Distributor
MSD 8360 Chevy V8 with Internal Module Distributor

MSD 8360 Chevy V8 with Internal Module Distributor

Chevy Small Block V8, Chevy Big Block V8, HEI / Male Cap Type, HEI / Male Cap Terminal Style

5 Reviews | 19 Answered Questions
In Stock
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
MSD 8360 Chevy V8 with Internal Module Distributor
MSD 8360 Chevy V8 with Internal Module Distributor
MSD 8360 Chevy V8 with Internal Module Distributor
X
MSD 8360 Chevy V8 with Internal Module Distributor
Zoomed In Image
Part # 5478360
$369.95
$387.95
each
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

External Ignition Box Required:
No
Cap Type:
HEI / Male
Cap Terminal Style:
HEI / Male
Advance Type:
Mechanical and Vacuum
Trigger Style:
Magnetic
Hall Effect:
No
Sync Signal:
No
Trigger Sensors:
Single
Gear Material:
Iron
Gear Rotation:
Standard
Distributor Cap Color:
Red
Ignition Box Required:
No
Mechanical Tach Drive:
No
Slip Collar:
No
Housing Material:
Billet Aluminum
Housing Finish:
Natural
Emissions:
California EO Approved
Marine Use:
No
MFG. Part #:
8360
Sold in Quantity:
Each
GTIN Code:
085132083602

Info

The Pro-Billet Ready-to-Run distributor is the perfect upgrade for outdated points distributors or bulky HEIs. Simply install the distributor in the engine, connect three wires, the coil and fire it up! A maintenance-free magnetic pick-up accurately triggers the module. The increased output of the amplifier easily outperforms stock ignitions and will smooth out the engine’s idle, improve starting and provide a much higher rpm range. The Ready-to-Run features MSD’s adjustable mechanical advance which allows you to custom tailor an ignition curve to match your engine’s needs. There is also a vacuum advance canister to help improve economy. For positive street performance, the Ready-to-Run is the best choice.

  • Simple and clean installation with only three wires to connect
  • Powerful built-in module produces a 7.5 amp single spark through high rpm
  • Easy-to-adjust mechanical advance with supplied springs and stop bushings
  • Vacuum advance canister for improved economy (can be locked out)
  • CNC machined billet aluminum housing and billet aluminum base
  • Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
  • Polished steel shaft is QPQ coated and guided by a sealed ball bearing
  • Advance plate and weights are fine blanked from Chromoly steel and QPQ coated for friction reduction
  • Mechanical advance assembly can be locked out for crank trigger systems
  • Advance weight pins are staked and tig welded to the plate
  • Nylon pads ensure smooth operation of the advance weights
  • Special oil tract improves lubrication to the distributor and cam gear
  • O-ring seals can be added to modified blocks to improve oil pressure control
  • Supplied with an HEI style distributor cap and rotor (accepts Cap-A-Dapts)
  • Does not require an MSD Ignition Control
  • CARB E.O. Approved

Notes

  1. Does not require an MSD Ignition Control.
  2. If replacing a GM HEI, a Blaster coil and coil wire are required.
