#5478261

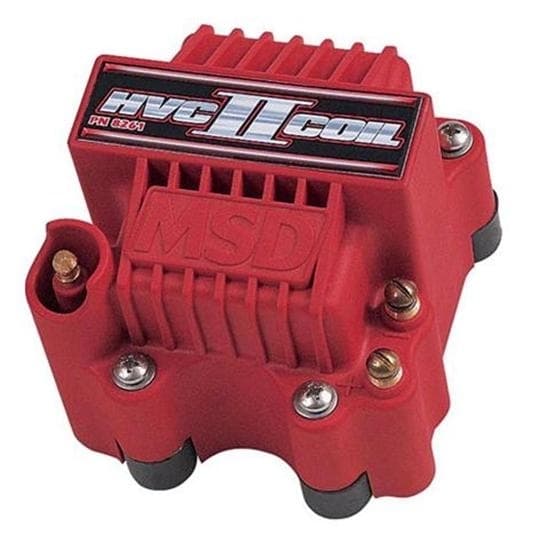

MSD 8261 HVC II Coil for 7 Series Ignitions
2 Reviews
|
Ask a Question
- Coil utilizes an iron U-Core design with a segmented bobbin for improved voltage distribution
- Bobbin is molded from Dupont Rynite FR946 material which has incredible dielectric capabilities at high temperatures
- Housing is molded from Rynite material and features far spaced brass primary terminals and a well protected secondary tower for increased spark isolation
See More
$290.95
each
In Stock
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, HEI / Male Cap Type, 70:1 Turns Ratio
- Coil utilizes an iron U-Core design with a segmented bobbin for improved voltage distribution
- Bobbin is molded from Dupont Rynite FR946 material which has incredible dielectric capabilities at high temperatures
- Housing is molded from Rynite material and features far spaced brass primary terminals and a well protected secondary tower for increased spark isolation
- 70:1 turns ratio and lower primary resistance produce high voltage output
- Windings are encased in fracture resistant compound for vibration resistance
See more details
Key Specs
MFG. Part # | 8261 |
Brand | MSD |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyMSD 8261 Details
MSD 8261 Details
The Pro Power HVC II Coil is completely built in-house at MSD so engineers have exclusive control over the performance and quality. The coil utilizes an iron U-Core design with a segmented bobbin for improved voltage distribution. The bobbin is molded from Dupont Rynite FR946 material which has incredible dielectric capabilities at high temperatures. MSD also incorporated a cutting edge winding material that has an improved insulation and is also capable of enduring extreme voltages. Together, these materials create a durable coil with incredible voltage capabilities, lightning quick rise time and lengthy spark duration. The housing, also molded from Rynite material, features far spaced brass primary terminals and a well protected secondary tower for increased spark isolation. The housing is completely potted with an epoxy compound for vibration resistance and installs with sturdy vibration mounts.
For use with MSD 7 and 8 Series Ignitions.
Features:- Designed for racing applications with an MSD 7 Series Ignition Control
- New U-core winding design produces more voltage and current
- 70:1 turns ratio and lower primary resistance produce high voltage output
- Windings are encased in fracture resistant compound for vibration resistance
- Dupont Rynite housing with isolated tower and brass primary terminals
- Supplied with rubber shock mounts
- Designed for racing applications with an MSD 7 Series Ignition Control
- New U-core winding design produces more voltage and current
- 70:1 turns ratio and lower primary resistance produce high voltage output
- Windings are encased in fracture resistant compound for vibration resistance
- Dupont Rynite housing with isolated tower and brass primary terminals
- Supplied with rubber shock mounts
Charts
Specs
- Turns Ratio: 70:1
- Primary resistance: .016 OHMs
- Inductance: .250 mH
- Maximum voltage: 45,000 Volts
- Peak current: 2 Amps
- Spark duration: 150 uS
- Weight: 3.75 lbs.
Warranties
Guides & Documents
CARB Warning
For race/ off road use only
CARB Warning
For race/ off road use only
MSD 8261 Specifications
MSD 8261 Specifications
KEY SPECS | |
---|---|
MFG. Part # | 8261 |
Brand | MSD |
GENERAL | |
Cap Type | HEI / Male |
Cap Terminal Style | HEI / Male |
Maximum Voltage | 45,000 volts |
Turns Ratio | 70:1 |
Resistance | .016 ohms |
Secondary Resistance | 30.00 ohms |
Inductance | .250 |
Peak Current | 2.00 |
Spark Duration | 150.00 |
GTIN Code | 085132082612 |
Sold in Quantity | Each |
