MSD 8251 Pro Power HVC Coil, Use With MSD 7 Series

-7%

#5478251

MSD 8251 Pro Power HVC Coil, Use With MSD 7 Series

Name: MSD 8251 Pro Power HVC Coil, Use With MSD 7 Series
Brand: MSD
SKU: 5478251
Price: 231.95 USD
Availability: LimitedAvailability
Rating: 5 (1 reviews)

1 Review

Ask a Question

$231.95

/each

In Stock

$251.95

Save $20.00

Order soon, only 3 left in stock!

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Key Specs

MFG. Part #	8251
Brand	MSD

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

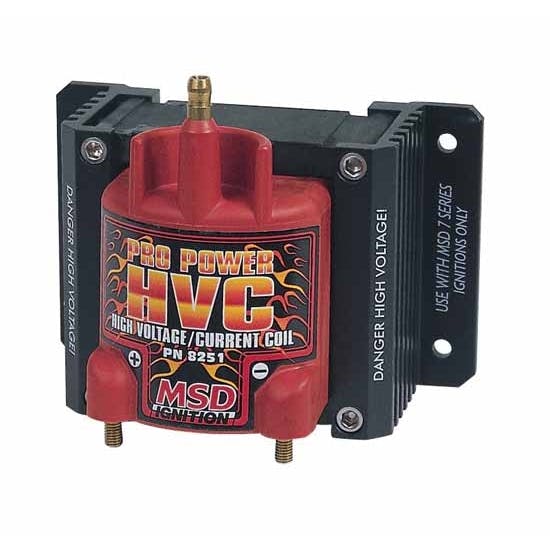

MSD 8251 Details

Coils have always had to compromise voltage output against current output. More voltage increases the initial ionization of the spark plug gap, but lowers the amount of current, or heat, that follows across the plug gap. When a coil is designed to produce more current, the voltage output generally suffers which taxes the ease of ionizing the gap. The MSD HVC Coils are designed to produce maximum voltage and energy! To accomplish this combination of high voltage and current MSD uses an E-core winding design. This is a very efficient design where less loss occurs during the transfer of electricity due to the closed core of the coil. Another benefit is that the coils run extremely cool, even at high racing rpm, thanks to the efficient design and huge laminations.

Designed for racing applications with an MSD 7 Series Ignition Control
Efficient E-core winding design produces more voltage and current
85:1 turns ratio and lower primary resistance produce high voltage output
Windings are encased in red epoxy and secured with extruded brackets
Spark plug style terminal and threaded brass primary studs
Supplied with rubber shock mounts
No CARB Exemption Order Number
3.54236111111111
86 OHMs
1 mH
45,000 Volts
1.1 Amp
150 uS

Charts

Installation Instructions (PDF)

Guides & Documents

Ignition Coils Installation Instructions (5478251)

CARB Warning

For race/ off road use only

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

CARB warning

MSD 8251 Specifications

KEY SPECS
MFG. Part #	8251
Brand	MSD

GENERAL
GTIN Code	085132082513
