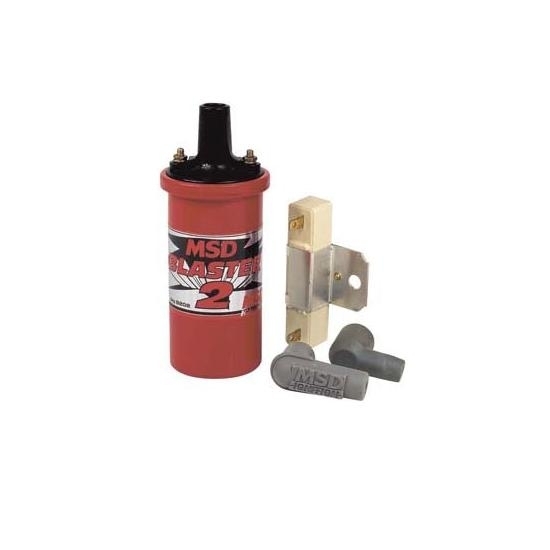

MSD 8203 Blaster 2 Ignition Coil w/ Resistor

#5478203

MSD 8203 Blaster 2 Ignition Coil w/ Resistor

Name: MSD 8203 Blaster 2 Ignition Coil w/ Resistor
Brand: MSD
SKU: 5478203
Price: 72.95 USD
Availability: InStock
Rating: 5 (1 reviews)

1 Review

5 Questions

Offers improved output coil for stock points or electronic ignitions, Blaster Ignition, or MSD 5, 6, and 7 Series
Comes supplied with two plug wire boots, terminals, and jumper wire
The 100:1 turns ratio and lower primary resistance produce high voltage output

$72.95

/each

In Stock

$75.95

Save $3.00

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

6.25" Overall Height, 2.50" Outside Diameter

Offers improved output coil for stock points or electronic ignitions, Blaster Ignition, or MSD 5, 6, and 7 Series
Comes supplied with two plug wire boots, terminals, and jumper wire
The 100:1 turns ratio and lower primary resistance produce high voltage output
Comes with a MSD Red metal canister that is filled with a premium grade oil for cooling
Must be used with stock points ignition and Mallory Unilite applications

See more details

Key Specs

D-40-37

MFG. Part #	8203
Brand	MSD
Maximum Voltage	45,000 volts
CARB EO#

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

MSD 8203 Details

If you are looking to upgrade your stock coil, or want to compliment the performance of your MSD ignition, the Blaster Coil line is the right choice. Special 100:1 windings, kept cool in an oil filled metal canister, are used to provide maximum build-up of voltage. The tower assembly is molded of durable alkyd material due to its high dielectric characteristics while wide spaced brass primary terminals prevent the possibility of spark. Can be used with a stock ignition, Blaster Ignition, or MSD 5, 6 or 7 Ignition Control.

The 0.8 ohm ballast resistor must be used with stock points ignition and Mallory Unilite applications. Includes MSD Power Tower top.

Improved output coil for stock points or electronic ignitions, Blaster Ignition, or MSD 5, 6, and 7 Series
Supplied with two plug wire boots, terminals, and jumper wire
100:1 turns ratio and lower primary resistance produce high voltage output
MSD Red metal canister is filled with a premium grade oil for cooling

Application

Turns ratio: 100:1
Primary resistance: .7 OHMs
Secondary resistance: 4.5K OHMs
Inductance: 8 mH
Maximum voltage: 45,000 Volts
Peak current: 140 mA
Spark duration: 350 uS

Charts

MSD Blaster 2 Ignition Installation Instructions (PDF)

Specs

Turns ratio: 100:1
Primary resistance: .7 OHMs
Secondary resistance: 4.5K OHMs
Inductance: 8 mH
Maximum voltage: 45,000 Volts
Peak current: 140 mA
Spark duration: 350 uS

Guides & Documents

Ignition Coils Installation Instructions (5478203)

Warranty Information

For warranty information, please visit http://www.msdhelp.com/

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

CARB warning

MSD 8203 Specifications

D-40-37

KEY SPECS
MFG. Part #	8203
Brand	MSD
Maximum Voltage	45,000 volts
CARB EO#

GENERAL
Overall Height	6.25"
Outside Diameter	2.50"
Cap Type	Socket / Female
Cap Terminal Style	Socket / Female
Turns Ratio	100:1
Resistance	.70 ohms
Secondary Resistance	4.50 ohms
Inductance	8.00
Peak Current	140.00
Spark Duration	350.00
GTIN Code	085132082032
Notes	Includes .8 ohm ballast resister, 2 coil wire boots, jumper wire, misc. terminals, MSD Power Tower terminal.
Sold in Quantity	Each

Ratings & Reviews

1 Review

Write A Review

1 reviews

Filter by Ratings

Sort Reviews

Replacing a stock ignition system on my 1972 Chevy C10

5.0

9 years ago

Redchevelle71

Fremont, NE

Verified

Replaces stock coil. Slides right in to the stock bracket. Since I am staying with the stock points distributor for now, I needed the ballast resistor that is conveniently included in this kit. This coil can be used with both stock and MSD ignition systems and boxes, which I intend to upgrade to in the future.

Would Recommend

Showing 1 of 1 reviews

Questions & Answers

5 Questions • 5 Answers

Sort Questions

Will this work on a 1956 Ford F100 With a 223 Engine and the Stock Distributor has been upgraded with Electronic Ignition

by Tim

• 9 years ago

1 answer

View Answer

Will this work on my 12v 235 Chevy?

by Roscoe

• 9 years ago

1 answer

View Answer

Is the resistor required if i have a points distributor and a MSD6a ignition box?

by Recycler

• 11 years ago

1 answer

View Answer

will this coil work with stock 6 volt ignition I am running stock 6 volt dual point ignition (front mount) with coil conversion kit. I tried a flamethrower coil but that quits in hot weather. Also running 8:1 heads with dual 97's.

by FlatheadGene

• 12 years ago

1 answer

View Answer

What are the primary and secondary resistances of this coil? thank you

• 15 years ago

1 answer

View Answer

5 of 5 questions shown
