MSD 72223 MSD Black 7AL-2 Ignition Control

-5%

#54772223

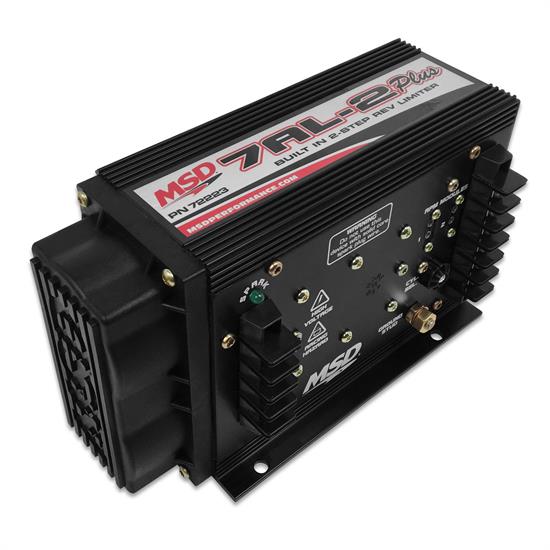

MSD 72223 MSD Black 7AL-2 Ignition Control

It operates on 4, 6 or 8-cylinder engines
The two terminal strips that allow for easier wiring in your race car
Features a built-in 2 step rev control and its famous high output spark energy

$929.95

/each

Factory Shipped

$979.95

Save $50.00

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Capacitive Discharge Ignition Box Output, Black

It operates on 4, 6 or 8-cylinder engines
The two terminal strips that allow for easier wiring in your race car
Features a built-in 2 step rev control and its famous high output spark energy
Mounting pattern is the same as the 7AL-2 and is supplied with vibration mounts and a few rpm modules
An LED over the power connections will come in handy for troubleshooting as it flashes only when the coil fires

See more details

Key Specs

MFG. Part #	72223
Brand	MSD
Ignition Box Output	Capacitive Discharge
Circuitry	Analog

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

MSD 72223 Details

You’ll recognize the 7AL-2 Plus Ignition Control now in Black! As its predecessor is the most popular ignition control used in drag racing. The “Plus” model updates the original 7AL-2 with improved internal components plus our engineers added a 2-Step Rev Control and a useful diagnostic LED.

Racers will be happy to see that the updated components up the voltage output and spark energy! Over 40% more spark energy in fact!

Visually, you’ll notice the two terminal strips that allow for easier wiring in your race car. The LED over the power connections will come in handy for troubleshooting as it flashes only when the coil fires. That way you know that the coil, the trigger source and ignition are all functioning properly. The mounting pattern is the same as the 7AL-2 and is supplied with vibration mounts and a few rpm modules.

A staple in the drag race community, features a built-in 2 step rev control and its famous high output spark energy. Now in Black!

Built-in 2-step rev control
Operates on 4, 6 or 8-cylinder engines
Diagnostic Troubleshooting LED
Terminal strips for convenient hookup

Guides & Documents

Electronic Ignition Systems Installation Instructions (54772223)

CARB Warning

For race/ off road use only

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

CARB warning

MSD 72223 Specifications

KEY SPECS
MFG. Part #	72223
Brand	MSD
Ignition Box Output	Capacitive Discharge
Circuitry	Analog

GENERAL
Rev Limiter Included	Yes
Data Acquisition	No
Timing Retard	None
Coil Included	No
Primary Voltage	570 Volts output to coil
Spark Output	160 MJ
Voltage Required	12-18 Volts
Current Draw	1 amp per 1000 RPM
GTIN Code	085132722235
Overall Length	8.25"
Overall Width	3.75"
Overall Height	5.75"
Color	Black
Notes	Not for use with distributorless ignition systems.
