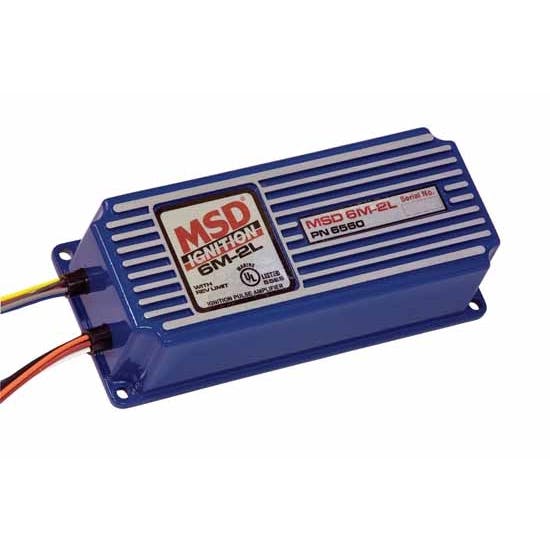

MSD 6560 MSD 6M-2L Marine Certified Ignition with Rev Limit

-5%

#5476560

MSD 6560 MSD 6M-2L Marine Certified Ignition with Rev Limit

Engineered for performance marine applications where a high energy and reliable ignition is a necessity
The special design of the MSD produces full power sparks throughout your boats entire rpm range
Aa series of multiple sparks burn in the cylinder for 20° of crankshaft rotation ensuring complete combustion below 3,000 rpm.

$599.95

/each

In Stock

$633.95

Save $34.00

Order soon, only 2 left in stock!

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Capacitive Discharge Ignition Box Output, Blue

Engineered for performance marine applications where a high energy and reliable ignition is a necessity
The special design of the MSD produces full power sparks throughout your boats entire rpm range
Aa series of multiple sparks burn in the cylinder for 20° of crankshaft rotation ensuring complete combustion below 3,000 rpm.
All those features will give you great throttle response, more power and reduced plug fouling during idling
Features watertight connectors that securely lock together to provide reliable connections that are unaffected by water, oil, gasoline and most other chemicals associated with boats

See more details

Key Specs

MFG. Part #	6560
Brand	MSD
Ignition Box Output	Capacitive Discharge
Circuitry	Analog

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

MSD 6560 Details

The MSD 6M-2L Ignition Control is designed for performance marine applications where a high energy and reliable ignition is a necessity. The capacitive discharge (CD) design of the MSD produces full power sparks throughout your boats entire rpm range. Below 3,000 rpm, a series of multiple sparks burn in the cylinder for 20° of crankshaft rotation ensuring complete combustion. Together, these sparks produce easier starting, great throttle response, more power and reduced plug fouling during idling. Weathertight connectors securely lock together to provide reliable connections that are unaffected by water, oil, gasoline and most other chemicals associated with boats. The 6M-2Ls electrical circuitry from marine conditions, the entire unit is potted with a polyurethane compound. This material prevents the electrical components from coming into contact with water or other chemicals. The 6M-2L also features a built-in Soft Touch Rev Control that will save your engine from overrev damage. The rpm limit is set with sealed rpm modules (see below). The 6M-2L can be triggered by either a magnetic pickup (distributor or crank trigger), amplifier or by a breaker point distributor. The cable harness has the proper connector so you can plug the 6M-2L into one of the Pro-Billet MSD Marine distributors.

MSDs popular 6M-2 with a built-in rev-limiter
Multiple sparks improve starting, throttle response and idle quality
Circuitry is potted for a weather-proof housing
Weathertight connectors protect wiring from water and chemicals
105-115 mJ/spark
45,000 Volts
20 degree Crankshaft Rotation
15,000 RPM with 14.4 Volts
12-18 Volts, Negative Ground
1 Amp Per 1,000 RPM
3.5 lbs.,8"L x 3.5"W x 2.25"H

Charts

Installation Instructions (PDF)

Guides & Documents

Electronic Ignition Systems Installation Instructions (5476560)

CARB Warning

For race/ off road use or for use on pre-1966 vehicles.

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway, or if installed in vehicles model-year 1965 or older; motorcycles model-year 1977 or older; or off-highway recreational vehicles (such as off-road motorcycles and all-terrain vehicles) model-year 1996 and older. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

CARB warning

MSD 6560 Specifications

KEY SPECS
MFG. Part #	6560
Brand	MSD
Ignition Box Output	Capacitive Discharge
Circuitry	Analog

GENERAL
Rev Limiter Included	Yes
Data Acquisition	No
Timing Retard	None
Coil Included	No
GTIN Code	085132065608
Color	Blue

Ratings & Reviews

Be the first to write a review.

Questions & Answers

1 Question • 1 Answer

Sort Questions

we have one now but don't have the schmectics as to how to hook it up,plese tell me how.

by arch

• 11 years ago

1 answer

View Answer

1 of 1 questions shown
