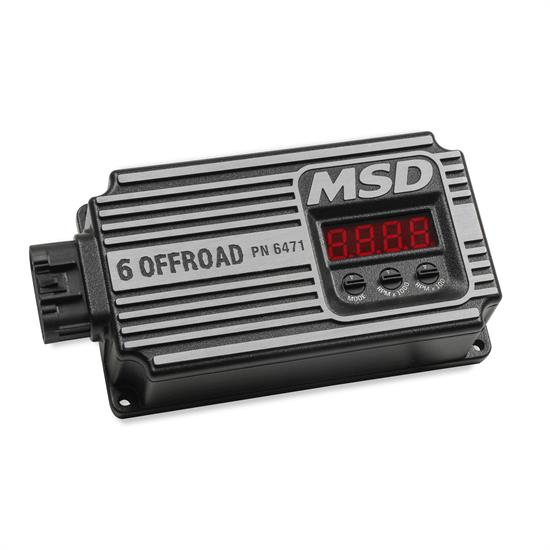

MSD 6471 Digital 6 Offroad Ignition

Name: MSD 6471 Digital 6 Offroad Ignition
Brand: MSD
SKU: 5476471
Price: 599.95 USD
Availability: InStock

Write a Review

Ask a Question

$599.95

/each

Factory Shipped

$633.95

Save $34.00

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Key Specs

MFG. Part #	6471
Brand	MSD

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

MSD 6471 Details

If you're crawling rocks, high speed desert racing, or playing in any kind of harsh terrain in your offroad rig, the MSD 6 Offorad ignition is a must. Its fully potted design provides the ruggedness and reliability needed to get your 4WD to any destination.The 6 Offroad multi-sparks below 3,000 RPM on V8's ensuring clean, crisp throttle response and complete fuel burn when crawling at low speeds. Above 3,000 RPM a powerful capacitive discharge spark keeps the fire lit until you let off the skinny pedal. A smooth, accurate rev-limiter will protect your engine from over-rev damage due to drivetrain failure or a slick spot on the trail. An easy to read LED display on the face of the unit clearly displays the rev-limit RPM. The display, in conjunction with rotary dials, is used to set the rev-limit, cylinder select, and even a timing start retard for race engines. The handy display can also show a live tach reading and even battery voltage with the quick turn of a knob.

MSD’s smoothest rev limiter yet! Easy on your engine
Fully potted design provides reliability even in high vibration and wet circumstances
Large, easy to read LED display
Simple setup of features such as the rev limiter with three rotary dials on the face of the unit
Built-in Start Retard adjustable in 0?, 10? or 20? increments for quick, easy starts and extend starter life
LED displays rev limit, highest RMP turned, cylinder select, start retard, battery voltage and can be set to tach mode
Full delivery of spark energy down to 6 volts battery supply
Highly efficient, low current draw for extended battery life
Rugged housing to stand up to demanding offroad and race conditions
Single plug-in connector for clean wiring
Works on 4, 6 and 8 cylinder engines
Reverse polarity and overheat protection provide ultimate reliability

Charts

Installation Instructions (PDF)

Guides & Documents

Electronic Ignition Systems Installation Instructions (5476471)

CARB Warning

For race/ off road use or for use on pre-1966 vehicles.

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway, or if installed in vehicles model-year 1965 or older; motorcycles model-year 1977 or older; or off-highway recreational vehicles (such as off-road motorcycles and all-terrain vehicles) model-year 1996 and older. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

CARB warning

MSD 6471 Specifications

KEY SPECS
MFG. Part #	6471
Brand	MSD

GENERAL
GTIN Code	085132064717
