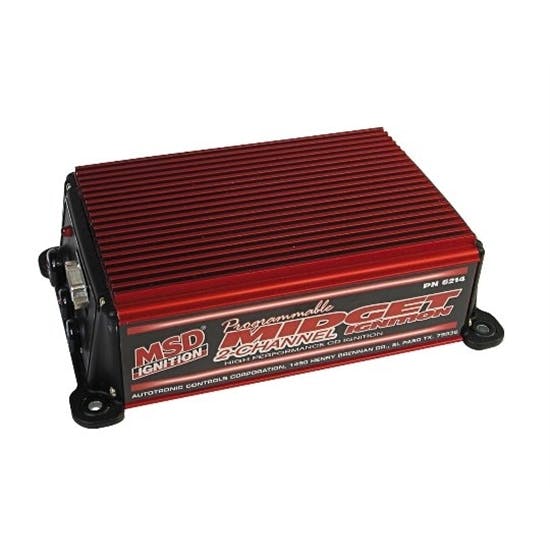

Capacitive Discharge Ignition Box Output, Red

  • You are able to program a start retard to ease cranking
  • Has two non-magnetic pick-ups with a trigger wheel as a trigger source
  • Features two timing curves ranging from 800-15,000 RPM in 0.1° increments
  • Able to switch between two timing curves as track conditions change during a race
  • A battery monitor circuit shows real time battery voltage and a low voltage time percentage

Key Specs

BrandMSD
Ignition Box OutputCapacitive Discharge
Rev Limiter IncludedYes
CircuitryDigital
Data AcquisitionNo

Need To Know

This Product Will Ship Free

Quick and Easy Returns

Details

The programmable midget cd ignition is a complete electronic distributorless system consisting of a powerful capacitive discharge ignition control, a four tower high output coil pack and uses two non-magnetic pick-ups with a trigger wheel as a trigger source. This takes all of the mechanical variables out of the picture to produce exact ignition timing.
  • Plot two timing curves ranging from 800-15,000 RPM in 0.1° increments
  • Program a start retart to ease cranking
  • A battery monitor circuit shows real time battery voltage and a low voltage time percentage
  • Switch between two timing curves as track conditions change during a race

The midget ignition is supplied with the cd ignition control, two non-magnetic pick-ups, on/off switch and software. Trigger magnet is sold separately.



Charts

Warranties

For warranty information, please visit http://www.msdhelp.com/

CARB Warning

For race/ off road use only

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

Specifications

KEY SPECS
BrandMSD
Ignition Box OutputCapacitive Discharge
Rev Limiter IncludedYes
CircuitryDigital
Data AcquisitionNo
GENERAL
Timing RetardOne-stage
Coil IncludedNo
Primary Voltage490-505 Volts output to coil
Spark Output190 MJ
Voltage Required9-18 Volts
Current Draw0.8 Amp per 1000 RPM
GTIN Code085132062140
Overall Length6.50"
Overall Width4.50"
Overall Height2.25"
ColorRed
