Product Summary

Chevy Small Block V8, Chevy Big Block V8

    Key Specs

    MFG. Part #601513

    Need To Know

    This Product Will Ship Free

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

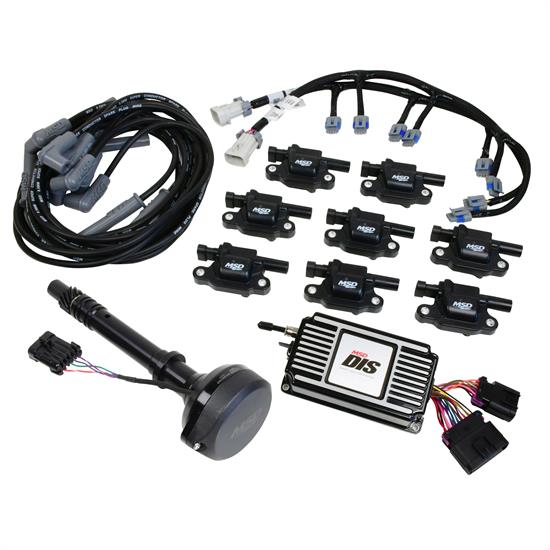

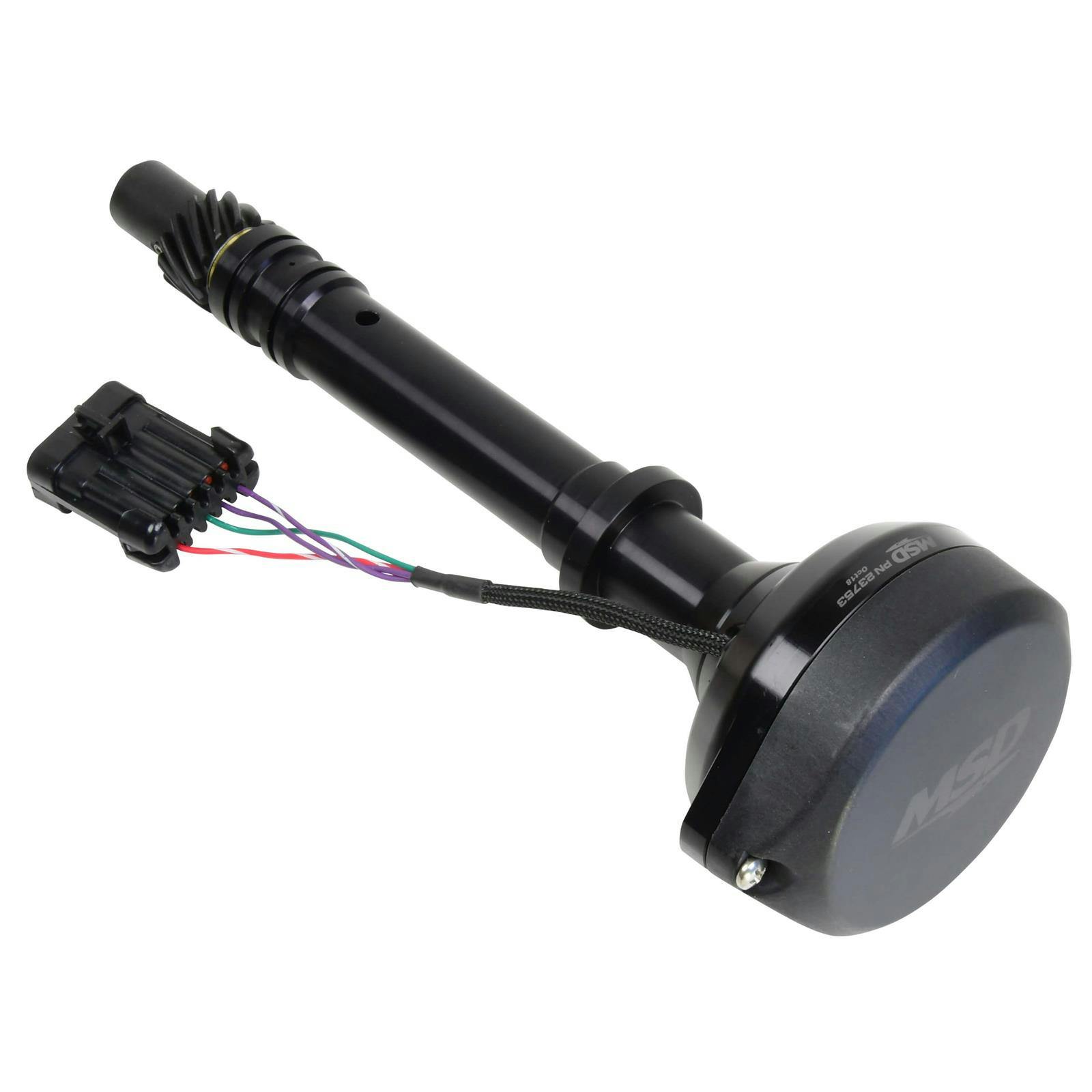

    MSD 601513 Details

    The MSD Direct Ignition System (DIS) controller greatly simplifies the conversion of conventional distributor-type engines to a Coil-Per-Plug configuration. Benefits include the elimination of distributor cap and rotor wear, reduced spark energy losses caused by long spark plug wires, and the ability to optimize your ignition tuning parameters. The integral 2.5 Bar MAP Sensor, and optional temperature sensor input, mean you get the most power and reliability out of your Naturally Aspirated or Forced Induction engine combination. Nitrous-fed engines benefit from the included Step Retard feature. Drag racers will appreciate the 2-Step Rev Limiter and Launch Retard features. Real-time DIS configuration and tune-up changes are a snap with easy-to-use MSDView software.Thanks to the real-time monitor feature of MSDView, and 8 MB of internal data storage in the DIS controller, data monitoring and logging have never been easier. The clearly labeled wiring harness, along with a full line of supporting components and accessories, take the difficulty and guesswork out of converting traditional distributor-type engines to a modern and efficient Coil-Per-Plug ignition system.
    • Easily convert to a Coil-Per-Plug ignition system
    • Preprogrammed timing maps
    • Fully Programmable 2D and 3D Timing maps provide complete timing control
    • Individual Cylinder Timing (ICT) allows precise tuning
    • Built-in 2.5 bar Manifold Absolute Pressure (MAP) sensor for boosted applications
    • Optional temperature sensor input to control timing based on temperature
    • Fully potted electronics and sealed connectors for maximum durability
    • Easily programmable through a Mini-USB communication port
    • Programmable Max Rev and Launch RPM limiters provide engine protection
    • Consistent holeshots thanks to a Programmable Launch Timing Retard
    • Single Timing Step Retard ideal for pulling timing for nitrous applications
    • On-Board Data Acquisition
    • Kits available for Chevy and Ford V8 applications with more to come


    CARB Warning

    For race/ off road use or for use on pre-1966 vehicles.

    Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway, or if installed in vehicles model-year 1965 or older; motorcycles model-year 1977 or older; or off-highway recreational vehicles (such as off-road motorcycles and all-terrain vehicles) model-year 1996 and older. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

    MSD 601513 Specifications

    MFG. Part #601513
    GTIN Code085132015139
