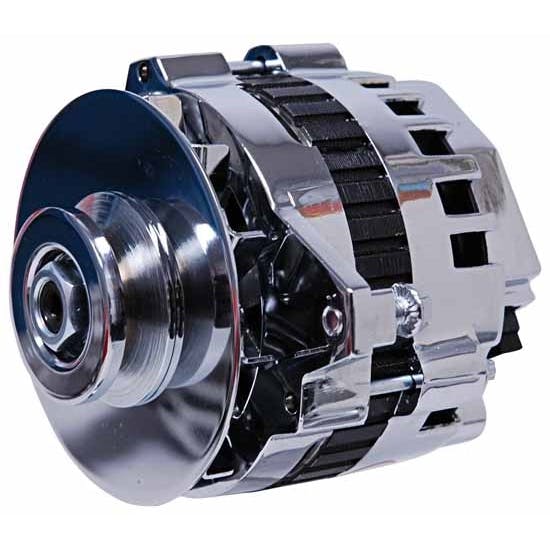

MSD 5362 5362 - Dynaforce Alternator 160 AMP Chrome

Name: MSD 5362 5362 - Dynaforce Alternator 160 AMP Chrome
Brand: MSD
SKU: 5475362
Price: 599.95 USD
Availability: InStock

Write a Review

Ask a Question

$599.95

/each

Factory Shipped

$655.95

Save $56.00

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, One Wire Alternator, Internal Regulator

See more details

Key Specs

MFG. Part #	5362
One Wire Alternator	Yes
Alternator Amperage	160 amp
Alternator Finish	Chrome
Pulley Style	V-belt

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

MSD 5362 Details

Whether you need a high output alternator to power your muscle car, street rod or touring machine, MSD has you covered with the DynaForce Alternator. For the street, MSD offers a 120 or 160 amp one-wire alternator. Not only are they designed for extreme output at higher rpm, but MSD balances the current output to keep your electronic components up to speed during idle and lower rpm operation as well. Both the 120 and 160 Amp alternators feature one-wire installation to keep things clean, easy and effective. The charge post of the alternators is moved to the side of the housing to allow for improved clearance to the block, plus a pulley baffle is included to ensure there is never any fan-to-belt issues (common at high rpm on lesser alternators). The housings are available in four finishes including a natural cast for stock looks, a show quality chrome, black for subtle appearance and a great new satin finish for a smooth finish.

Installation Instructions (PDF)

Designed for maximum output from idle to high rpm
Stator and rotor are electrically balanced for optimum performance
Dual plane balanced rotor assembly delivers high rpm precision and reliability
Hand assembled in the USA and NEVER rebuilt or refurbished units
Every unit is delivered with a proof of performance
Blue-printed assembly process ensures superior operation and longevity
One wire installation with added fan baffle for belt protection

Guides & Documents

Selecting the Right Wire Size for Automotive Alternator to Battery Applications

Alternators Installation Instructions (5475362)

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

CARB warning

MSD 5362 Specifications

KEY SPECS
MFG. Part #	5362
Brand	MSD
One Wire Alternator	Yes
Alternator Amperage	160 amp
Alternator Finish	Chrome
Pulley Style	V-belt
Belt Type	V-Belt

GENERAL
Alternator Case Style	GM CS130
Voltage Required	12-Volt
Regulator	Internal
Regulator Style	Internal
Regulator Included	Yes
Alternator Pulley Included	Yes
Alternator Brackets Included	No
Color	Chrome
Sold in Quantity	Each
Notes	This is a center offset alternator. Fits standard universal brackets.
GTIN Code	085132053629
Belt Included	No
Coating Type	Plated
