#5475098

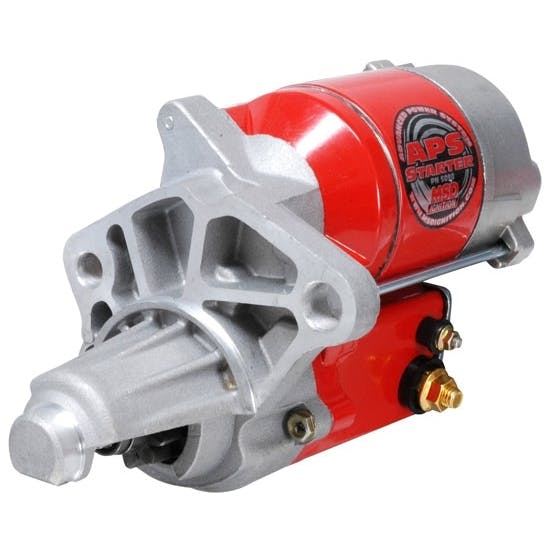

MSD 5098 DynaForce Mopar Starter, 318-440
- Specially designed to crank over the highest compression engines
- Features all new components beginning with a three horsepower motor
- Can crank over the reduced 4.4:1 gear set to deliver great torque to the engine’s ring gear to get the engine turning
See More
$369.95
each
On Backorder
This part is Backordered. We currently do not have an estimate when this item will ship.
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Chrysler Big Block V8, Chrysler Small Block V8
- Specially designed to crank over the highest compression engines
- Features all new components beginning with a three horsepower motor
- Can crank over the reduced 4.4:1 gear set to deliver great torque to the engine’s ring gear to get the engine turning
- The armature is balanced during assembly and is guided by two ball bearings for smooth engagement and thousands of starts
- A downsized housing will clear most headers and oil pans
See more details
Key Specs
| MFG. Part # | 5098 |
| Brand | MSD |
| Starter Size | Mini |
| Finish | Powder Coated |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyMSD 5098 Details
MSD 5098 Details
The new DynaForce Starter is designed to crank over the highest compression engines on a hot day in Death Valley. Not that too many race cars are sitting in Death Valley, but it’s good to know that you have the oomph to make it happen. The DynaForce Starter features all new components beginning with a three horsepower motor. This power is used to crank over the reduced 4.4:1 gear set to deliver great torque to the engine’s ring gear to get the engine turning. The armature is balanced during assembly and is guided by two ball bearings for smooth engagement and thousands of starts. The downsized housing clears most headers and oil pans. The assembly is powder coated MSD red and will stay looking good, even though it’s underneath your car.
The Chrysler version is a compact replacement for everything from small blocks to 440 engines.
- Gear reduction of 4.4:1
- 3 horsepower motor
- Ball bearing supported armature and pinion gear
- Downsized design helps clearance issues with oil pans and exhaust
Charts
547-5098 Instructions (pdf)
Warranties
Guides & Documents
MSD 5098 Specifications
MSD 5098 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 5098 |
| Brand | MSD |
| Starter Size | Mini |
| Finish | Powder Coated |
| GENERAL | |
| Transmission Type | Automatic and Manual |
| Starter Output (kW/hp) | 2.54 kW / 3.4 hp |
| Material Type | Billet Aluminum |
| Color | Red |
| Clockable | Yes |
| Gear Rotation | Standard |
| Gear Ratio | 4.40:1 |
| Compression Ratio | 18.0:1 |
| Starter Style | Hitachi |
| Sold in Quantity | Each |
| GTIN Code | 085132050987 |
