MSD 5090 DynaForce Small Block Ford Starter, 289-351W, A/T

-7%

#5475090

MSD 5090 DynaForce Small Block Ford Starter, 289-351W, A/T

Name: MSD 5090 DynaForce Small Block Ford Starter, 289-351W, A/T
Brand: MSD
SKU: 5475090
Price: 507.95 USD
Availability: InStock
Rating: 4 (1 reviews)

1 Review

5 Questions

Specifically designed for the 289-351W Small Block Ford engine
Has a gear reduction of 4.4:1 improves torque for great cranking
The three horsepower motor provides ample power for high compression engines

Color:

Red

Black

$507.95

/each

In Stock

$550.95

Save $43.00

Quantity

Need Help? Call to Order

Add to a list

Select an engine to verify Fitment

Select Engine

Product Summary

Automatic and Manual Transmission Type, Powder Coated

Specifically designed for the 289-351W Small Block Ford engine
Has a gear reduction of 4.4:1 improves torque for great cranking
The three horsepower motor provides ample power for high compression engines
Features a ball bearing supported armature and pinion gear
A downsized design helps clearance issues with oil pans and exhaust

See more details

Key Specs

MFG. Part #	5090
Starter Size	Mini
Flywheel/Flexplate Tooth Count	157-tooth/164-tooth
Mount Type	Bolt-On
Finish	Powder Coated

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Installation Details

Starters and Starter Motors Installation Instructions (5475090)

Installation Tips

NOTE: This starter cannot be used on any 3 and 4-speed applications. Early model 3 and 4-speed manual transmission flywheels are closer to the starter mount surface (3/8") and will prevent the starter gear from separating from the flywheel.

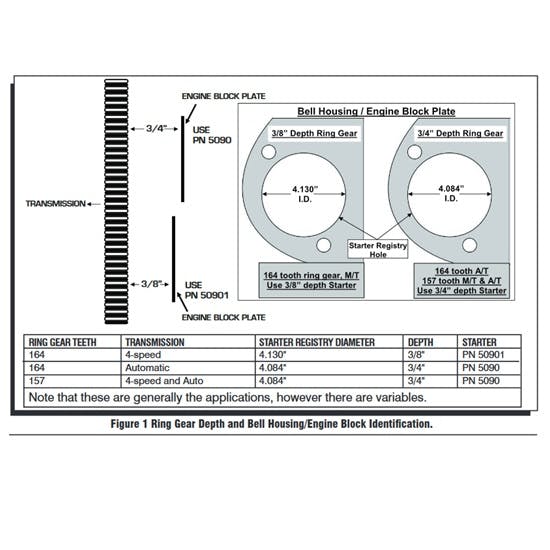

When selecting a starter for your Ford, research has found that year, model and drivetrain combination do not always dictate the correct starter. There are variations between the 164 tooth and 157 tooth flywheels as well as the inside diameter of the starter block plate (4.130" or 4.084"). MSD offers two starters for the 289/302 and 351W engines; one with a 3/8" depth ring gear and one with a 3/4" depth.

3/4" depth # 547-5090
3/8" depth # 547-50901

MSD 5090 Details

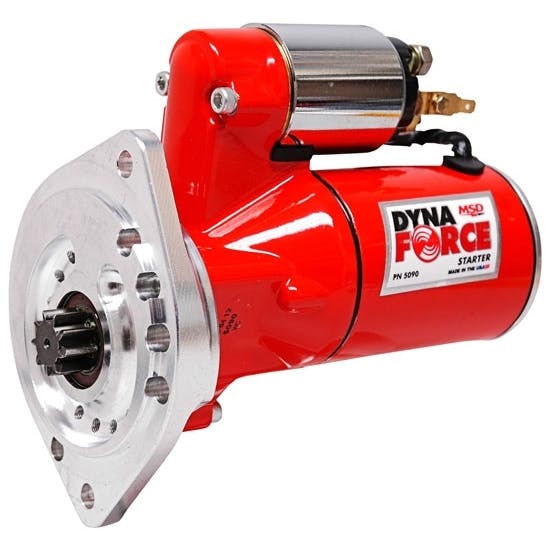

The new DynaForce Starter is designed to crank over the highest compression engines on a hot day in Death Valley. Not that too many race cars are sitting in Death Valley, but it’s good to know that you have the oomph to make it happen. The DynaForce Starter features all new components beginning with a three horsepower motor. This power is used to crank over the reduced 4.4:1 gear set to deliver great torque to the engine’s ring gear to get the engine turning. The armature is balanced during assembly and is guided by two ball bearings for smooth engagement and thousands of starts. The downsized housing clears most headers and oil pans, but just in case, we made the billet mount so it can be clocked in different positions to help in tight applications. The assembly is powder coated MSD red and will stay looking good, even though it’s underneath your car.

Fits Small Block Ford 289, 302, 351W, and 5.0L with automatic transmission or 5-speed manual transmission.

Gear reduction of 4.4:1 improves torque for great cranking
Three horsepower motor provides power for high compression engines
Ball bearing supported armature and pinion gear
Downsized design helps clearance issues with oil pans and exhaust
Mount can be clocked to assist in mounting

Charts

547-5090 Instructions (PDF)

Specs

The starter is 7 5/8" from the bolt mounting surface, measuring to the lip coming off of that surface the overall length is 7 3/4." Also, the overall height is 7 3/4" from the edge of the mounting surface to the top of the solenoid.

Guides & Documents

Starters and Starter Motors Installation Instructions (5475090)

Warranty Information

http://www.msdhelp.com/

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

MSD 5090 Specifications

KEY SPECS
MFG. Part #	5090
Brand	MSD
Starter Size	Mini
Flywheel/Flexplate Tooth Count	157-tooth/164-tooth
Mount Type	Bolt-On
Finish	Powder Coated

GENERAL
Sold in Quantity	Each
GTIN Code	085132050901
Notes	3/4" depth application
Transmission Type	Automatic and Manual
Starter Output (kW/hp)	2.54 kW / 3.4 hp
Material Type	Billet Aluminum
Color	Red
Clockable	Yes
Gear Rotation	Standard
Gear Ratio	4.40:1
Compression Ratio	18.0:1
Starter Style	Ford 2-bolt

Ratings & Reviews

1 Review

Write A Review

1 reviews

Filter by Ratings

Sort Reviews

I would buy this product again.

4.0

9 years ago

JimmyR

Brigham City, Utah

Verified

It was an easy install on my Dart block Windsor with C4 auto and 164 tooth Flex Plate. I haven't fired the motor yet on this 34 ford street rod project so I can't comment on the starter's performance.

Would Recommend

Showing 1 of 1 reviews

Questions & Answers

5 Questions • 5 Answers

Sort Questions

Will this starter fit a 1990 Ford Mustang 5.0 HO? Thankyou

by JJ

• 7 years ago

1 answer

View Answer

will this fit a 351M with a c6 transmission

by Jonathan

• 9 years ago

1 answer

View Answer

Will this starter fit the smaller 141 tooth flexplate , small c4 bellhousing found in the Mustang ii?

by Pete

• 9 years ago

1 answer

View Answer

does this starter,MSD 5090, require a firewall solenoid ? Is there a starter for the small block Ford, after market, that doesn't require a fenderwell solenoid?

by jayd

• 12 years ago

1 answer

View Answer

What is the overall length measurement. Mounting surface to end of starter body?

by Pat

• 15 years ago

1 answer

View Answer
