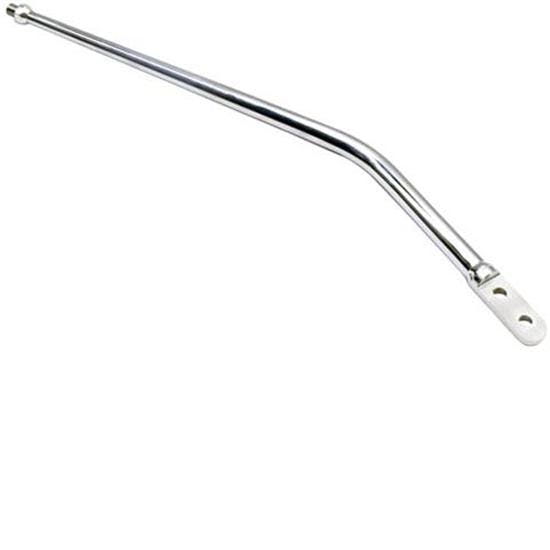

Lokar MSL6B Single Bend Shift Lever, 16 Inch
3 Reviews
|
Ask a Question
- Lever consists of a shift handle and mount bolts
- 16" in length and features a single bend
- Made to fit 7/8" center to center mounting holes
See More
$168.95
each
In Stock
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, 16" Shifter Arm Length, Chrome
- Lever consists of a shift handle and mount bolts
- 16" in length and features a single bend
- Made to fit 7/8" center to center mounting holes
- It has a 3/8"-24 thread for the shifter knobs
- Shouldered area at bottom is 2.01 or 2” tall and .760 or approximately 3/4” O.D.
See more details
Key Specs
| MFG. Part # | MSL6B |
| Brand | Lokar |
| Shifter Arm Length | 16" |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyLokar MSL6B Details
Lokar MSL6B Details

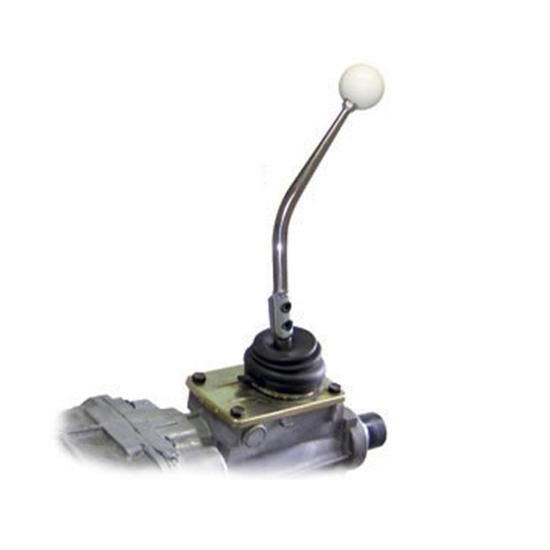

If you went to the junk yard to get that modern manual transmission, you probably didn't get the shifter lever. We have just what you need for that T5, T45, or T56 transmission.
Lever consists of a shift handle and mount bolts only, it does not include a boot, linkage or knob. Lever is for 7/8" center to center mounting holes and has 3/8"-24 thread for the shifter knobs.
Lever consists of a shift handle and mount bolts only, it does not include a boot, linkage or knob. Lever is for 7/8" center to center mounting holes and has 3/8"-24 thread for the shifter knobs.
Specs
- Threaded top for knob attachment is .373 or 3/8” x 24 threads per inch
- 2 mounting holes on bottom are .879 or 7/8” center to center

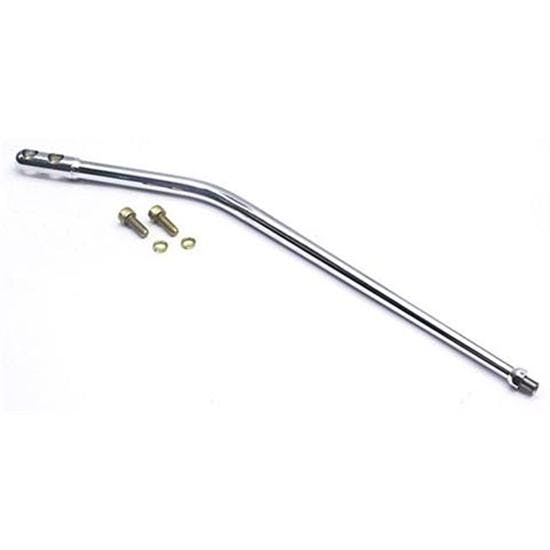

- Attachment bolts included are 5/16 allen head cap screws
- Shouldered area at bottom is 2.01 or 2” tall and .760 or approximately 3/4” O.D.
- O.D. at bottom above shouldered area is .627 or 5/8”
- O.D. at top below lock nut is .386 or 3/8”
- Overall length from bottom to top is 14”
- Length from center of top mounting hole to center of bend is 5”
- From center of bend to end of threads on top is 7-1/2”
Lokar MSL6B Specifications
Lokar MSL6B Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | MSL6B |
| Brand | Lokar |
| Shifter Arm Length | 16" |
| GENERAL | |
| Speedway Motors Catalog Part # | 491-8000 |
| Number of Bends | Single Bend |
| Hardware Included | No |
| Finish | Chrome |
| Arm Length | 16" |
| Neutral Safety Switch Included | Yes |
| Sold in Quantity | Each |
| GTIN Code | 835573007190 |
| Accomodates Stock Knob | No |
| Backup Light Switch Included | No |
| Boot Included | No |
| Factory Console Mount | No |
| Reverse Lockout | Yes |
