LS1 EFI Fuel Pump And Regulator/Filter Kit
LS1 EFI Fuel Pump And Regulator/Filter Kit
LS1 Chevy LS V8, -6 AN, EFI Fuel System Type, Fuel Pressure Regulator Included
In Stock
Ships FREE
Select Vehicle
LS1 EFI Fuel Pump And Regulator/Filter Kit
X
Part # 91012805
$199.49
kit
Add to Buildlist
Compare
Details
What's In The Kit
Reviews
Q&A
Videos & Articles
- Budget friendly inline fuel delivery kit perfect for an LS swap
- Features a high quality 255 lph MSD fuel pump capable of 43 gph @ 40 psi or 39 gph at 80 psi
- All in one filter/regulator is fixed at 58 psi
- Return port fixed on filter/regulator offering a shorter return line to the fuel tank
- Includes adapters to AN6 for filter/regulator and hose nipples for 3/8" inlet and 5/16" outlet on fuel pump
Build Your Kit
You're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.Next
Details
MFG. Part #:
91012805
Sold in Quantity:
Kit
AN Size:
-6 AN
Fuel System Type:
EFI
Fuel Filter Included:
Yes
Hoses Included:
No
Fuel Pressure Regulator Included:
Yes
Info
To make your LS1 transplant a little less painful, we put together these kits for you. If you already have a fuel pump in the tank, use the filter/regulator kit 910-12800.
This kit includes a high pressure 255lph MSD in-line pump capable of 43 gph @ 40 psi or 39 gph @ 80 psi, a filter/regulator assembly, and all necessary fittings (including fuel rail fitting and hard-to-find -6 AN female to 5/16" hose barb fitting). Pump draws only 5.4 amps and supports up to 500 horsepower. Pump features 3/8" hose barb inlet and 5/16" barb outlet.
Hose and additional fittings sold separately. MSD pump requires the use of 5/16" high pressure rubber hose with appropriate fuel injection hose clamps for the pressure side of the pump. New Vapor Guard hose, fittings and clamps shown below are now available for your one stop shop and to help make this install a snap.
Notes
The inlet side of the filter/regulator is the end with the (2) male port tubes. The larger 3/8" tube is the pressure inlet from the pump. The smaller 5/16" tube is the return to the tank. The female side of the filter/regulator utilizes the male 'snap' in fitting. This is the outlet side of the filter for the line to the fuel rail of the engine.Specs
- Principal Application: Chevrolet Corvette ('99-'04)
- Filter Style: Fuel (Complete In-Line) Filter
- Filter Service: Fuel
- Filter Type: Full Flow
- Filter Media: Paper
- Filter Height: 5.755"
- Filter Outer Diameter Top: 2.230"
- Nominal Micron Rating: 5
- Regulated Pressure: 58 psi (fixed, non-adjustable)
- Pump Flow @ 40 psi: 43 gph (282 lb/hr) gasoline
- Pump Flow @ 80 psi: 39 gph gasoline
- Pump Operation: 12 volts/5.4 amps
- Pump Inlet: 3/8" hose nipple
- Pump Outlet: 5/16" hose nipple
- Includes 2 cushioned mounting clamps and 4 mounting bolts
Important Messages
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations
Related Products
-
Earls 750055ERL Vapor Guard EFI 5/16 Inch Hose Bulk/Ft$4.99 -
Earls 750005ERL Vapor Guard Screw Type 5/16 Inch Hose Clamp 5/Pk$7.97
What's In The Kit
Each kit from Speedway Motors is carefully packaged and delivered right to your door. Below is a list of all the items you should expect to receive when you order this kit. Some of these items may also be available for sale individually if you're here looking for replacement parts.
-

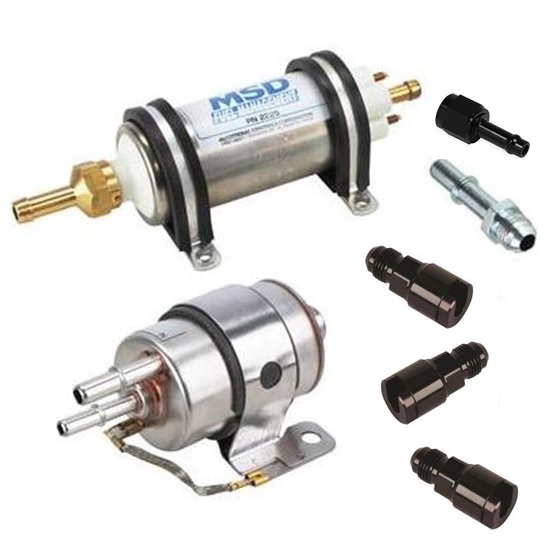

MSD 2225 In-Line Hi-Pressure Fuel PumpPart # 5472225Qty x 1
-
LS1 Fuel Filter/Fuel Regulator OnlyPart # 91012807Qty x 1
-
AN6 to 3/8 Inch EFI LS1/LT1 Fuel Line Adapter FittingPart # 61764940Qty x 1
-
Earls 750156ERL Vapor Guard Straight Hose End -6 to 5/16 InchPart # 425750156ERLQty x 1
-
LS1/LT1 EFI Fuel Line Fitting, -6 AN Male to 3/8 Inch Female, BlackPart # 61744123Qty x 2
-
LS1/LT1 EFI Fuel Line Fitting, -6 AN Male to 5/16 Inch Female, BlackPart # 61744113Qty x 1
