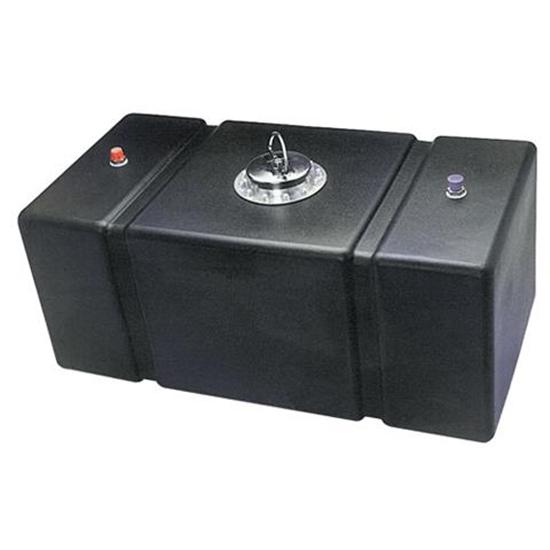

JAZ Products 200-008-NF Polyethylene Fuel Cell, 8 Gallon
Universal Fit, 8 gallons Capacity, 20" Overall Length, 8.25" Overall Height, 15" Overall Width
- Has 360 degree mounting strap recesses
- Measures 20" long, 8.25" tall, and 15" wide
- Has a 100% seamless polyethylene construction
- Cells are NHRA, IHRA, SCORE, and DIRT approved
- Features one -8 AN pick-up fitting and one -8 AN vent/tip-over valve fitting
These polyethylene fuel cells are the best cells on the market! This 100% seamless polyethylene cell features one -8 AN pick-up fitting and one -8 AN vent/tip-over valve fitting. These fuel cells contain a pickup tube. All cells are NHRA, IHRA, SCORE, and DIRT approved.
- Seamless cross-linked polyethylene outer shell
- D-ring bail handle cap assembly
- 360 degree mouting strap recesses
- Does not include fuel cell safety foam
Note: To meet the IMCA Sport Compact rules regarding the 8 gallon fuel cells, fuel tank flapper valve 458-315 must be purchased and used in conjunction with the fuel cell shown here. Or purchase our 458-2080 with flapper valve already installed.
Item Details20" Long, 15" Wide, 8-1/4" Deep
NotesTech Tip: Carefully determine the size of fuel cell needed. Depending on the capacity, a full fuel cell will generally weigh between 100 and 200 lbs. Buy the optimum size fuel cell to best accommodate weight bias and fuel consumption.
