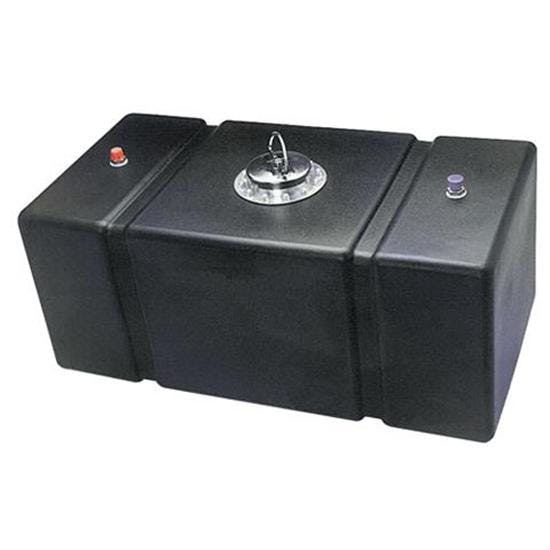

JAZ Products 200-012-NF Polyethylene Fuel Cell, 12 Gallon
JAZ Products 200-012-NF Polyethylene Fuel Cell, 12 Gallon

JAZ Products 200-012-NF Polyethylene Fuel Cell, 12 Gallon

Universal Fit, 12 gallons Capacity, 17.5" Overall Length, 10" Overall Height, 16" Overall Width

4 Reviews | 4 Answered Questions
In Stock
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Limited Qty
Select your vehicle to verify fitment.
Select Vehicle
JAZ Products 200-012-NF Polyethylene Fuel Cell, 12 Gallon
JAZ Products 200-012-NF Polyethylene Fuel Cell, 12 Gallon
JAZ Products 200-012-NF Polyethylene Fuel Cell, 12 Gallon
X
JAZ Products 200-012-NF Polyethylene Fuel Cell, 12 Gallon
Zoomed In Image
Part # 458112
$159.99
each
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles
  • Has a D-ring bail handle cap assembly
  • Measures 17-1/2" long, 16" wide, and 10" deep
  • They are NHRA, IHRA, SCORE, and DIRT approved
  • This polyethylene cell has a 100% seamless cell construction
  • Features one -8 AN pick-up fitting and one -8 AN vent/tip-over valve fitting

Details

Capacity:
12 gallons
Overall Length:
17.5"
Overall Height:
10"
Overall Width:
16"
Overall Length Range:
17.00" to 17.99"
Overall Height Range:
10.00" to 10.99"
Overall Width Range:
16.00" to 16.99"
Material Type:
Polyethylene
Finish:
Natural
Color:
Black
Outlet Fitting Quantity:
1
Outlet Fitting:
-8 AN
Return Fitting:
-8 AN
Fuel Cell Cap Style:
D-ring Bail Handle
Safety Foam Included:
No
Pickup Tube Included:
No
Sold in Quantity:
Each
Notes:
Foam Not Included
GTIN Code:
000200012001
MFG. Part #:
200-012-NF

Info

JAZ makes the best polyethylene fuel cells on the market! This 100% seamless polyethylene cell features one -8 AN pick-up fitting and one -8 AN vent/tip-over valve fitting. These fuel cells contain a pickup tube. All cells are NHRA, IHRA, SCORE, and DIRT approved.

  • Seamless cross-linked polyethylene outer shell
  • D-ring bail handle cap assembly
  • 360 degree mouting strap recesses
  • Does not include fuel cell safety foam

Item Details

17-1/2" Long, 16" Wide, 10" Deep

Notes

Tech Tip: Carefully determine the size of fuel cell needed. Depending on the capacity, a full fuel cell will generally weigh between 100 and 200 lbs. Buy the optimum size fuel cell to best accommodate weight bias and fuel consumption.

Important Messages

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations
