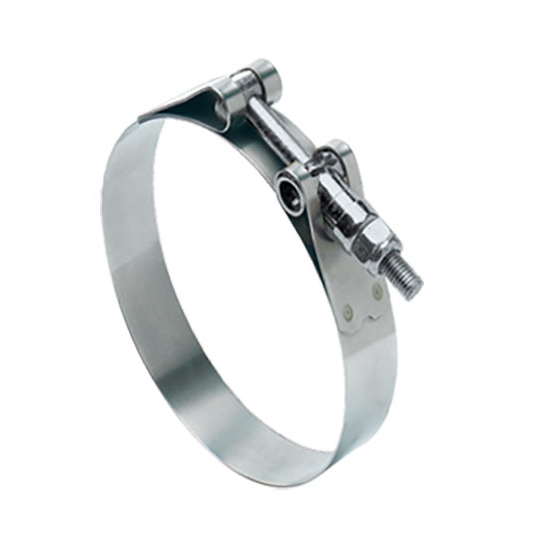

Ideal Heavy Duty T-Bolt Clamp, 2 Inch Minimum Clamping Diameter
Ideal Heavy Duty T-Bolt Clamp, 2 Inch Minimum Clamping Diameter
Ideal Clamps

|

#917200

Ideal Heavy Duty T-Bolt Clamp, 2 Inch Minimum Clamping Diameter

Minimum Clamp Diameter:

2 Inch

1-3/8 Inch1-3/4 Inch1-7/8 Inch2-1/8 Inch2-1/4 Inch2-3/8 Inch2-1/2 Inch2-5/8 Inch2-3/4 Inch

$8.89

/each

In Stock


Quantity

Need Help? Call to Order

Add to a list

Share

Product Summary

Universal Fit, T-Bolt Style, Steel, Natural, Natural

    See more details

    Key Specs

    MFG. Part #30010-0200
    StyleT-Bolt
    Material TypeSteel
    ColorNatural
    FinishNatural
    See more specs

    Need To Know

    Need help?

    855.313.9176
    View the Help Center

    Quick and Easy Returns

    Return Policy

    Ideal Clamps 30010-0200 Details

    Heavy duty T-Bolt clamps from Ideal Clamps provide uniform sealing pressure for a positive, reliable seal. Specifically designed for use in high vibration and large diameter applications. This is most widely used t-bolt design and it's typical applications include truck air intake systems, cold side charge air systems, off-road equipment and industrial machinery.
    • Minimum Clamping Diameter:2
    • Maximum Clamping Diameter: 2.31
    • T-Bolt: 1/4″ Plated Carbon Steel
    • Hex Nut: 7/16″ Plated Carbon Steel, Nylon Insert
    • Band: 3/4″, 300 Stainless
    • Bridge: 3/4″, 300 Stainless
    • Trunnion: Plated Carbon Steel
    • Installation Torque: 75 in-lbs (8.5 Nm)

    Ideal Clamps 30010-0200 Specifications

    KEY SPECS
    MFG. Part #30010-0200
    BrandIdeal Clamps
    StyleT-Bolt
    Material TypeSteel
    ColorNatural
    FinishNatural
    GENERAL
    Hose OD2"
    Maximum Clamping Diameter2.31"
    Minimum Clamping Diameter2"
    Grip Range2" to 2-5/16"
    Sold in QuantityEach
